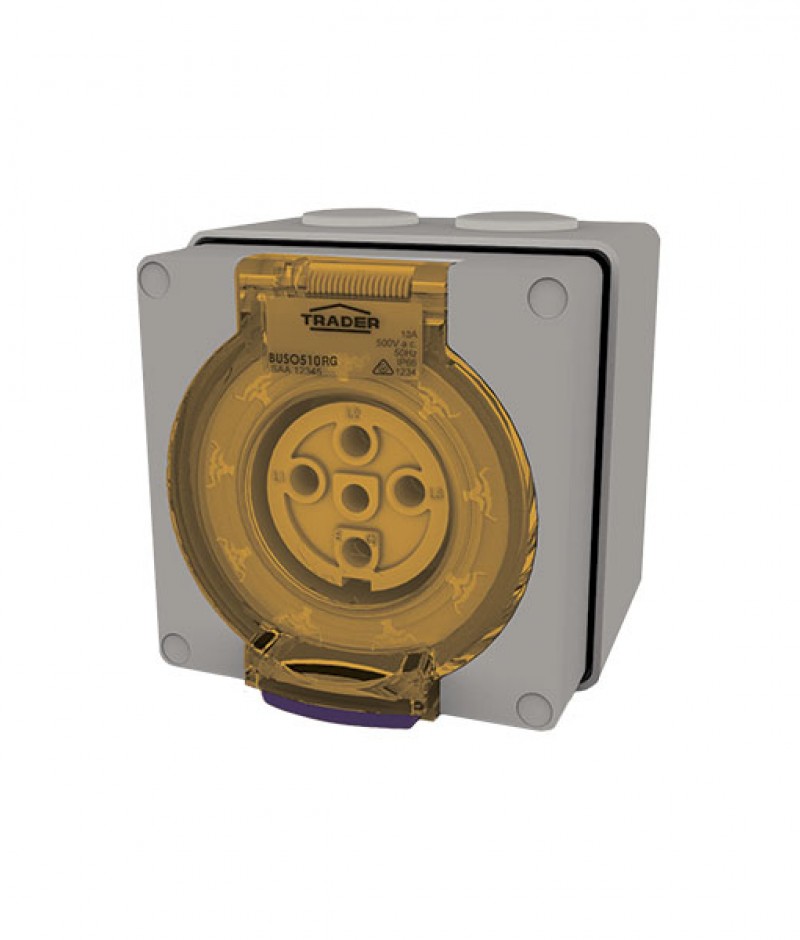

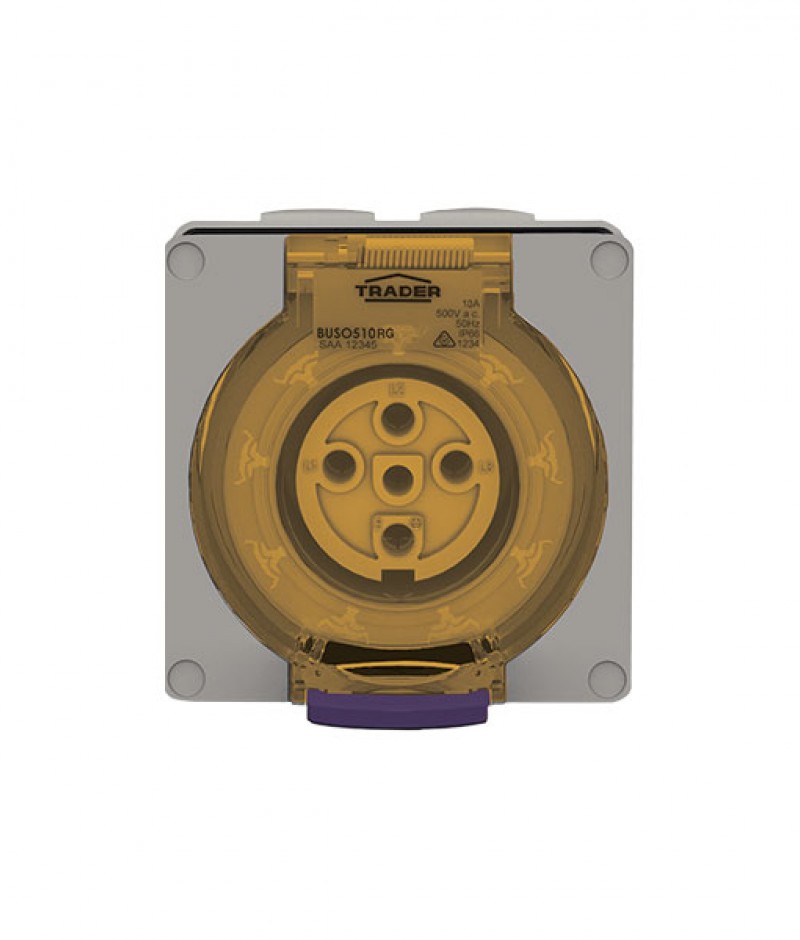

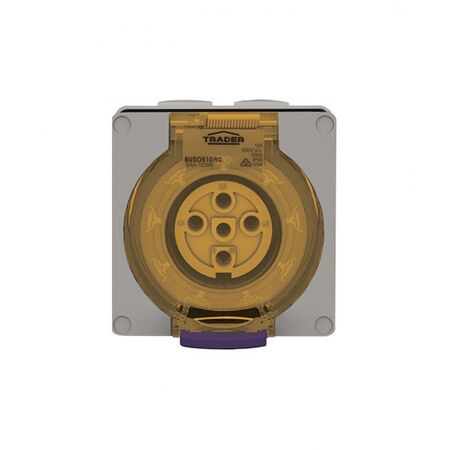

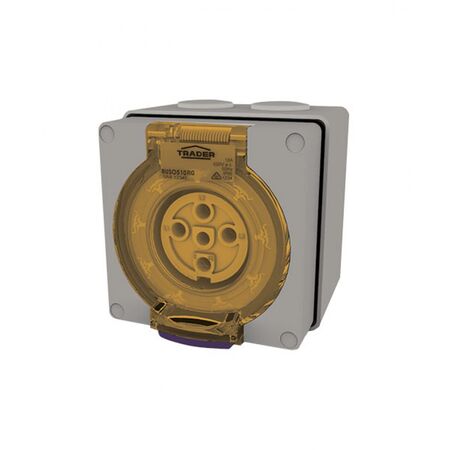

Socket Outlet IP66 10A 500V 5 Round Pin Buffalo Grey Trader
Trader socket outlet features IP66 weatherproof rating, 10A 500V capacity and 5 round pin chemical resistant build. Ideal for washdown and industrial areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: IP66 Switched Socket, Chemical Resistant Socket, Waterproof 5‑Pin Socket
Technical Specifications
- Current Rating: 10 A
- Voltage Rating: 500 V AC
- Number of Pins: 5 round pins
- Ingress Protection: IP66
- Material: Chemical‑resistant polycarbonate housing
- Operating Temperature: –25 °C to 75 °C (typical Buffalo range)

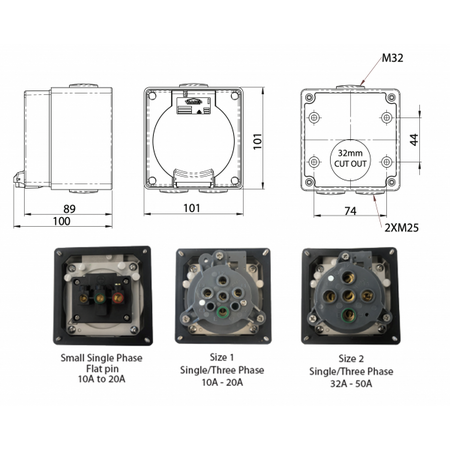

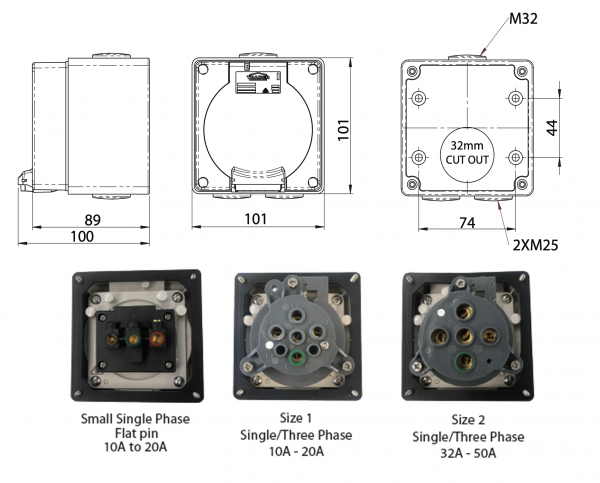

- Dimensions (H x L x W): 204mm x 108mm x 101mm
- Weight: 1.25 kg
Key Features
- IP66 weatherproof rating for dust and water ingress
- Chemical‑resistant construction suitable for wash‑down and harsh industrial areas
- Spring‑loaded transparent flap opens 180° to protect socket when not in use
- Threaded surround accepts plug lock‑rings for secure, sealed connections
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure correct connection and compliance with AS/NZS wiring rules.
Applications
- Industrial kitchens and wash‑down areas
- Chemical processing plants
- Outdoor construction and maintenance sites
- Industrial machinery supply points
Standards & Compliance
- Complies with AS/NZS 3123 for industrial plug and socket‑outlets
- Meets AS/NZS 60529 for IP66 ingress protection
Environmental Benefits
- Robust chemical‑resistant design extends lifespan, reducing waste from frequent replacements
Warranty Information
Standard Buffalo warranty — typically 18 months against manufacturing defects.
Available Now
Available through authorised Australian distributors.
