Trade Discount 25%

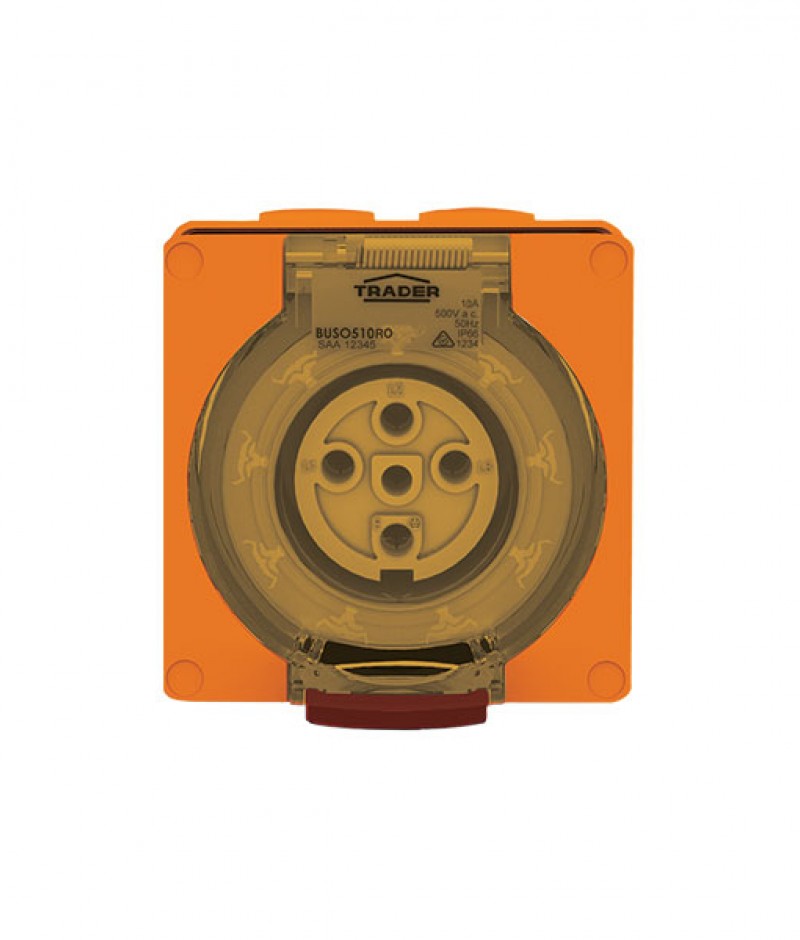

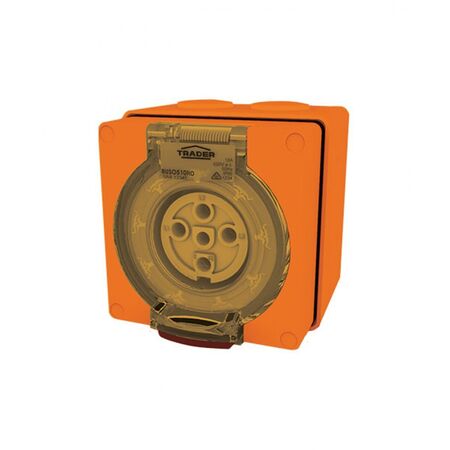

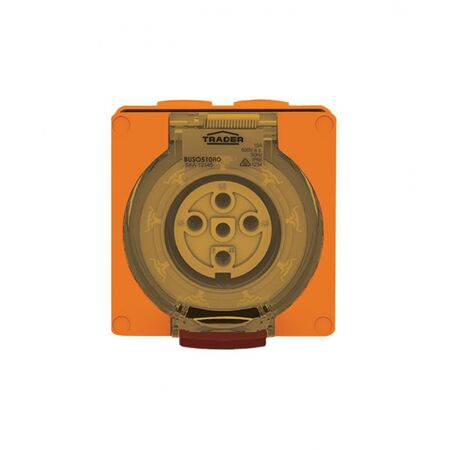

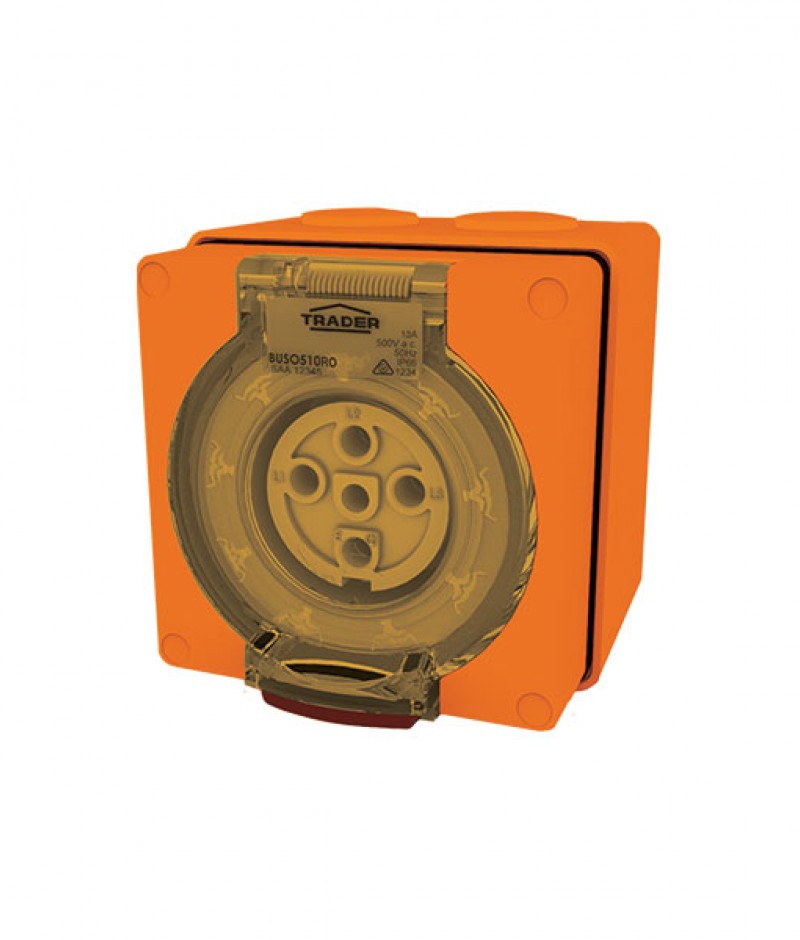

Socket Outlet IP66 10A 500V 5 Round Pin Buffalo Orange Trader
Trader socket outlet features IP66 weatherproof rating, 10A 500V capacity and 5 round pin chemical resistant build. Ideal for washdown and industrial areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Chemical Resistant Socket, Switched Power Outlet, Industrial Power Socket
Technical Specifications
- Rated Current: 10 A
- Rated Voltage: 500 V AC
- IP Rating: IP66
- Pin Configuration: 5‑round‑pin
- Housing Colour: Orange
- Material: Chemical‑resistant polycarbonate
- Operating Temperature: –25 °C to 75 °C
- Dimensions (H x L x W): 100mm x 80mm x 150mm
- Weight: 1.0 kg
Key Features
- IP66 protection against dust and high‑pressure water jets
- Chemical‑resistant housing suited to wash‑down and industrial environments
- 5‑round‑pin configuration for secure industrial connections
- Extended temperature performance from –25 °C to 75 °C
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure compliance with AS/NZS wiring rules.
Applications
- Industrial wash‑down areas (e.g. food processing, cleaning zones)
- Outdoor or harsh environments where chemical resistance is required
- Commercial and industrial power supply requiring robust, IP66‑rated sockets
Standards & Compliance
- AS/NZS 3123 (industrial plugs and socket‑outlets)
- AS 60529 (IP code definitions)
Environmental Benefits
- Durable chemical‑resistant construction extends product life and reduces replacement frequency
Warranty Information
10‑year warranty under Trader Buffalo warranty policy.
Available Now
Available through authorised Australian distributors and electrical wholesalers.
