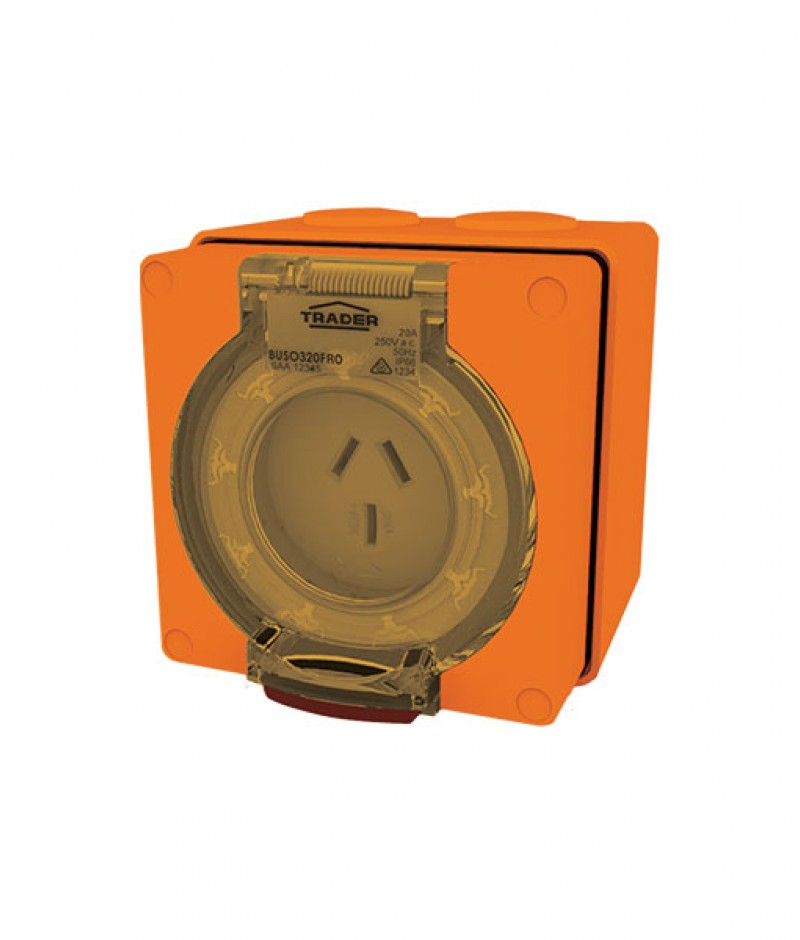

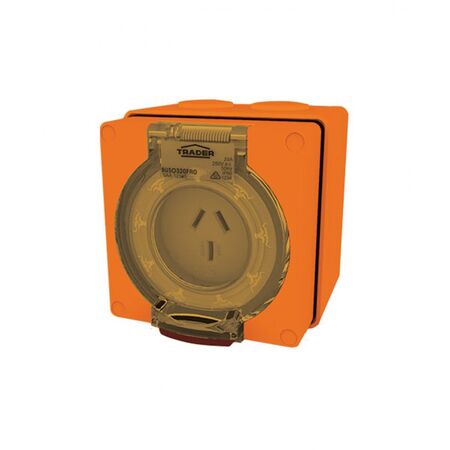

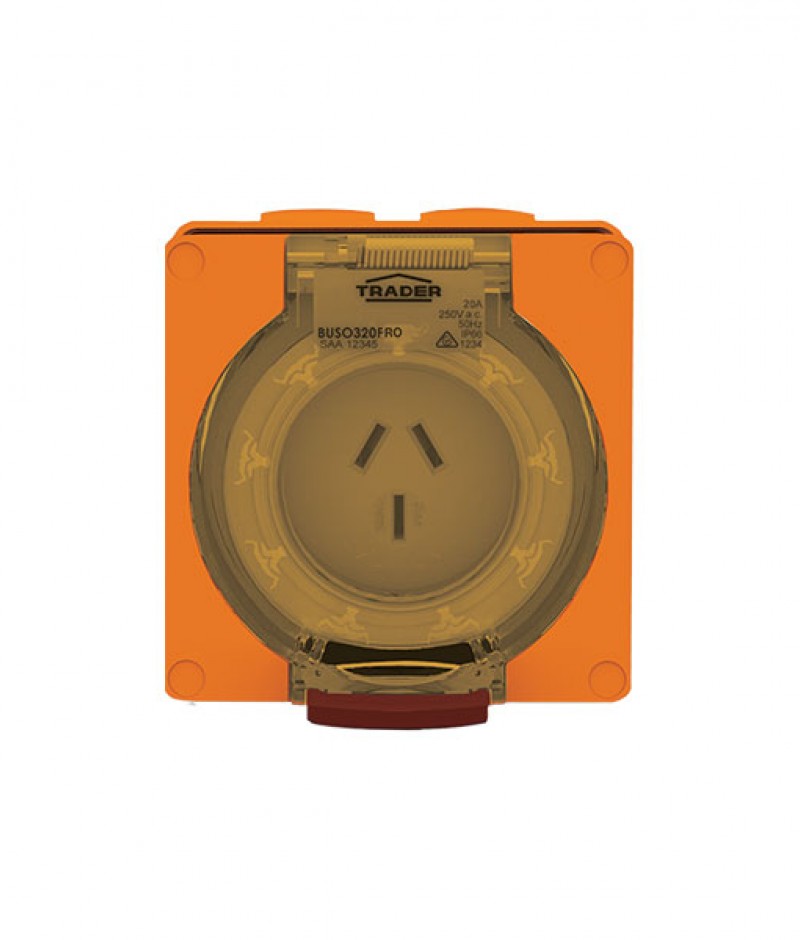

Socket Outlet IP66 20A 250V 3 Flat Pin Buffalo Orange Trader
Trader socket outlet features IP66 weatherproof rating, 20A 250V capacity and 3 flat pin chemical resistant build. Ideal for washdown and industrial areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Buffalo IP66 Socket, 3‑Flat Pin Socket Outlet, Industrial Weatherproof Socket
Technical Specifications
- Rated Current: 20 A
- Rated Voltage: 250 V AC
- Pin Configuration: 3‑flat pin (Code E)
- Cable Size: 2.5–6 mm² conductor (min–max)
- Ingress Protection: IP66
- Flap: Spring‑loaded transparent up to 180°

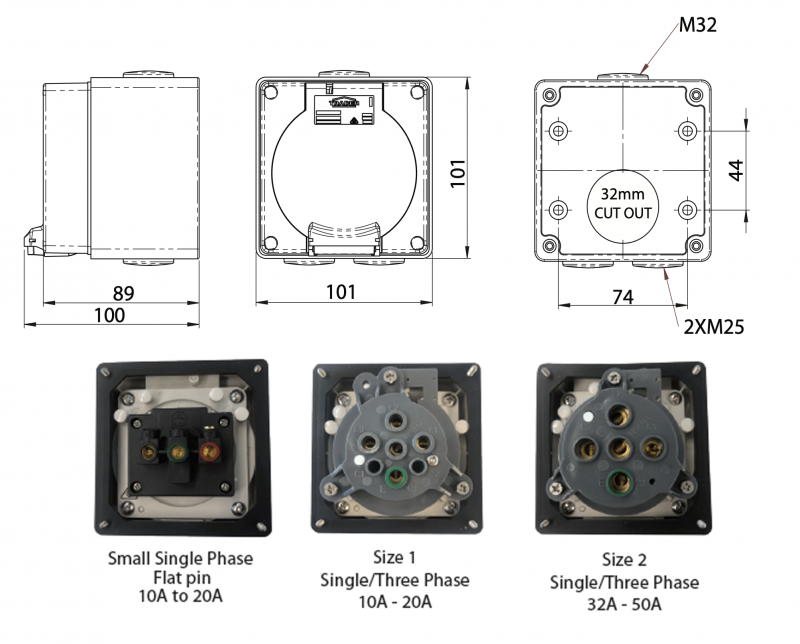

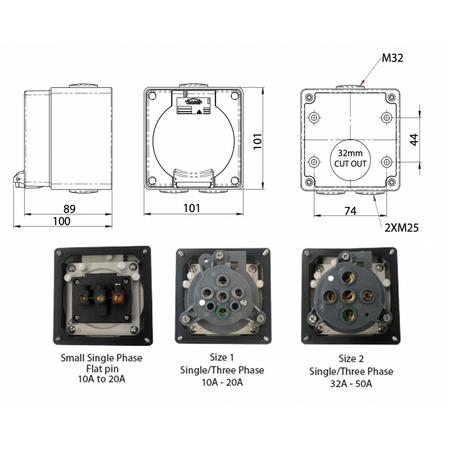

- Dimensions (H x L x W): 0mm x 0mm x 0mm
- Weight: 0.1 kg
Key Features
- IP66 weatherproof rating with spring‑loaded transparent flap sealing dust and moisture
- Chemical‑resistant housing suitable for corrosive or wash‑down environments
- Robust industrial design, accepts locking rings to maintain IP rating
- Australian standard compliant – AS/NZS 3123 plug/socket pin alignment and AS/NZS 3112 inlet when applicable
- Covered by Trader’s 10‑year warranty
Applications
- Industrial wash‑down areas
- Chemical processing facilities
- Outdoor and harsh environment power supply needs
- Construction and engineering sites requiring durable power connections
Standards & Compliance
- Complies with AS/NZS 3123 (industrial plugs/socket‑outlets)
- Complies with AS/NZS 3112 (socket outlet requirements)
Environmental Benefits
- Extends service life reducing waste
- Robust material reduces need for frequent replacements
Warranty Information
10 year warranty (Trader)
Available Now
Available through authorised Australian electrical distributors and wholesalers.
