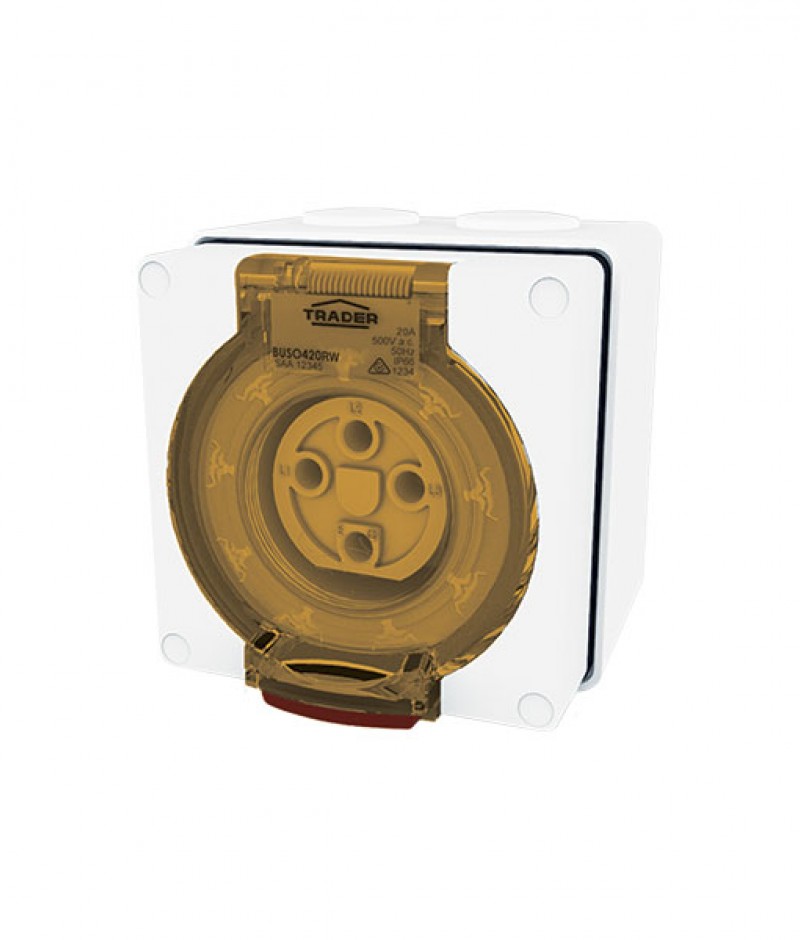

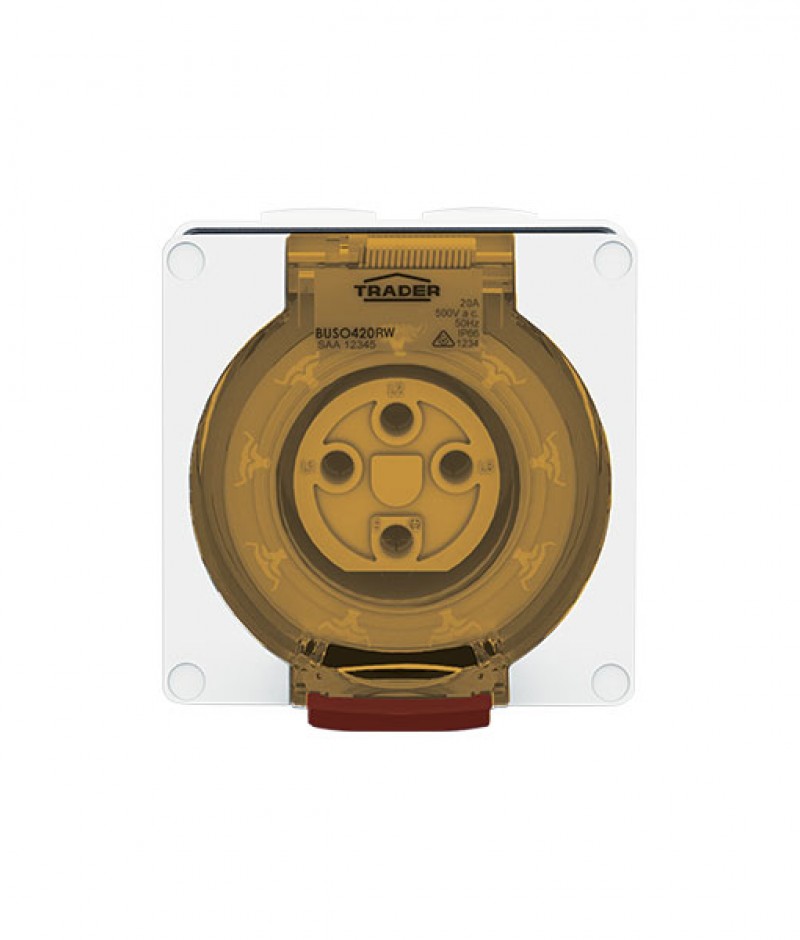

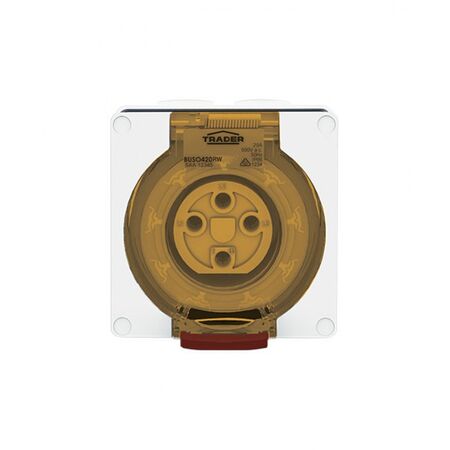

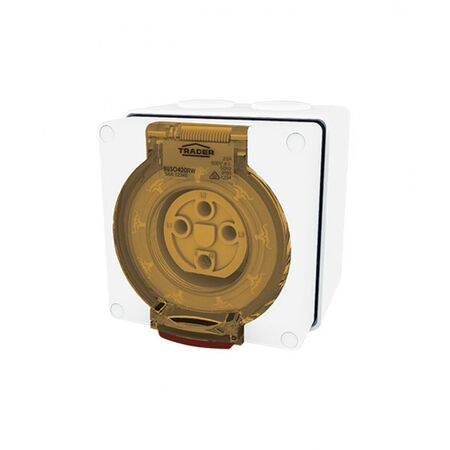

Socket Outlet IP66 20A 500V 4 Round Pin Buffalo White Trader
Trader socket outlet features IP66 weatherproof rating, 20A 500V capacity and 4 round pin chemical resistant build. Ideal for washdown and industrial areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Weatherproof Industrial Socket, Heavy Duty 4‑Pin Socket, Outdoor Power Socket
Technical Specifications
- Current Capacity: 20 A
- Voltage: 500 V AC
- IP Rating: IP66
- Material: High‑impact polycarbonate
- Contact Configuration: 4‑round‑pin
- Mounting: Surface‑mount, screw terminals accept 2.5–6 mm² conductors (typical for size)

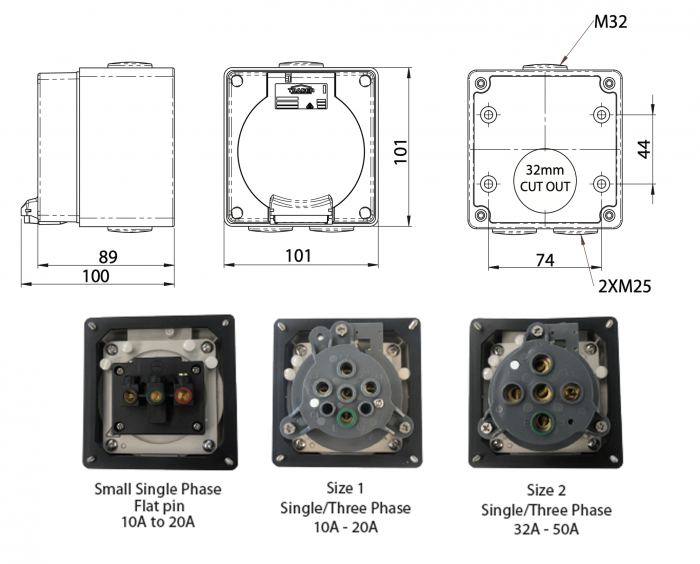

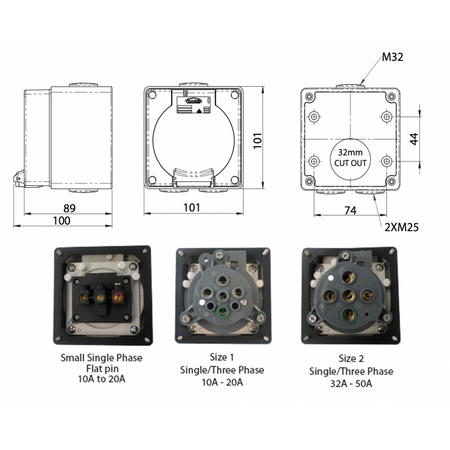

- Dimensions (H x L x W): 100mm x 100mm x 100mm
- Weight: 1.5 kg
Key Features
- Robust IP66 weatherproof rating protects against dust and water
- Heavy‑duty 20 A, 500 V AC capacity for industrial use
- 4‑round‑pin configuration ideal for flexible connectivity
- Spring‑loaded transparent flap with self‑latching seal maintains IP66 protection even when not in use
- Threaded socket surround accepts plug lock rings for secure IP‑rated connections
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with AS/NZS standards and safe electrical connection.
Applications
- Industrial environments such as factories and warehouses
- Commercial and temporary installations like building sites
- Outdoor equipment and wash‑down areas requiring chemical or water resistance
Standards & Compliance
- Complies with AS/NZS 3123 for plugs and socket outlets
- IP66 rating in accordance with AS 60529
Environmental Benefits
- Durable chemical‑resistant build extends service life and reduces replacement frequency
Warranty Information
1 year warranty against manufacturing defects (Trader)
Available Now
Available through authorised Australian electrical distributors.
