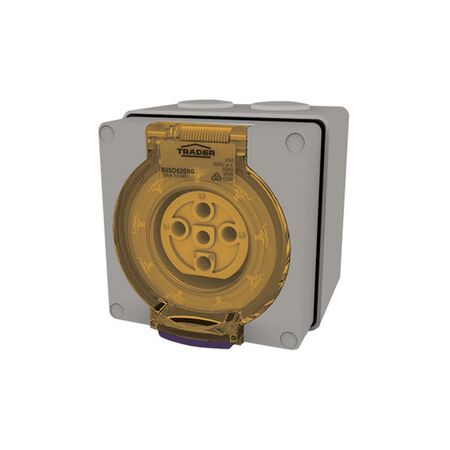

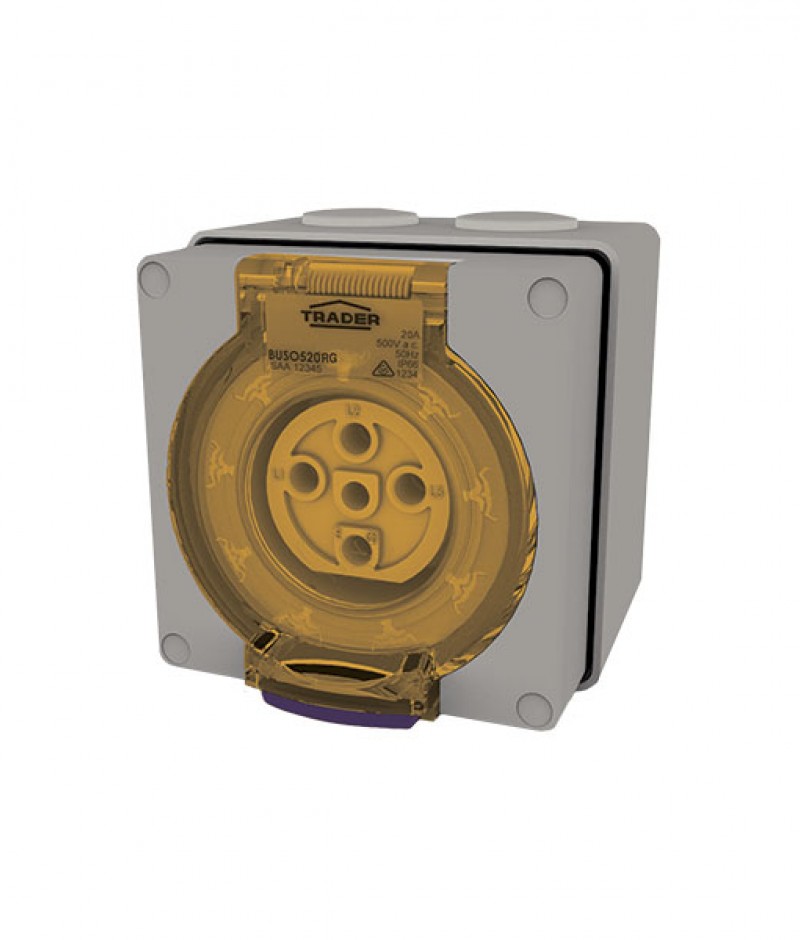

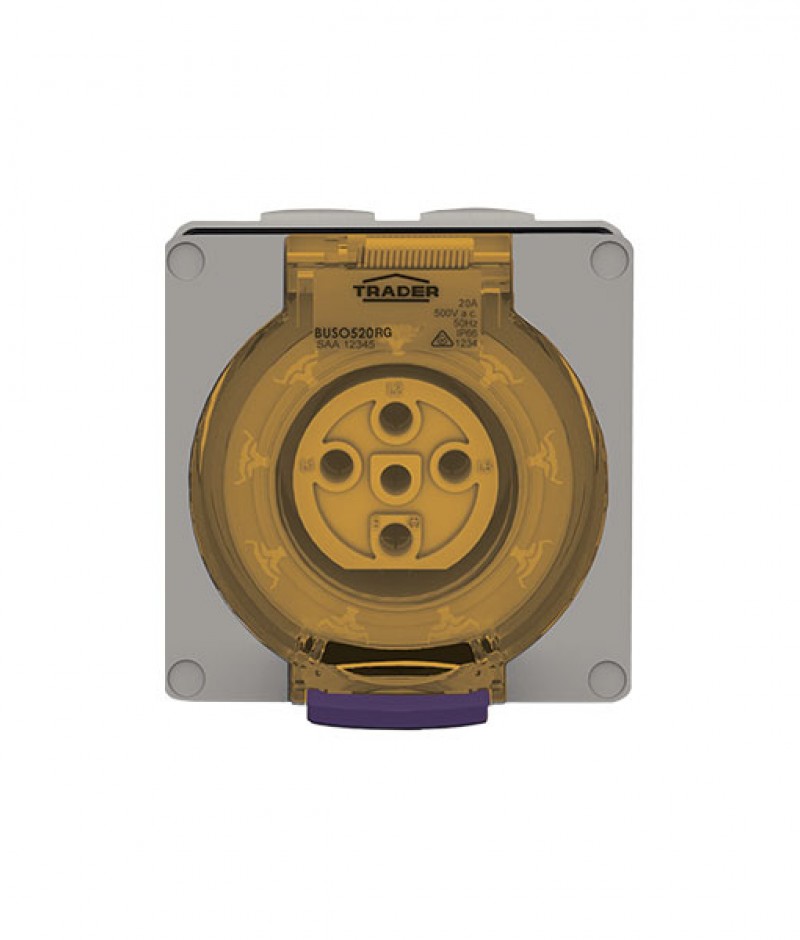

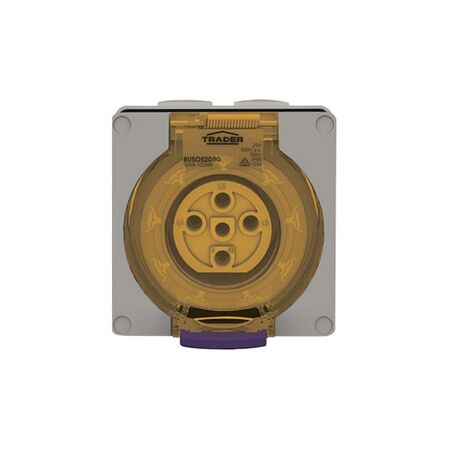

Socket Outlet IP66 20A 500V 5 Round Pin Buffalo Grey Trader
Trader socket outlet features IP66 weatherproof rating, 20A 500V capacity and 5 round pin chemical resistant build. Ideal for washdown and industrial areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Buffalo IP66 Socket Outlet, Heavy-Duty Industrial Socket, Waterproof 5‑Pin Socket
Technical Specifications
- Current Rating: 20 A
- Voltage Rating: 500 V AC
- Number of Pins: 5 round
- Ingress Protection: IP66 (dust-tight and powerful water jets)
- Cable Entry: Rear cord entry with internal cable clamp

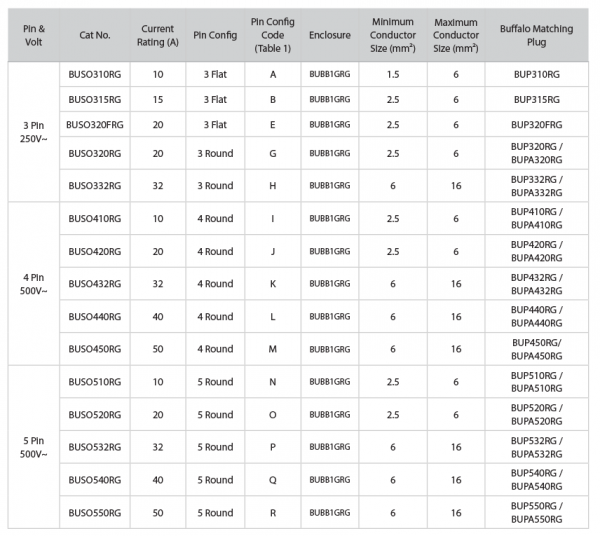

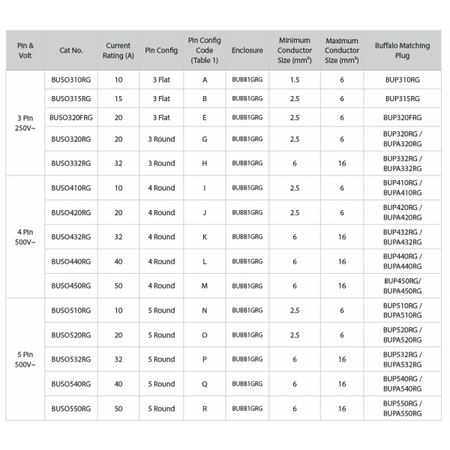

- Matching Plugs: Compatible with BUP520 / BUPA520 plugs
- Cable Diameter Range: 12–18 mm
- Pin Diameter: 4.6 mm

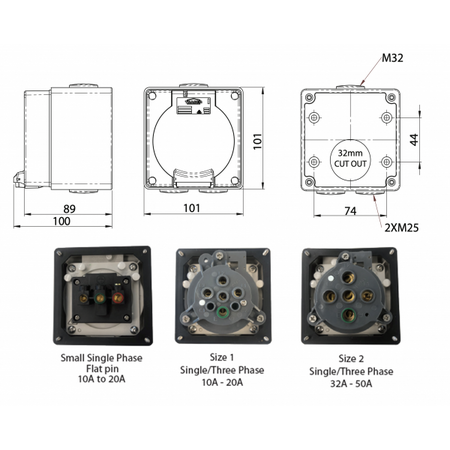

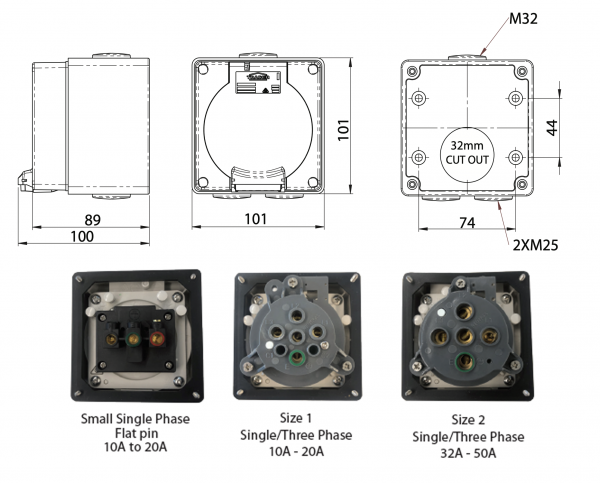

- Dimensions (H x L x W): 101mm x 100mm x 101mm
- Weight: 1.0 kg
Key Features
- Chemical‑resistant, robust construction for harsh environments
- IP66 rated for superior protection against dust and water
- 5 round‑pin configuration for industrial power requirements
- Rear cord entry with gland and internal clamp ensures secure wiring
- Compatible with matching Trader Buffalo plugs and inlets
Professional Installation Requirements
- Installation should be performed by a licensed electrician to meet safety regulations.
Applications
- Industrial environments (factories, manufacturing plants)
- Commercial outdoor or wash‑down areas
- Construction sites and temporary power setups
Standards & Compliance
- Likely compliant with AS/NZS 3123 (industrial electrical accessories)
- IP66 rating according to AS 60529
Environmental Benefits
- Durable chemical‑resistant housing increases lifespan and reduces replacement waste
Warranty Information
10 year warranty (Trader Buffalo)
Available Now
Available through authorised Australian electrical distributors.
