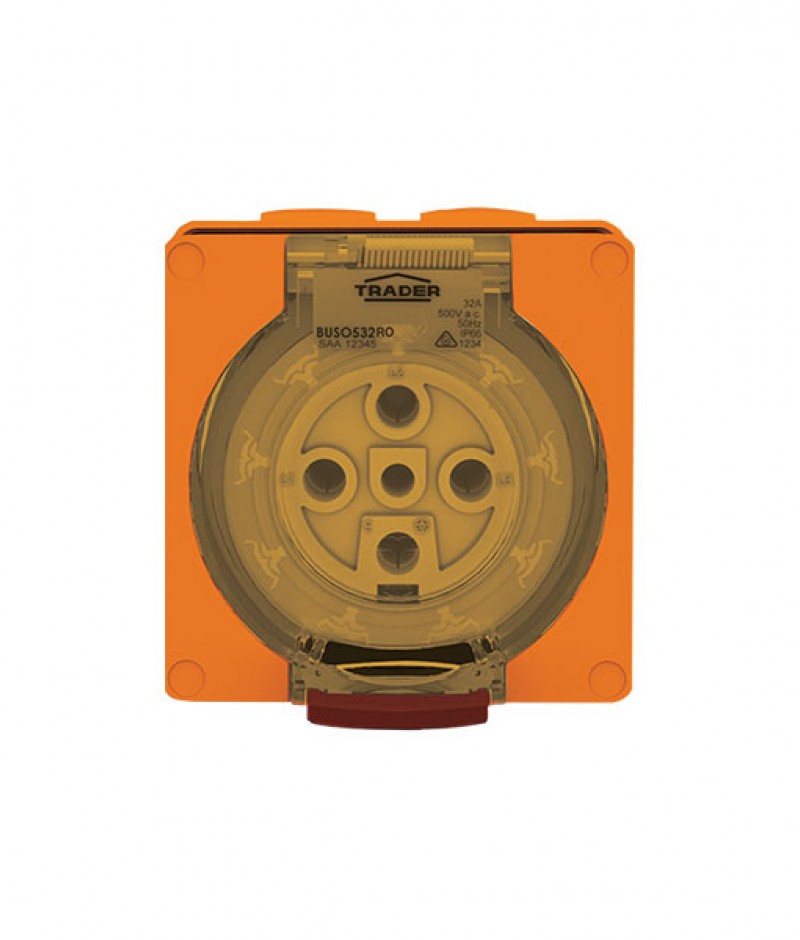

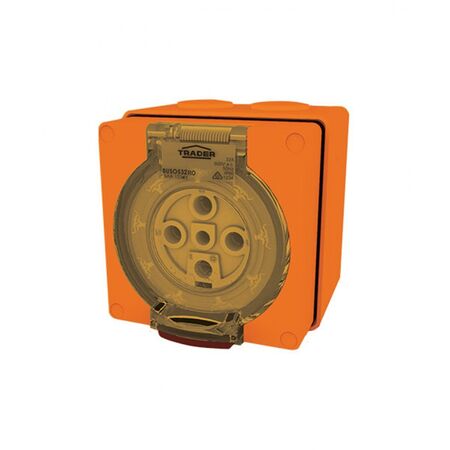

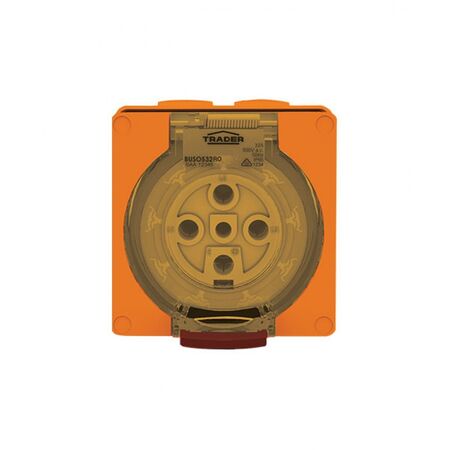

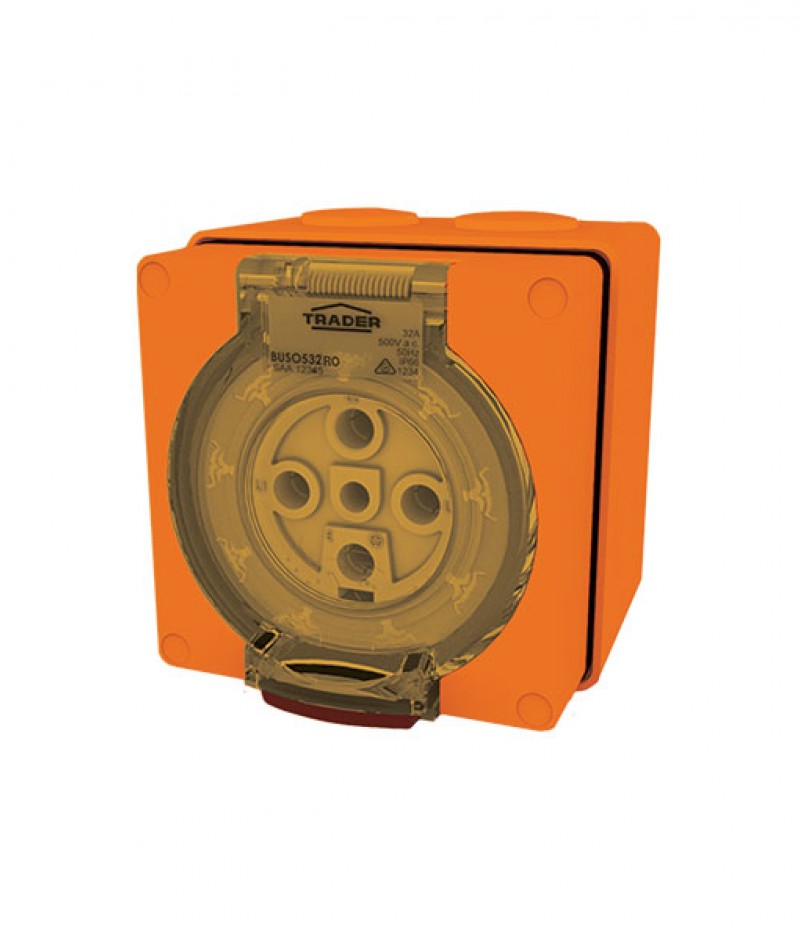

Socket Outlet IP66 32A 500V 5 Round Pin Buffalo Orange Trader
Trader socket outlet features IP66 weatherproof rating, 32A 500V capacity and 5 round pin chemical resistant build. Ideal for washdown and industrial areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Buffalo BUSO532RO

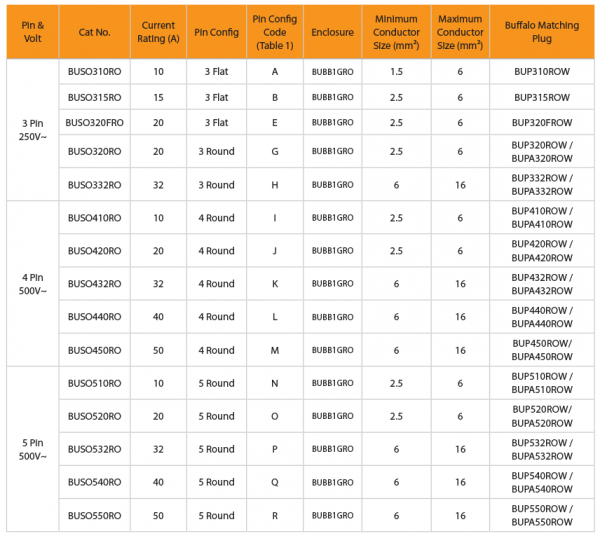

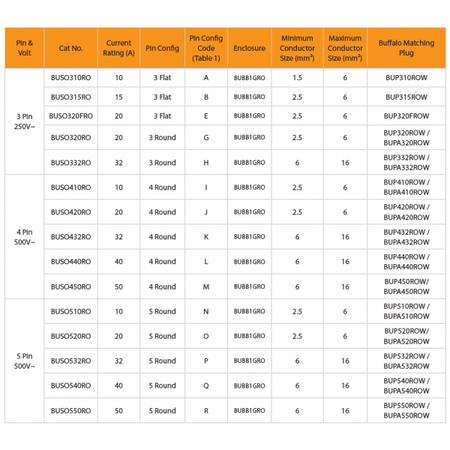

Technical Specifications
- Rated current: 32 A
- Rated voltage: 500 V AC
- Configuration: 5‑round‑pin (3P + N + E)
- Ingress protection: IP66
- Mounting: surface external mounting
- Chemical‑resistant housing
- Stainless‑steel external fixings (304 grade)

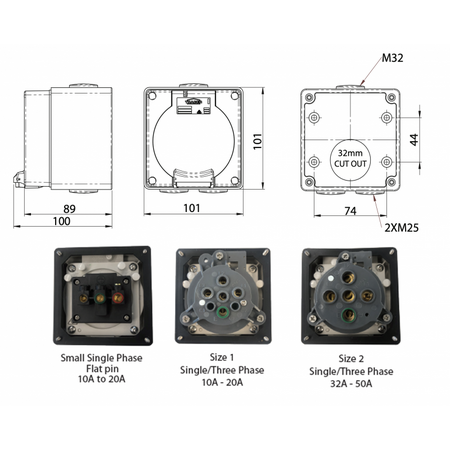

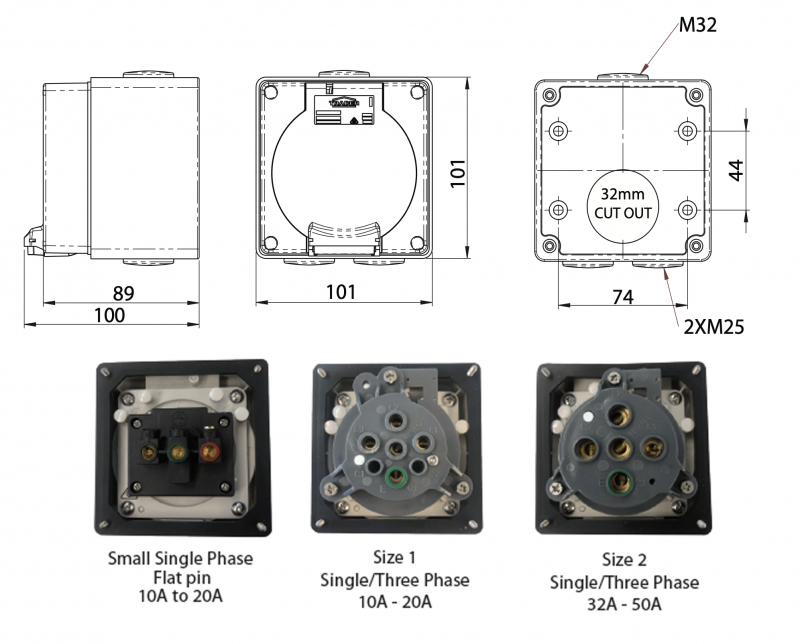

- Dimensions (H x L x W): 107mm x 102mm x 101mm
- Weight: 0.64 kg
Key Features
- High IP66 rating for wash‑down and harsh industrial conditions
- Chemical‑resistant polymer housing and stainless‑steel exposed hardware
- Three‑phase 5‑pin configuration (3P + N + E)
- Robust surface‑mount design suitable for industrial and acid‑exposed applications
Professional Installation Requirements
- Installation to be performed by a licensed electrician in accordance with AS/NZS 3000.
Applications
- Industrial and wash‑down environments
- Chemical handling and acid‑resistant installations
- Heavy‑duty power distribution in corrosive areas
Standards & Compliance
- AS/NZS 3112 (plugs and socket‑outlets) inferred for pin configuration and voltage‑current rating
Environmental Benefits
- Durable chemical‑resistant materials extend lifespan, reducing replacement frequency
- 304‑grade stainless steel hardware enhances corrosion resistance and recyclability
Warranty Information
10 year warranty as per Trader Buffalo range general product policy.
Available Now
Available through authorised Australian electrical distributors.
