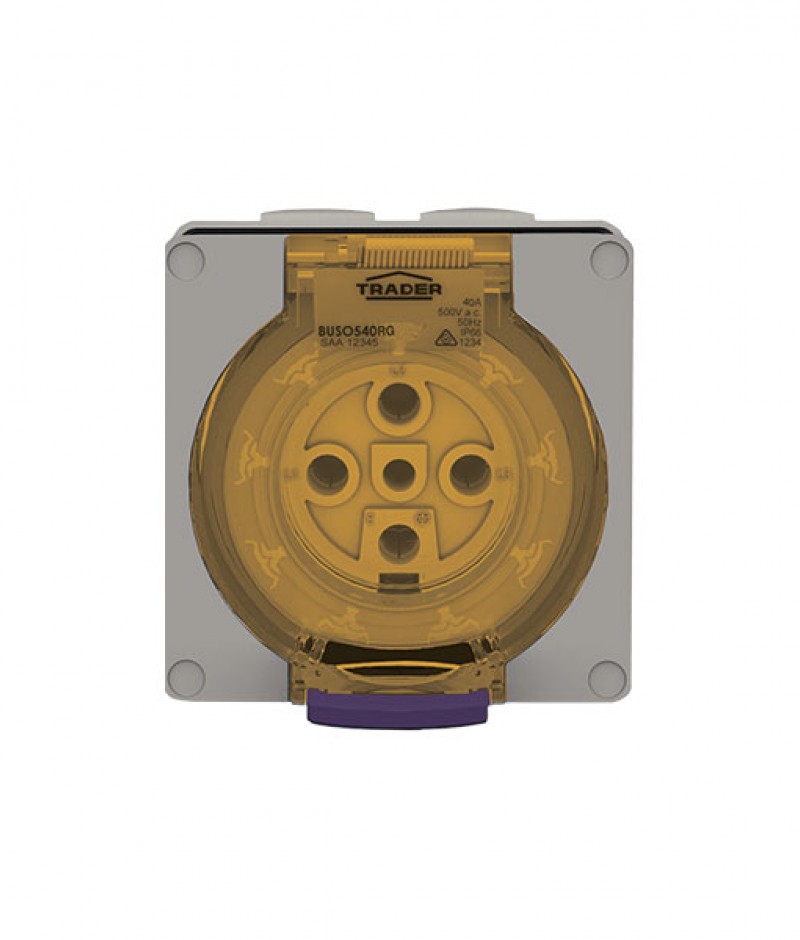

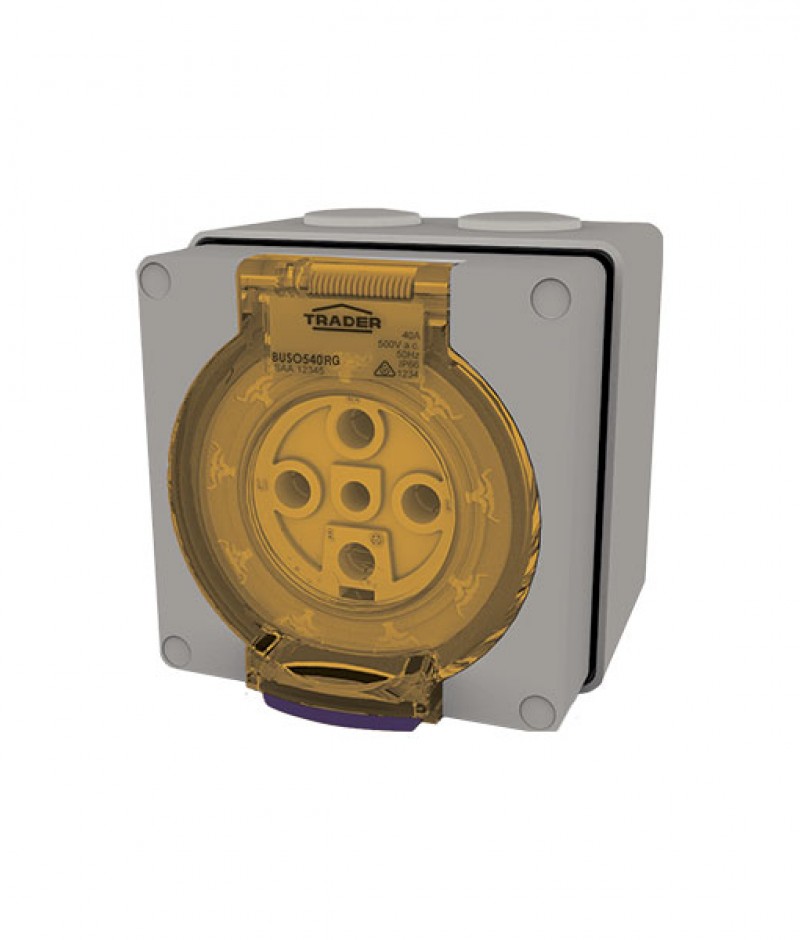

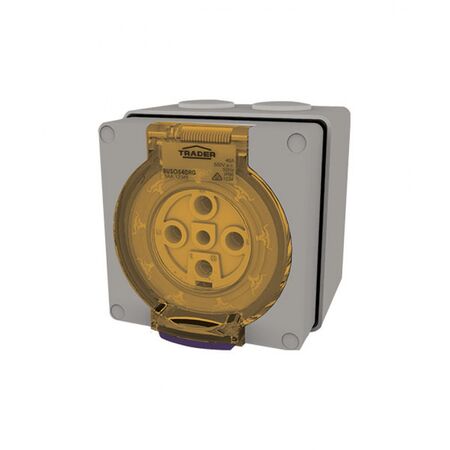

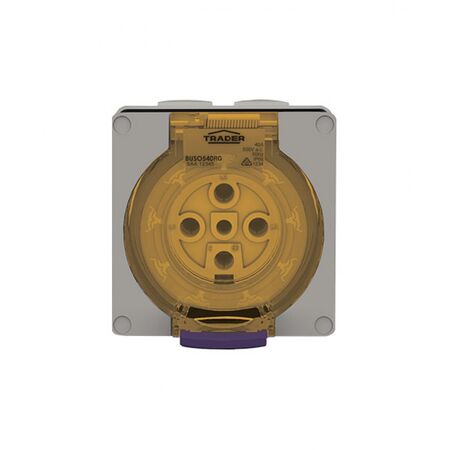

Socket Outlet IP66 40A 500V 5 Round Pin Buffalo Grey Trader
Trader socket outlet features IP66 weatherproof rating, 40A 500V capacity and 5 round pin chemical resistant build. Ideal for washdown and industrial areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Trader Buffalo BU SO540, Heavy‑Duty IP66 Socket, Industrial Power Outlet
Technical Specifications
- Rated Current: 40 A
- Voltage: 500 V AC
- Ingress Protection: IP66
- Pin Configuration: 5 Round Pins
- Housing Material: Chemical‑resistant polycarbonate (grey)
- Cover Design: Spring‑loaded transparent flap for dust and moisture sealing
- Cable Gland Thread: M32 × 1.5
- Cable Diameter Range: 11–25 mm²
- Terminal Size: Ø 6 mm

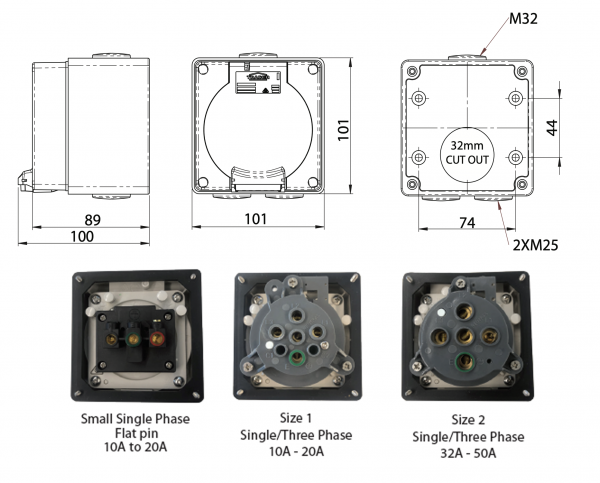

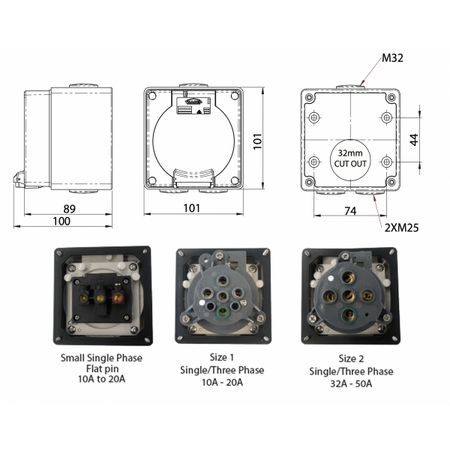

- Dimensions (H x L x W): 102mm x 110mm x 101mm
- Weight: 0.63 kg
Key Features
- IP66 rating ensures resistance to water and dust ingress
- Chemical‑resistant construction suited for harsh environments
- Robust design with spring‑loaded flap sealing out contaminants
- Standard industrial 5‑round‑pin configuration for high‑current applications
- Rear cable entry with internal cable clamp for secure connection
- Compatible with plug locking rings to maintain IP integrity
Professional Installation Requirements
- Installation by a licensed electrician is recommended to ensure safety and compliance with AS/NZS wiring regulations.
Applications
- Industrial wash‑down areas and processing plants
- Chemical manufacturing or cleaning facilities
- Outdoor and harsh‑environment power supply needs
- Heavy machinery and construction site electrical connections
Standards & Compliance
- Complies with AS/NZS 3123 for industrial socket‑outlets
Environmental Benefits
- Chemical‑resistant and durable design reduces replacement frequency and material waste
Warranty Information
10‑year warranty as per Trader Buffalo range general policy
Available Now
Available through authorised Australian electrical equipment distributors.
