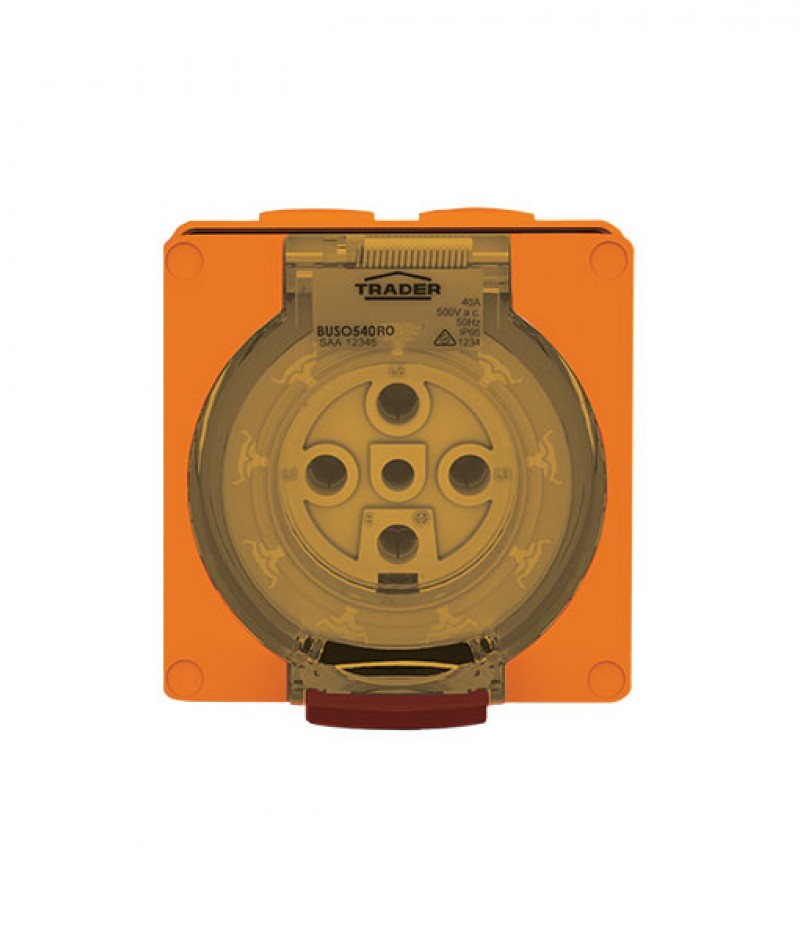

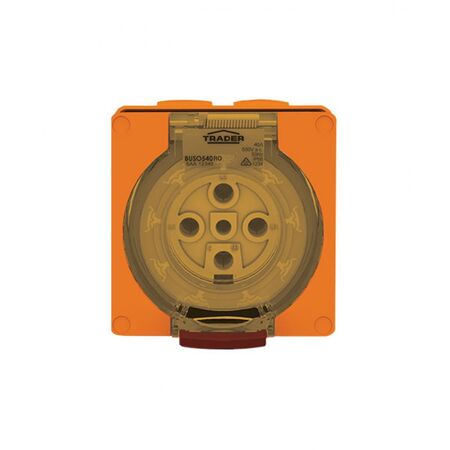

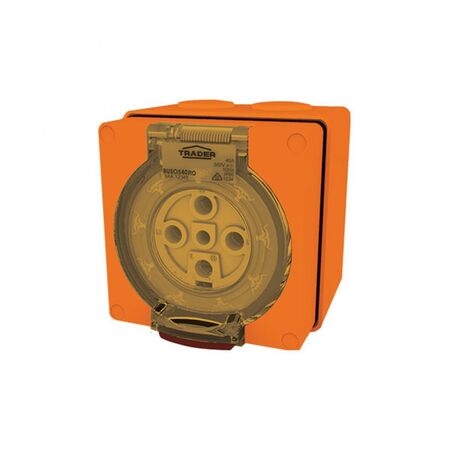

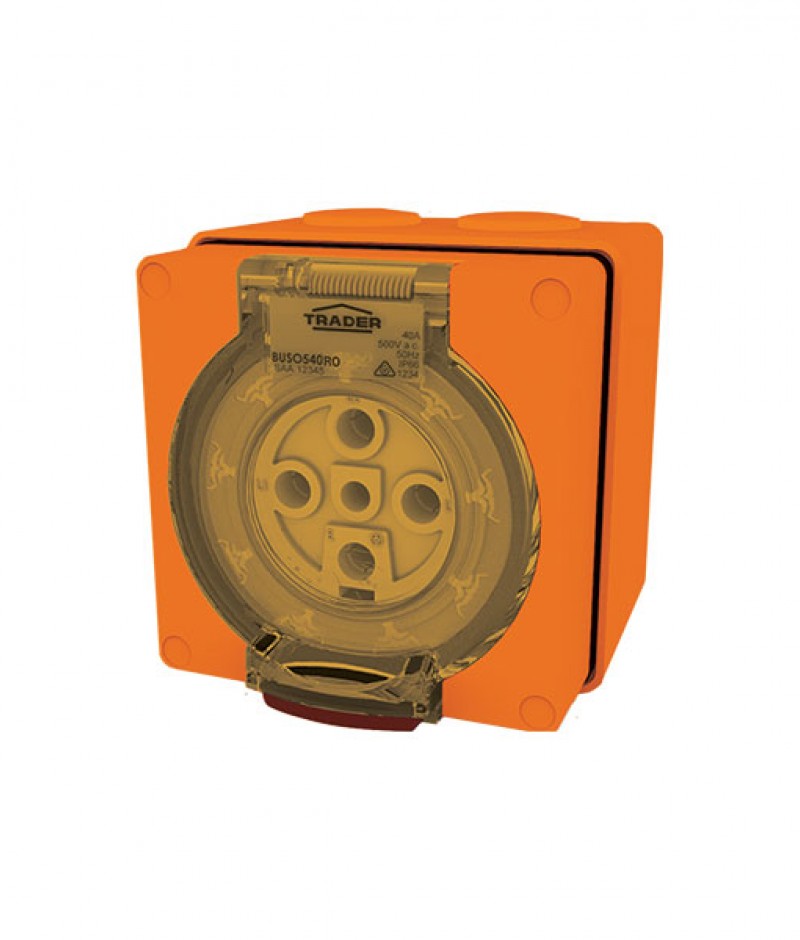

Socket Outlet IP66 40A 500V 5 Round Pin Buffalo Orange Trader
Trader socket outlet features IP66 weatherproof rating, 40A 500V capacity and 5 round pin chemical resistant build. Ideal for washdown and industrial areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Buffalo Chemical Resistant Socket Outlet, IP66 5‑Pin 40A Socket

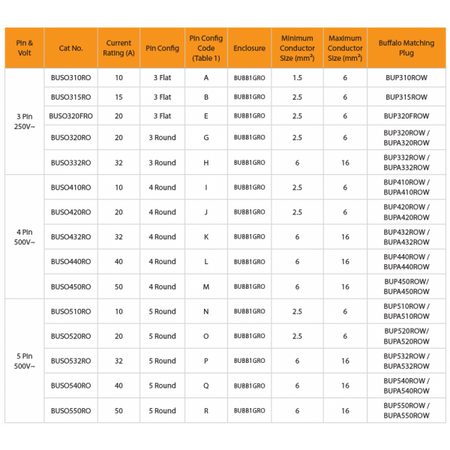

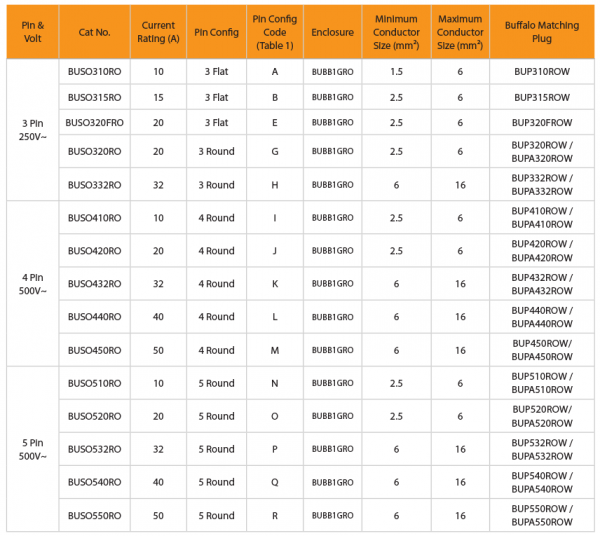

Technical Specifications
- Current Rating: 40A
- Voltage Rating: 500V AC
- Pin Configuration: 5 round pins
- Ingress Protection: IP66
- Flap: One‑piece spring‑loaded transparent flap, opens to 180°
- Locking: Threaded socket surround accepts plug lock rings
- Operating Temperature: −25 °C to 75 °C
- Dimensions (H x L x W): 200mm x 150mm x 120mm
- Weight: 1.5 kg
Key Features
- Chemical‑resistant orange housing for harsh or acidic environments
- IP66 rating ensures protection against dust and powerful water jets
- Spring‑loaded transparent flap with self‑latching design for added sealing
- Threaded surround supports plug locking rings to maintain IP66 integrity
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards.
Applications
- Industrial wash‑down and food processing areas
- Chemical processing and hazardous environments
- Outdoor or exposed heavy‑duty socket installations
Standards & Compliance
- Designed to comply with AS/NZS 3112 and AS/NZS 3123 for industrial plug/socket systems
Environmental Benefits
- Robust, chemical‑resistant construction extends service life and reduces replacement frequency
Warranty Information
Trader Buffalo range comes with a 10‑year warranty against manufacturing defects.
Available Now
Available through authorised Australian electrical distributors.
