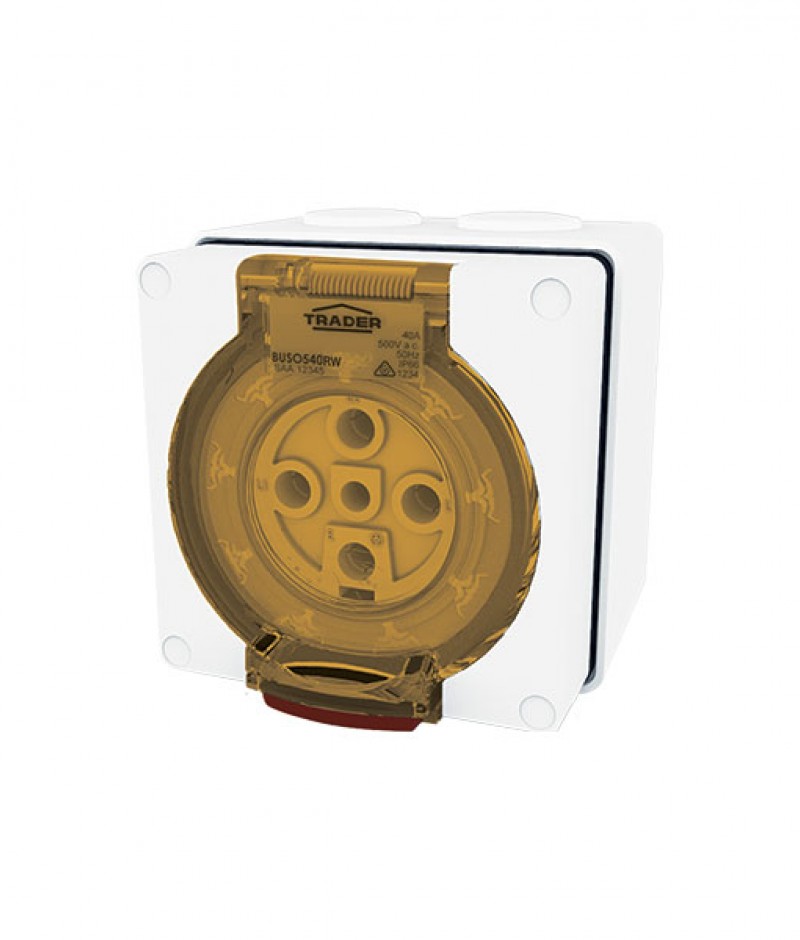

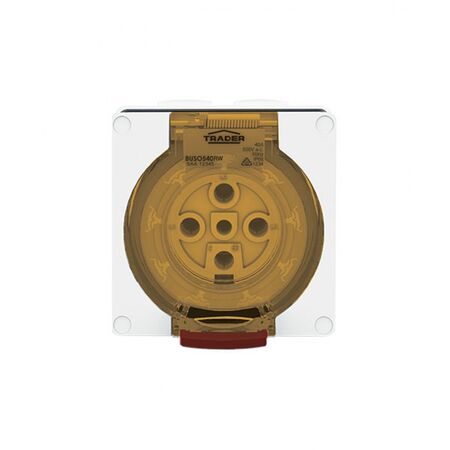

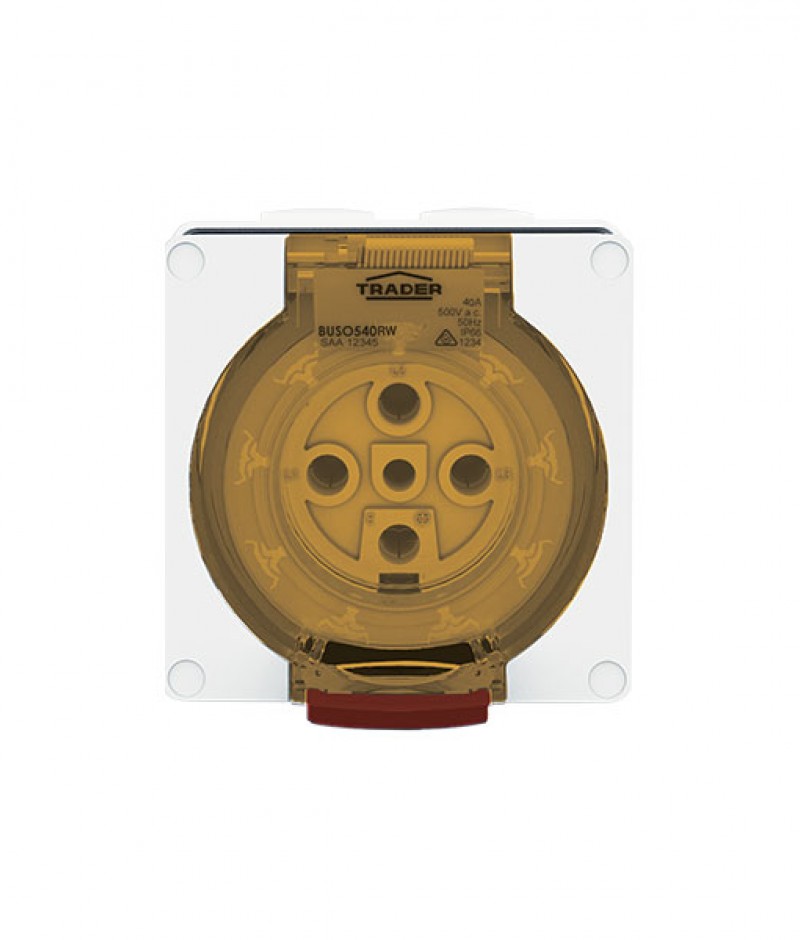

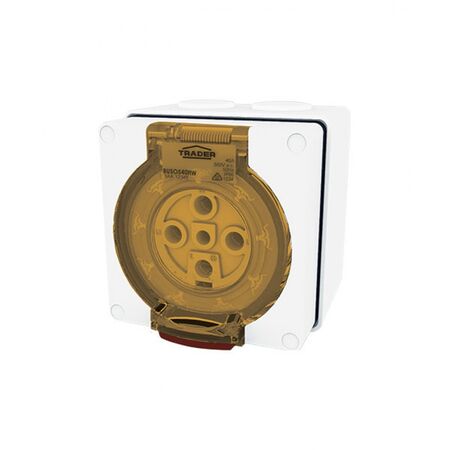

Socket Outlet IP66 40A 500V 5 Round Pin Buffalo White Trader
Trader socket outlet features IP66 weatherproof rating, 40A 500V capacity and 5 round pin chemical resistant build. Ideal for washdown and industrial areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Buffalo Socket Outlet, Industrial IP66 Socket 5‑Pin, Heavy‑Duty 5‑Pin Socket
Technical Specifications
- Current Rating: 40 A
- Voltage Rating: 500 V AC
- Ingress Protection: IP66
- Pin Configuration: 5‑round‑pin
- Built‑in spring‑loaded transparent flap for IP66 sealing
- Suitable cable size: 11–25 mm² conductor range

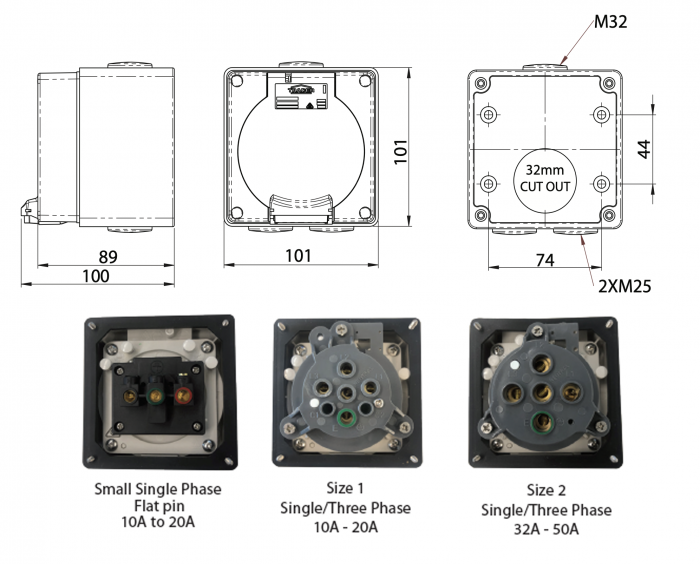

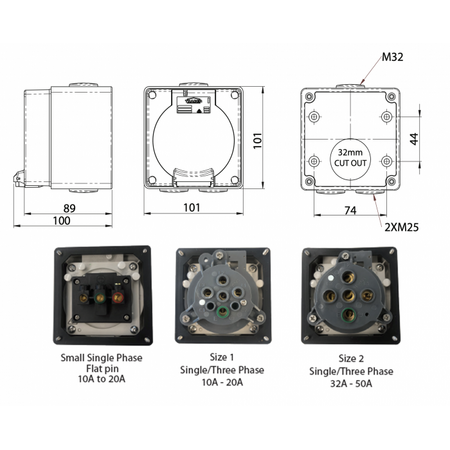

- Dimensions (H x L x W): 102mm x 110mm x 101mm
- Weight: 0.63 kg
Key Features
- Chemical‑resistant housing suitable for harsh and corrosive environments
- IP66 construction with self‑latching flap to protect against dust and water ingress
- Robust design for industrial, wash‑down and outdoor applications
- Threaded socket surround compatible with Lock‑ring plugs for secure, weatherproof connection
- Accepts size‑2 extension sockets and pendant outlet kits
Applications
- Industrial power connections in wash‑down environments
- Outdoor equipment powering
- Heavy‑duty machinery hookups requiring weatherproof sockets
Standards & Compliance
- Complies with AS/NZS 3123 for industrial socket‑outlets
- Rated per IEC 60309 industrial round‑pin standard (implied)
Environmental Benefits
- Durable chemical‑resistant design extends service life and reduces replacement waste
Warranty Information
10 year warranty as per Trader Buffalo chemical‑resistant range.
Available Now
Available through authorised Australian electrical distributors.
