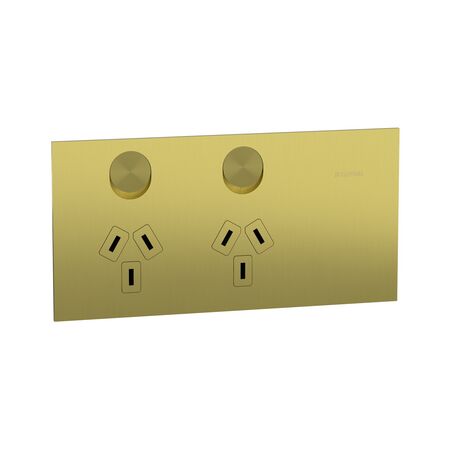

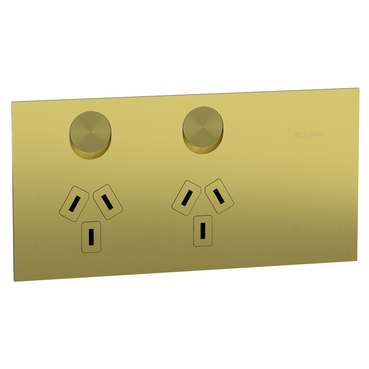

Socket Sw Horiz Twin 10A | Flush Mount Design | Rocker Control | RCM Certified | by Clipsal
The Socket Sw Horiz Twin 10A is a dual switched power outlet designed for both residential and commercial use. Featuring a flush mount horizontal design and rocker control, this socket provides two power outlets rated at 10A each, ensuring reliable power distribution. Certified with RCM and compliant with AS/NZS 3112 standards, it’s perfect for homes, offices, and retail spaces, offering safety and convenience in one package.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Socket Sw Horiz Twin 10A | Flush Mount Design | Rocker Control | RCM Certified | by Clipsal
Brand: Clipsal
SKU: CLI1025-BB
Alternatively Known As: Dual Switched Power Outlet, Twin Horizontal Socket, 10A Switched Socket
Technical Specifications
- Rated operational voltage: 230/240 V AC
- Rated current: 10 A
- Number of power socket outlets: 2 x 2P + E (Australian/New Zealand standard)
- Control type: Rocker switch
- Fixing mode: Screw
- Device mounting: Flush
- Mounting position: Horizontal
- Connections - terminals: 4 x 2.5 mm² and 3 x 4 mm² screw terminals
- Fixing center: 84 mm
- Wire stripping length: 16 mm
- Operating ambient temperature: 0 to 45 °C
- Relative humidity: 10 to 95%
- Material: Ceramic
- Product certifications: RCM
- Dimensions (H x L x W): 74mm x 23.5mm x 148mm
- Weight: 0.3 kg
Key Features
- Flush mount horizontal design with rocker control
- Two power socket outlets rated at 10A each
- Screw fixing mode with 4 x 2.5 mm² and 3 x 4 mm² screw terminals
- Certified with RCM and compliant with AS/NZS 3112 standards
- Toxic heavy metal free, mercury free, and RoHS compliant
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Residential: Homes and apartments
- Commercial: Offices and retail spaces
- General: Any location requiring dual switched power outlets
Standards & Compliance
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Mercury and toxic heavy metal free materials reduce environmental impact
- Compliant with RoHS and REACH regulations ensuring safer chemical use
Warranty Information
Standard manufacturer warranty applies. Please refer to Clipsal warranty terms for details.
Available Now
The Clipsal Socket Sw Horiz Twin 10A (CLI1025-BB) is available for immediate purchase, ideal for residential and commercial electrical installations.
