Socket Sw Horiz Twin 1ExUSBC 10A | Dual Power Outlets | USB Type C Charging | Rocker Control | by Clipsal

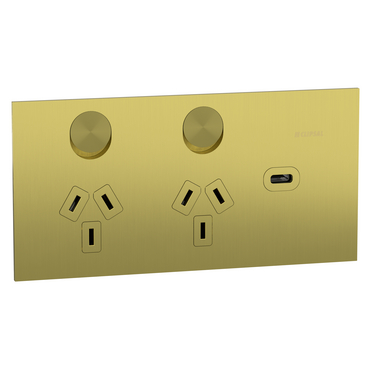

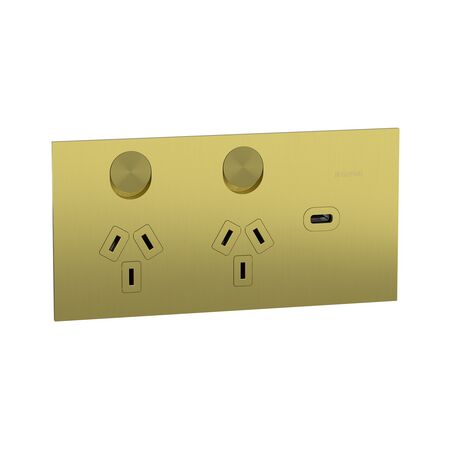

The Socket Sw Horiz Twin 1ExUSBC 10A features two power socket outlets compliant with Australian/New Zealand standards and a USB Type C charging port, making it perfect for residential and commercial use. Designed for flush wall mounting with a rocker control, this socket is ideal for homes, offices, and retail spaces, ensuring efficient power access and charging capabilities.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Socket Sw Horiz Twin 1ExUSBC 10A | Dual Power Outlets | USB Type C Charging | Rocker Control | by Clipsal
Brand: Clipsal
SKU: CLI1025USBC-BB
Alternatively Known As: Clipsal Twin Power Socket with USB C, Clipsal Horizontal Twin Socket with USB, Clipsal USB Type C Power Outlet
Technical Specifications
- Socket number: 2
- Number of power socket outlets: 2 x 2P + E (Australian/New Zealand)
- Rated current: 10 A, 230/240 V AC, 50 Hz
- Connections - terminals: 4 x 2.5 mm² screw terminals, 3 x 4 mm² screw terminals
- Connector type: USB Type C
- Device mounting: flush, wall mounted 65 mm
- Installation direction: horizontal
- Control type: rocker with 2 rockers
- Fixing mode: by screw with 120 mm fixing center
- Ambient air temperature for operation: 0 to 45 °C
- Relative humidity: 10 to 95 %
- Material: ceramic
- Mercury free and RoHS compliant
- Dimensions (H x L x W): 74mm x 69mm x 148mm
- Weight: 0.3 kg
Key Features
- Two power socket outlets (2P + E) for Australian/New Zealand standards
- One USB Type C charging port
- Flush wall mounting with horizontal installation
- Rocker control type with two rockers
- Mercury free and RoHS compliant
- Rated current 10A at 230/240V AC, 50Hz
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Residential: Homes, apartments
- Commercial: Offices, retail spaces
- General: Wall-mounted power outlet with USB charging
Standards & Compliance
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Mercury free design reduces environmental toxins
- RoHS compliant, limiting hazardous substances
- Energy efficient USB charging port
Warranty Information
Standard manufacturer warranty applies. Please refer to Clipsal warranty terms for details.
Available Now
The Clipsal Socket Sw Horiz Twin 1ExUSBC 10A is available for immediate purchase, ideal for residential and commercial electrical installations requiring dual power outlets and USB Type C charging.
