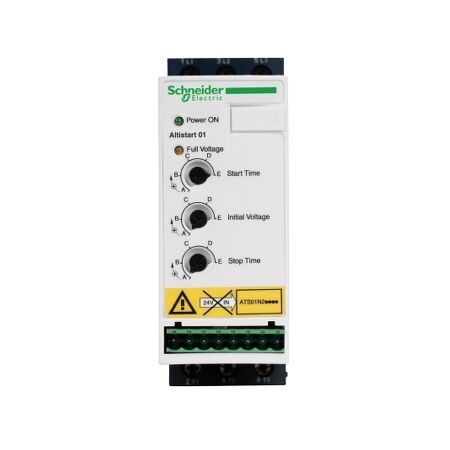

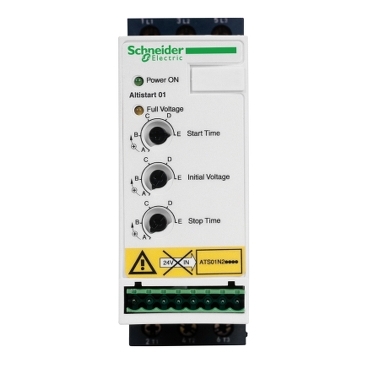

Soft-Start Stop 12A | 200-240V AC | Integrated Bypass Relay | Compact Design | @Pack of 1 | by Clipsal
The Soft-Start Stop 12A is designed for asynchronous motors, operating at 200-240V AC. This soft starter reduces mechanical stress and energy consumption during startup, making it ideal for industrial automation, HVAC systems, and manufacturing applications. With a compact design for easy DIN rail mounting and an integrated bypass relay, it ensures efficient motor control and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Soft-Start Stop 12A | 200-240V AC | Integrated Bypass Relay | Compact Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHATS01N212LU
Alternatively Known As: Clipsal soft starter, ATS01N212LU, motor soft start, Schneider soft starter, 12A soft starter, 200-240V soft starter
Technical Specifications
- Rated operational current: 12A
- Operational voltage: 200-240V AC
- Power rating: 2.2 to 3 kW
- Control voltage: 200-240V AC
- Frequency: 50/60 Hz
- Motor type: Asynchronous (induction) motors
- Mounting: DIN rail
- Integrated bypass relay
- Operating temperature: -10°C to +40°C
- Degree of protection: IP20
- Dimensions (H x L x W): 132mm x 124mm x 45mm
- Weight: 0.6 kg
Key Features
- Soft starter for asynchronous motors
- Rated operational current: 12A
- Operational voltage: 200-240V AC
- Power rating: 2.2 to 3 kW
- Reduces mechanical stress on motors and connected equipment
- Compact design for easy panel integration
- Simple DIN rail mounting
- Integrated bypass relay for energy efficiency
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Industrial automation: Conveyor systems, pumps, fans
- HVAC systems: Compressors, blowers
- Manufacturing: Machine tools, mixers
- General: Any application requiring controlled motor starting and stopping
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces energy consumption during motor startup
- Minimizes mechanical wear, extending equipment lifespan
- Decreases electrical and mechanical stress, lowering maintenance needs
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SOFT-START Stop 12A 200-240V (ATS01N212LU) is available for immediate purchase. Ideal for industrial and commercial motor control applications.
