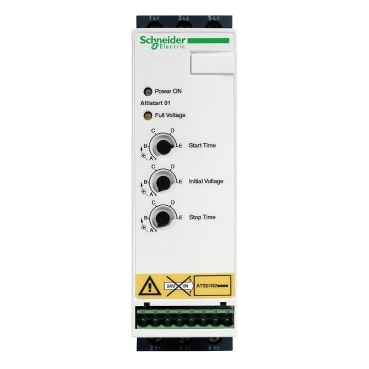

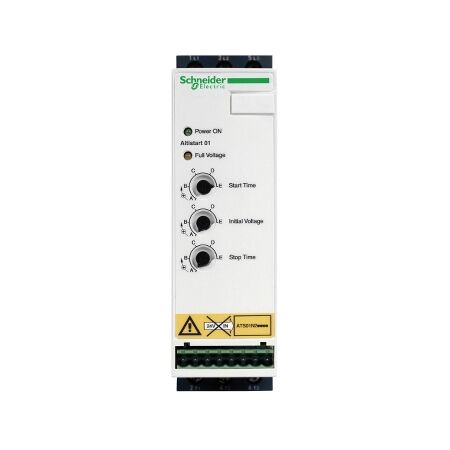

SOFT-START Stop 32A | 200-240V AC | Integrated Bypass Relay | Compact Design | @Pack of 1 | by Clipsal
The SOFT-START Stop 32A is designed for efficient motor control, supporting operational voltages of 200-240V AC and rated for up to 7.5 kW. Ideal for industrial automation and commercial applications, it features an integrated bypass relay that enhances energy efficiency while reducing mechanical stress during motor starts. Perfect for HVAC systems, conveyor systems, and more.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SOFT-START Stop 32A | 200-240V AC | Integrated Bypass Relay | Compact Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHATS01N232LU
Alternatively Known As: Soft Starter 32A, ATS01N232LU, Schneider Soft Start, Motor Soft Starter 7.5kW, Clipsal Motor Starter
Technical Specifications
- Rated operational current: 32A
- Operational voltage: 200-240V AC
- Motor power: up to 7.5 kW (10 HP)
- Control voltage: 200-240V AC
- Frequency: 50/60 Hz
- Integrated bypass relay
- Start/stop control: 2-wire or 3-wire
- Mounting: DIN rail or panel
- Operating temperature: -10°C to +40°C
- Degree of protection: IP20
- Dimensions (H x L x W): 132mm x 124mm x 45mm
- Weight: 1.5 kg
Key Features
- Soft starter for asynchronous motors up to 7.5 kW
- Rated operational current: 32A
- Voltage range: 200-240V AC
- Reduces mechanical stress and electrical peak currents during motor start
- Compact design for easy panel integration
- Integrated bypass relay for energy efficiency
- DIN rail or panel mounting options
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Industrial automation: Conveyor systems, pumps, fans, compressors
- Commercial buildings: HVAC systems, escalators, lifts
- Manufacturing: Machinery requiring controlled motor starting and stopping
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces energy consumption by minimizing inrush currents
- Extends motor and equipment lifespan, reducing waste
- Improves operational efficiency and lowers maintenance needs
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SOFT-START Stop 32A 200-240V (ATS01N232LU) is available for immediate purchase. Ideal for industrial and commercial motor control applications.
