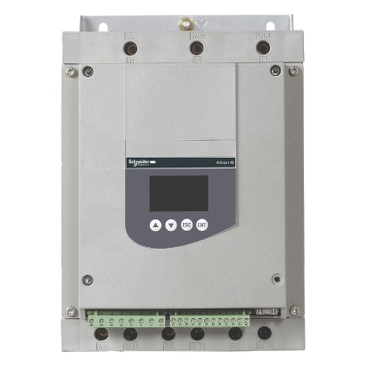

Soft Starter 22A 400V | Adjustable Start/Stop Ramp | Integrated Bypass Relay | by Clipsal
The Soft Starter 22A 400V is designed for industrial motor control, featuring adjustable start/stop ramp times and an integrated bypass relay. Ideal for applications like pumps, fans, and conveyors, it reduces mechanical stress and limits inrush current during motor start-up, ensuring smooth operation and extended equipment lifespan.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Soft Starter 22A 400V | Adjustable Start/Stop Ramp | Integrated Bypass Relay | by Clipsal
Brand: Clipsal
SKU: SCHATS48D22Q
Alternatively Known As: motor soft starter, 22A soft starter, Clipsal motor starter, SCHATS48D22Q, 400V soft starter, industrial soft starter
Technical Specifications
- Rated operational current: 22A
- Operational voltage: 400V AC, 3-phase
- Control voltage: 110-230V AC
- Frequency: 50/60Hz
- Start/stop ramp time adjustable
- Integrated bypass relay
- Overload and phase loss protection
- Ambient temperature: -10°C to +50°C
- Dimensions (H x L x W): 180mm x 160mm x 120mm
- Weight: 2.5 kg
Key Features
- Rated operational current: 22A
- Operational voltage: 400V AC
- Reduces mechanical stress on motors and connected equipment
- Limits inrush current during motor start-up
- Compact design for easy panel integration
- User-friendly interface for configuration
- Built-in motor protection features
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Industrial motor control
- Pumps and fans
- Conveyors
- HVAC systems
- Compressors
- General machinery requiring reduced inrush current
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces energy consumption during motor start-up
- Minimizes mechanical wear, extending equipment lifespan
- Improves overall system efficiency
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Soft Starter 22A 400V SCHATS48D22Q is available for immediate purchase. Ideal for industrial and commercial motor control applications requiring smooth and reliable motor starting.
