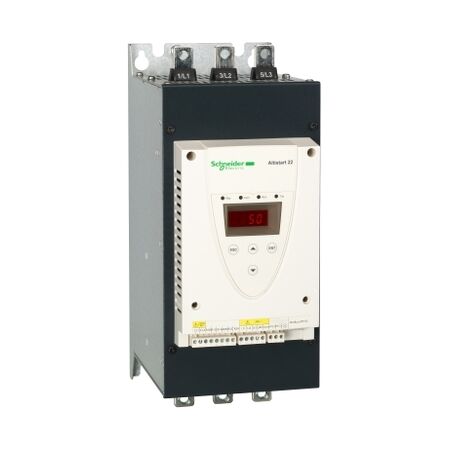

Soft Starter 37kW/75kW | Internal Bypass & Modbus | IP00 by Clipsal
Soft starter with 37kW at 230V and 75kW at 400V power—ideal for industrial motors, pumps, and fans. Built for efficient motor control, featuring internal bypass, Modbus communication, and IP00 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Altistart 22, Soft starter, ATS22 control 220V power 230V(37kW)/400...440V(75kW)
Brand: Clipsal
SKU: ATS22C14Q
Alternatively Known As: Soft starter, Motor starter, ATS22 soft starter
Technical Specifications
- Rated supply voltage: 230...440 V
- Motor power: 37 kW at 230 V, 75 kW at 400 V, 75 kW at 440 V
- Control circuit voltage: 230 V
- Power dissipation: 82 W
- Utilisation category: AC-53A
- Cooling type: Forced convection
- Operating temperature: -10...40 °C
- Vibration resistance: 1 gn
- Noise level: 56 dB
- Dimensions (H x L x W): 356mm x 229.5mm x 150mm
- Weight: 18 kg
Key Features
- Internal bypass function
- Modbus communication port
- Adjustable output current from 0.4 to 1 Icl
- IP00 protection rating
- Torque control starting method
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Asynchronous motors, pumps, and fans
Standards & Compliance
- Complies with IEC 60947-4-2 for safety and performance standards.
Environmental Benefits
- Complies with environmental regulations including CE marking.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Altistart 22 Soft Starter is available now for immediate purchase. Ideal for industrial applications requiring efficient motor control.
