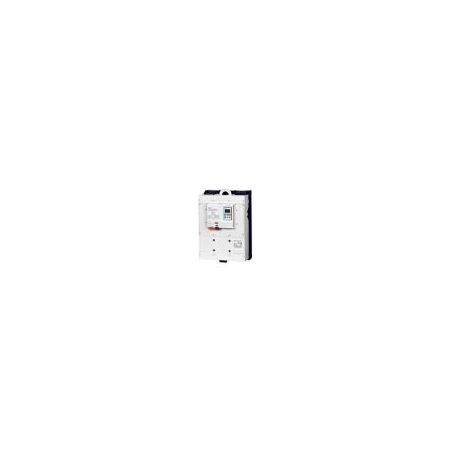

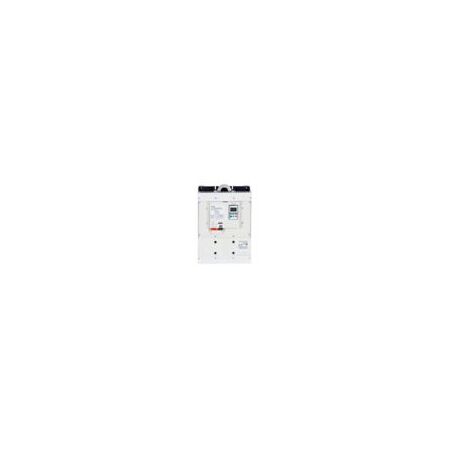

Soft Starter 400V 560kW with Modbus & Internal Bypass | IP20 Protection | Eaton
The Eaton S811+ Soft Starter operates at 400V with a rated power of 560kW, featuring Modbus communication and internal bypass for enhanced motor control. Ideal for industrial applications, it reduces mechanical stress and improves energy efficiency, making it perfect for pumping systems and heavy machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Soft Starter 400V 560kW with Modbus & Internal Bypass | IP20 Protection | Eaton
Brand: Eaton
SKU: S811-V10P3S
Alternatively Known As: Eaton S811 Soft Starter, Eaton Soft Starter 560kW, Industrial Soft Starter, Motor Soft Starter 400V
Technical Specifications
- Rated operational voltage (Ue): 200 - 600 V AC
- Rated operational current (Ie) at AC-53: 1000 A
- Rated power three-phase motor inline at 400 V: 560 kW
- Rated power three-phase motor inside delta at 400 V: 900 kW
- Control supply voltage (Us) at DC: 24 V
- Degree of protection: IP20 NEMA
- Ambient operating temperature max: 50 °C
- Functions: Single direction
- Fitted with internal bypass, motor overload protection, and display
- Frame size: V
- Dimensions (H x L x W): 420.8mm x 187.8mm x 280.6mm
- Weight: 41.4 kg
Key Features
- Soft starter with internal bypass and motor overload protection
- Pump algorithm for optimized pump control
- Adjustable class soft starter
- Single direction function
- Control unit with display for easy monitoring
- Rated operational voltage from 200 V to 600 V AC
- Rated operational current of 1000 A
- Frame size V
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is required to ensure compliance with electrical standards and safe operation.
Applications
- Industrial motor control and protection
- Pumping systems with pump algorithm control
- Heavy machinery requiring soft start to reduce mechanical stress
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Reduces mechanical stress on motors and electrical networks, extending equipment life
- Improves energy efficiency by optimizing motor starting current
- Minimizes electrical disturbances and reduces maintenance needs
Warranty Information
Standard Eaton warranty applies, typically 1-2 years against manufacturing defects.
Available Now
The Eaton S811+ Soft Starter 400V 560KW MODBUS is available now for immediate purchase. Ideal for industrial motor control and pumping applications.
