Soft Starter 480V 85A | Integrated Overload Protection | Internal Bypass | Adjustable Release by NHP
Soft starter with 480V and 85A capacity, featuring integrated motor overload protection and internal bypass—ideal for industrial and commercial motor control. Built for energy efficiency, with adjustable release class for tailored performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

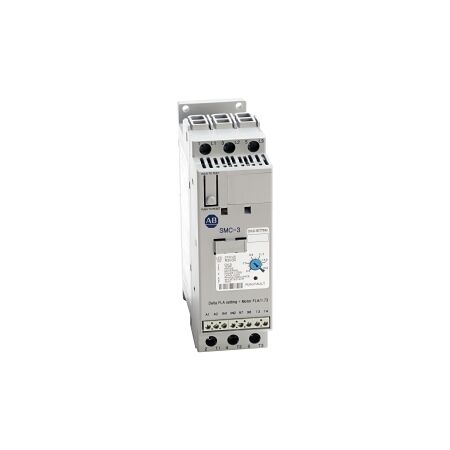

Product Name/Title: Allen-Bradley SMC 3 Soft Starter 480V 85A ND3W 100 to 240VAC Control
Brand: NHP
SKU: 150C85NBD
Alternatively Known As: SMC 3 Soft Starter, Soft Starter 480V, Motor Control Soft Starter
Technical Specifications
- Rated operation current: 85 A
- Rated power for three-phase motor inline at 400 V: 45 kW
- Rated power for three-phase motor inside delta at 400 V: 75 kW
- Rated operating voltage: 200-480 V
- Voltage type for actuating: AC
- Rated control supply voltage at AC 50 Hz: 100-240 V
- Rated control supply voltage at AC 60 Hz: 100-240 V
- Function: Single direction
- Degree of protection: IP2X
- Rated surrounding temperature without derating: 40 °C
- Dimensions (H x L x W): 206mm x 130mm x 72mm
- Weight: 2.25 kg
Key Features
- Integrated motor overload protection for enhanced safety.
- Adjustable release class for tailored performance.
- Internal bypass for reduced energy consumption.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal performance.
Applications
- Industrial: Motor control applications in manufacturing and processing plants
- Commercial: HVAC systems and other motor-driven equipment
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley SMC 3 Soft Starter 480V 85A ND3W is available now for immediate purchase, ideal for industrial and commercial motor control applications.
