Soft Starter for Asynchronous Motors | 230-440V | 4-7.5kW | Modbus by Clipsal
Soft starter with 230-440V range and 4-7.5kW motor power—ideal for industrial motors, pumps, and fans. Built for efficient operation with internal bypass and Modbus communication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

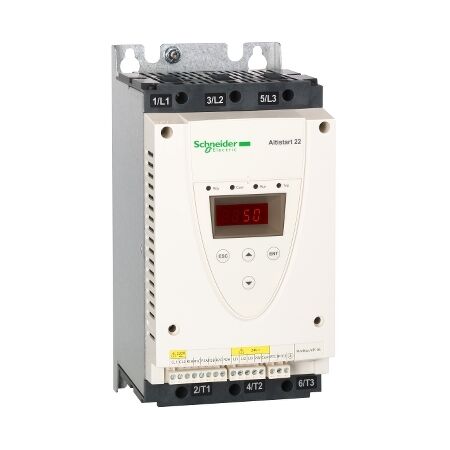

Product Name/Title: Altistart 22, Soft starter, ATS22 control 220V power 230V(4kW)/400...440V(7.5kW)
Brand: Clipsal
SKU: ATS22D17Q
Alternatively Known As: Soft starter, ATS22, Motor starter
Technical Specifications
- Rated supply voltage: 230...440 V
- Motor power: 4 kW (230 V), 7.5 kW (400 V, 440 V)
- IP degree of protection: IP20
- Control circuit voltage: 230 V
- Power dissipation: 39 W
- Cooling type: Forced convection
- Operating temperature: -10...40 °C
- Communication port: Modbus, RS485
- Discrete outputs: 2 relay outputs
- Discrete inputs: 3 logic inputs
- Dimensions (H x L x W): 265mm x 169mm x 130mm
- Weight: 7 kg
Key Features
- Soft starter for asynchronous motors with adjustable output current.
- Internal bypass function for efficient operation.
- Modbus communication protocol for easy integration.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Asynchronous motors, pumps, and fans
Standards & Compliance
- Complies with IEC 60947-4-2 for soft starters.
Environmental Benefits
- Complies with IEC standards for safety and performance.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Altistart 22 Soft Starter is available now for immediate purchase. Ideal for industrial applications requiring motor control.
