Soft Starter ATS22 | 220V-440V | Internal Bypass & Modbus | Clipsal
Soft starter with 220V-440V range and internal bypass—ideal for industrial pumps and fans. Built for motor control, with Modbus communication and phase failure protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

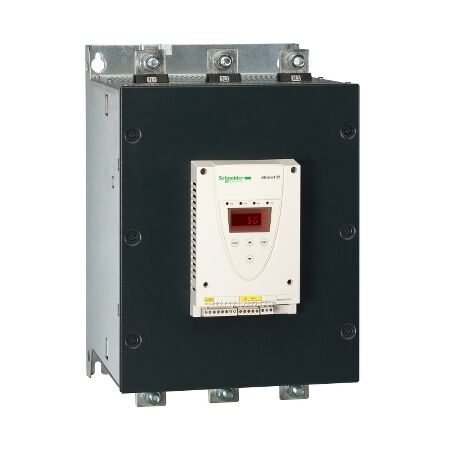

Product Name/Title: Altistart 22, Soft starter, ATS22 control 220V power 230V(160kW)/400V(315kW)/440V(355kW)
Brand: Clipsal
SKU: ATS22C59Q
Alternatively Known As: Soft starter, Motor starter, ATS22 soft starter
Technical Specifications
- Rated supply voltage: 230...440 V
- Power range: 110...220 kW at 200...240 V, 250...500 kW at 380...440 V
- Control circuit voltage: 230 V
- Utilisation category: AC-53A
- Type of start: Start with torque control
- Cooling type: Forced convection
- Operating temperature: -10...40 °C
- Noise level: 56 dB
- Electromagnetic compatibility: Level A
- Dimensions (H x L x W): 455mm x 339.7mm x 304mm
- Weight: 50 kg
Key Features
- Internal bypass function
- Modbus communication port
- Adjustable output current from 0.4 to 1 Icl
- Phase failure and thermal protection
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Pumps and fans
- General: Asynchronous motors
Standards & Compliance
- Complies with IEC 60947-4-2 for safety and performance standards.
Environmental Benefits
- Complies with environmental regulations including CE marking.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Altistart 22 Soft Starter is available now for immediate purchase. Ideal for industrial applications requiring motor control.
