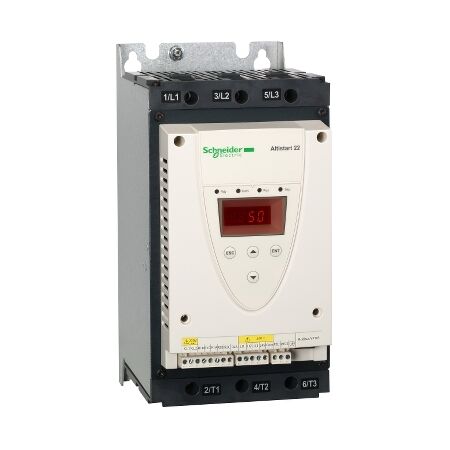

Altistart 22, Soft starter, ATS22 control 220V power 230V(22kW)/400...440V(45kW)

Soft Starter ATS22 | 22kW/45kW | Modbus & IP20 | Torque Control by Clipsal

BRAND: Clipsal

SKU: ATS22D88Q

$3,000.80 List price: $4,501.20

+ −

30 Days Return Delivery Options

Soft starter with 22kW at 230V and 45kW at 400V/440V—ideal for industrial motors, pumps, and fans. Built for efficient motor control, with Modbus communication and IP20 protection.

Description
Attachments

Product Name/Title: Altistart 22, Soft starter, ATS22 control 220V power 230V(22kW)/400...440V(45kW)

Brand: Clipsal

SKU: ATS22D88Q

Alternatively Known As: Soft starter, Motor starter, ATS22D88Q

Technical Specifications

Rated supply voltage: 230...440 V
Motor power: 22 kW at 230 V, 45 kW at 400 V and 440 V
Power dissipation: 66 W for standard applications
Utilisation category: AC-53A
Control circuit voltage: 230 V
Cooling type: Forced convection
Operating temperature: -10...40 °C
Vibration resistance: 1 gn
Noise level: 45 dB
Dimensions (H x L x W): 295mm x 207mm x 145mm
Weight: 12 kg

Key Features

Internal bypass function
Modbus communication port
Adjustable output current from 0.4 to 1 Icl
IP20 protection rating
Torque control starting method

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Asynchronous motors, pumps, and fans

Standards & Compliance

Complies with IEC 60947-4-2 for safety and performance standards.

Environmental Benefits

Complies with environmental regulations and standards.

Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Altistart 22 Soft Starter is available now for immediate purchase. Ideal for industrial applications requiring motor control.

ATS22D88Q (ATS22D88Q, 440 Kb) [Download]
