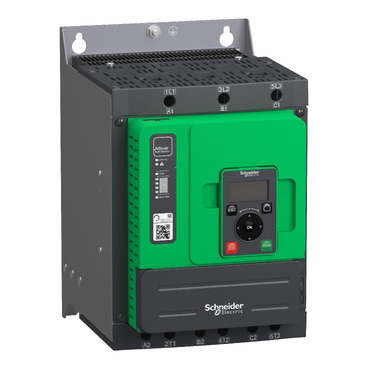

Soft Starter ATS480 62A | 208 to 690V AC | Integrated Bypass Contactor | Advanced Motor Protection | @Pack of 1 | by Clipsal
The Soft Starter ATS480 62A is designed for industrial motor control, operating efficiently within a voltage range of 208 to 690V AC. With advanced motor protection features and an integrated bypass contactor, it minimizes energy consumption and mechanical stress during startup. Ideal for applications like pumps, HVAC systems, and conveyors, this soft starter ensures reliable performance and compliance with global safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Soft Starter ATS480 62A | 208 to 690V AC | Integrated Bypass Contactor | Advanced Motor Protection | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHATS480D62Y
Alternatively Known As: ATS480 Soft Starter, Schneider Electric ATS480, Motor Soft Starter 62A, Industrial Soft Starter 208-690V, SCHATS480D62Y
Technical Specifications
- Rated operational current: 62A
- Operational voltage: 208-690V AC, 50/60Hz
- Control supply voltage: 110-250V AC/DC
- Integrated bypass contactor
- Protection: Overload, phase loss, phase imbalance, short circuit
- Communication: Modbus, Ethernet, Profibus (optional modules)
- Operating temperature: -25°C to +60°C
- Degree of protection: IP20
- Conforms to IEC/EN 60947-4-2
- Dimensions (H x L x W): 370mm x 210mm x 220mm
- Weight: 8.5 kg
Key Features
- Rated operational current: 62A
- Wide voltage range: 208 to 690V AC
- Advanced motor protection features
- Built-in bypass contactor for energy efficiency
- Flexible communication options (Ethernet, Modbus, Profibus, etc.)
- User-friendly interface with LCD display
- Compact design for easy panel integration
- Conforms to global safety and performance standards
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with industrial motor control equipment, following all relevant safety standards and wiring rules.
Applications
- Industrial motor control
- Pumps and fans
- HVAC systems
- Conveyors
- Compressors
- Water treatment plants
- Mining and heavy industry
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces energy consumption during motor startup
- Minimizes mechanical stress, extending equipment lifespan
- Decreases peak current demand, lowering overall power usage
Warranty Information
12 months manufacturer's warranty from date of purchase.
Available Now
The Clipsal Soft Starter ATS480 62A 208-690V (SCHATS480D62Y) is available for immediate purchase. Ideal for industrial motor control applications requiring reliable and efficient soft starting.
