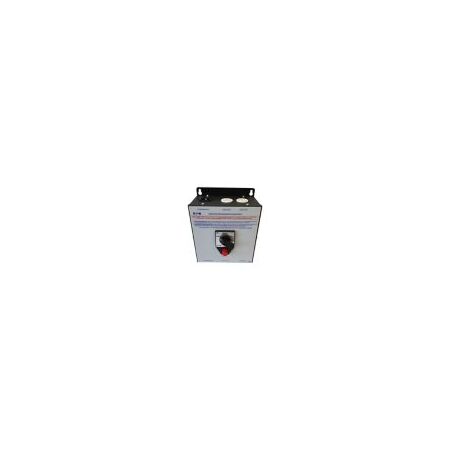

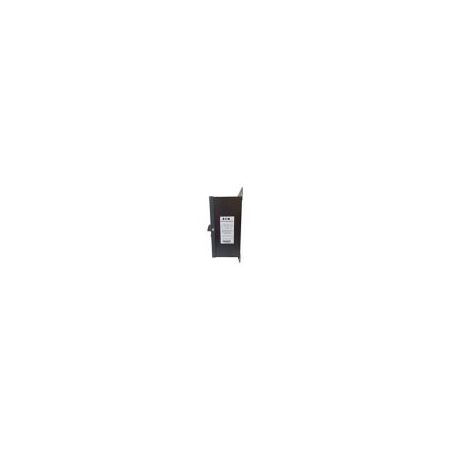

Softwired Bypass Switch 10A | 230V Input | Instant Transfer Time | Beige by Eaton
Softwired bypass switch with 10A capacity and 230V input—ideal for maintenance bypass in Eaton 9SX and 9PX UPS systems. Built for commercial and industrial applications, it features instantaneous transfer time and voltage-free relay interlock for safe operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Softwired Bypass Switch 10A | 230V Input | Instant Transfer Time | Beige by Eaton
Brand: Eaton
SKU: MBS2000SW1V2
Alternatively Known As: Eaton Maintenance Bypass Switch, Eaton 9SX Bypass Enclosure, Eaton 9PX Bypass Switch
Technical Specifications
- Product Name: Eaton 9SX Maintenance Bypass Enclosure Wraparound Single Input
- Input connection: C14
- Input nominal voltage: 230V default (220/230/240V)
- Nominal frequency: 50-60 Hz
- Input frequency range: 50Hz-60Hz
- Output nominal voltage: 230V default (220/230/240V)
- Electric current - max: 10A
- Feed type: 1
- Transfer time: 0 ms
- Communication: Voltage-free relay interlock
- Potential free switch contact: Yes
- Altitude: 0-1500m (0° to 40°C), 1500-3000m (0° to 35°C)
- Input voltage range: 192-264 V
- Output frequency: 50-60 Hz
- Output voltage range: 192-264 V
- Phase (input): Single-phase
- Phase (output): Single-phase
- Construction type: Free standing model
- Color: Beige
- Dimensions (H x L x W): 284mm x 156mm x 210mm
- Weight: 5 kg
Key Features
- Softwired bypass switch with force to bypass function
- Single input free standing model
- Voltage-free relay interlock for communication
- Potential free switch contact included
- Instantaneous transfer time of 0 ms
- Input and output nominal voltage 230V (220/230/240V)
- Max electric current 10A
- Single-phase input and output
- Input voltage range 192-264 V
- Output voltage range 192-264 V
- Nominal frequency 50-60 Hz
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper integration with UPS systems.
Applications
- Used with Eaton 9SX and 9PX UPS systems for maintenance bypass
- Data centers and IT infrastructure requiring uninterrupted power supply maintenance
- Industrial and commercial electrical systems needing safe bypass during UPS servicing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables safe maintenance without power interruption, reducing risk of equipment damage and waste
- Supports efficient power management and prolongs UPS system lifespan
Warranty Information
1 Year standard factory warranty.
Available Now
The Eaton 9SX-T / 9PX 700-2000VA 10A Softwired Bypass Switch is available now for immediate purchase. Ideal for maintenance bypass in UPS systems in commercial and industrial applications.
