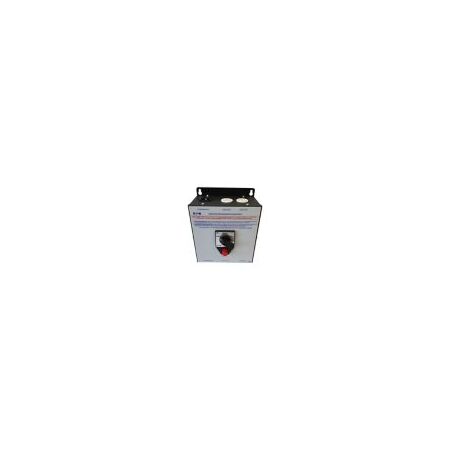

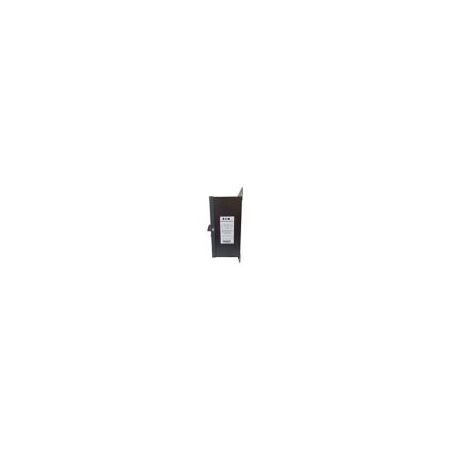

Softwired Bypass Switch 3000VA 16A | Force to Bypass Function | Voltage-Free Relay by Eaton
The Eaton 9SX-T / 9PX 3000VA softwired bypass switch features a force to bypass function and voltage-free relay communication—ideal for data centers and industrial UPS systems. Built for seamless maintenance without power interruption, it supports efficient power management and ensures compliance with electrical safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Softwired Bypass Switch 3000VA 16A | Force to Bypass Function | Voltage-Free Relay by Eaton
Brand: Eaton
SKU: MBS3000SW1V2
Alternatively Known As: Eaton 9SX Maintenance Bypass Enclosure, Eaton 9PX Bypass Switch, 3000VA UPS Bypass Switch
Technical Specifications
- Product Type: Bypass switch accessory
- Input Connection: C20
- Input Nominal Voltage: 230V default (220/230/240V)
- Nominal Frequency: 50-60 Hz
- Input Frequency Range: 50Hz-60Hz
- Output Nominal Voltage: 230V default (220/230/240V)
- Max Electric Current: 16A
- Feed Type: Single feed
- Transfer Time: 0 ms
- Communication: Voltage-free relay interlock
- Potential Free Switch Contact: Yes
- Altitude Operating Range: 0-1500m (0° to 40°C), 1500-3000m (0° to 35°C)
- Input Voltage Range: 192-264 V
- Output Frequency: 50-60 Hz
- Output Voltage Range: 192-264 V
- Phase Input: Single-phase
- Phase Output: Single-phase
- Construction Type: Free standing model
- Color: Beige
- Dimensions (H x L x W): 284mm x 156mm x 210mm
- Weight: 5 kg
Key Features
- Softwired bypass switch with force to bypass function
- Single input free standing model
- Voltage-free relay interlock communication
- Potential free switch contact included
- Transfer time of 0 ms for seamless switching
- Input and output nominal voltage of 230V (220/230/240V range)
- Max electric current of 16A
- Compatible with Eaton 9SX UPS systems
- Input connection type C20
- Single-phase input and output
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper integration with UPS systems.
Applications
- Data centers and server rooms for uninterrupted power supply maintenance
- Industrial and commercial electrical systems requiring bypass functionality
- UPS systems integration for maintenance and fault tolerance
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables maintenance without power interruption, reducing downtime and energy waste
- Supports efficient power management in critical systems
Warranty Information
1 Year standard factory warranty.
Available Now
The Eaton 9SX-T / 9PX 3000VA 16A Softwired Bypass Switch is available now for immediate purchase. Ideal for data centers, industrial, and commercial UPS maintenance applications.
