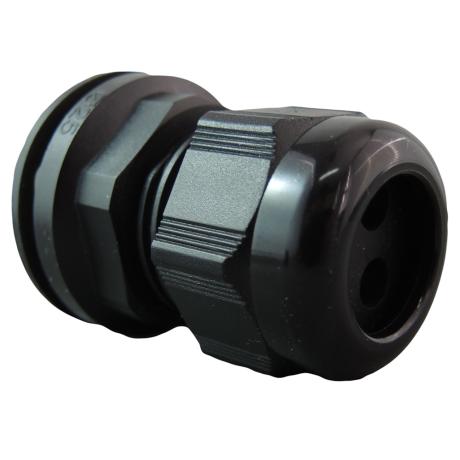

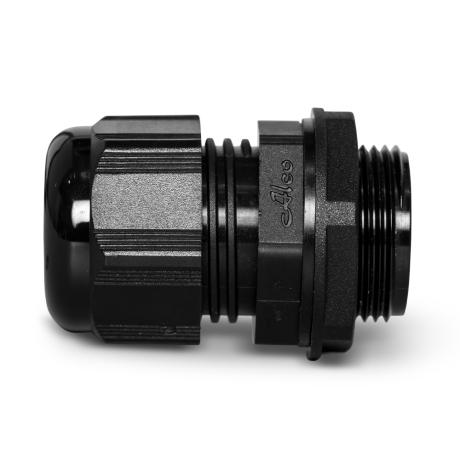

Solar Cable Gland Nylon M25 | IP68 Rated | UV Resistant & Halogen Free | by Wattmaster

BRAND: Alco
SKU: ALCMG25-MHS2M5
$3.40 List price: $4.10
+ −
30 Days Return Delivery Options
Solar Cable Gland Nylon M25 is designed for effective sealing of multiple cable sheaths, featuring IP68 protection for water and dust ingress up to 50 meters. Ideal for both indoor and outdoor solar panel installations, this durable gland is made from halogen-free material, ensuring environmental safety and longevity in harsh conditions.

Product Name/Title: Solar Cable Gland Nylon M25 | IP68 Rated | UV Resistant & Halogen Free | by Wattmaster

Brand: Wattmaster

SKU: ALCMG25-MHS2M5

Alternatively Known As: Nylon Cable Gland M25, Solar Cable Seal, Multi-hole Cable Gland, IP68 Cable Gland

Technical Specifications
  • Material: Nylon
  • Cable hole size: 2 x 5mm
  • Ingress Protection: IP68 (up to 50m underwater)
  • Operating Temperature: –30°C to +80°C (intermittent up to 150°C)
  • Locknut included
  • Dimensions (H x L x W): 25mm x 40mm x 25mm
  • Weight: 0.1 kg
Key Features
  • Provides seal on multiple cable sheaths
  • Halogen free material
  • UV resistant for outdoor durability
  • IP68 rated for water and dust ingress protection up to 50 meters
  • Locknut supplied as standard
  • Operating temperature range from –30°C to +80°C, with intermittent tolerance up to 150°C
Professional Installation Requirements
  • Installation by a qualified electrician or technician is recommended to ensure proper sealing and compliance with electrical standards.
Applications
  • Indoor and outdoor cable sealing for solar panel installations
  • Sealing multiple cable sheaths in electrical and solar power systems
  • Suitable for use in harsh environmental conditions requiring IP68 protection
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Halogen free material reduces environmental impact during disposal
  • UV resistance extends product life, reducing waste
  • IP68 rating ensures long-term protection, minimizing maintenance and replacement
Warranty Information

Standard manufacturer warranty applies; typically 1 year against manufacturing defects.

Available Now

Available for immediate purchase, ideal for solar and electrical cable sealing applications.
