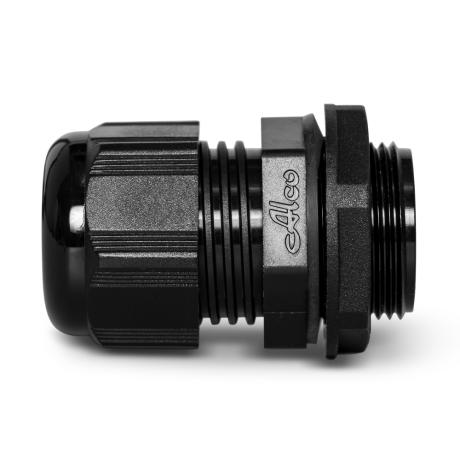

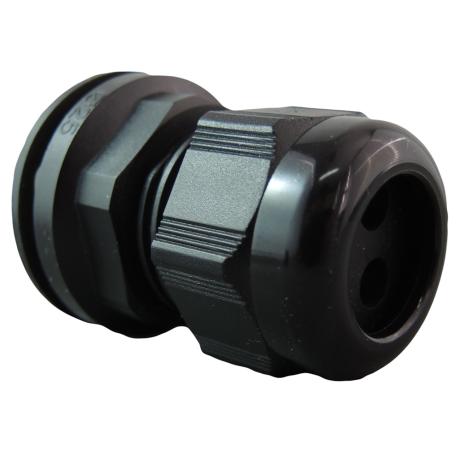

Solar Cable Gland Nylon M25 | IP68 Rated | UV Resistant & Halogen Free | by Wattmaster
The Solar Cable Gland Nylon M25 is designed for secure sealing of multiple cable sheaths, featuring an IP68 rating for water and dust protection up to 50 meters. Ideal for both indoor and outdoor solar panel installations, this gland is made from halogen-free, UV-resistant nylon, ensuring durability and safety in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Solar Cable Gland Nylon M25 | IP68 Rated | UV Resistant & Halogen Free | by Wattmaster
Brand: Wattmaster
SKU: ALCMG25-MHS4M5
Alternatively Known As: Nylon Solar Cable Gland, M25 Cable Hole Seal, IP68 Cable Gland, Multi-hole Cable Seal
Technical Specifications
- Material: Nylon
- Cable Hole Size: 4x5mm
- Thread Size: M25
- Ingress Protection: IP68 (up to 50m water depth)
- Operating Temperature: –30°C to +80°C (up to 150°C intermittent)
- UV Resistant
- Halogen Free
- Locknut Supplied
- Dimensions (H x L x W): 25mm x 40mm x 25mm
- Weight: 0.1 kg
Key Features
- Provides a secure seal on multiple cable sheaths
- Halogen free material for safety and environmental compliance
- UV resistant for durability in outdoor applications
- Includes locknut as standard for easy installation
- Operating temperature range from –30°C to +80°C, with intermittent tolerance up to 150°C
- IP68 rated for water and dust ingress protection up to 50 meters
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper sealing and compliance with electrical standards.
Applications
- Indoor and outdoor cable sealing for solar panel installations
- Sealing multiple cable sheaths in electrical and solar power systems
- Suitable for use in harsh environmental conditions requiring IP68 protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free material reduces harmful emissions in case of fire
- UV resistance extends product life, reducing waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Solar Cable Gland Nylon M25 Cable Hole Seals 4x5mm IP68 is available for immediate purchase, ideal for solar and electrical cable sealing applications.
