Solar Cable Gland Nylon M25 | IP68 Rated | UV Resistant | Multi-Hole Seal | by Wattmaster

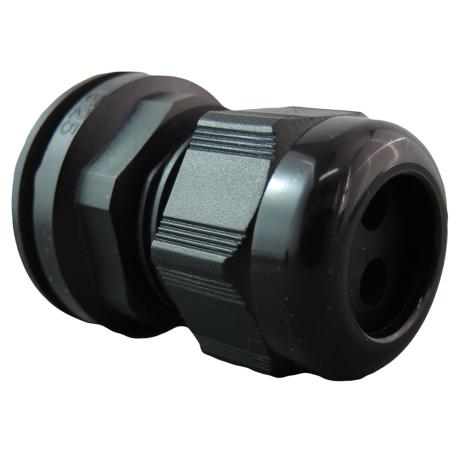

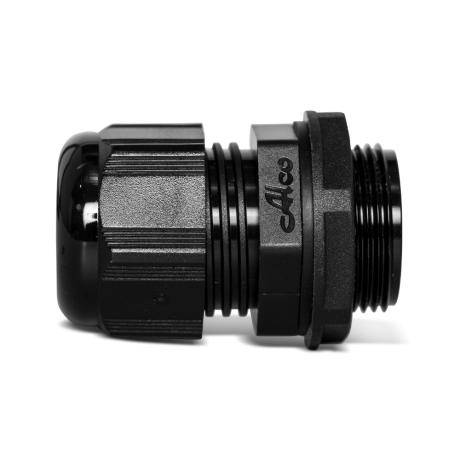

The Solar Cable Gland Nylon M25 is designed for effective sealing of multiple cable sheaths, featuring an IP68 rating for water and dust protection up to 50m. Ideal for both indoor and outdoor solar installations, this durable gland is made from UV resistant nylon, ensuring longevity and reliability in photovoltaic system cable management.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Solar Cable Gland Nylon M25 | IP68 Rated | UV Resistant | Multi-Hole Seal | by Wattmaster
Brand: Wattmaster
SKU: ALCMG25-MHS3M5
Alternatively Known As: Solar Cable Gland M25, Nylon Cable Hole Seal, Multi-hole Cable Gland, IP68 Cable Gland Seal
Technical Specifications
- Material: Nylon
- Cable hole size: 3 x 5mm
- Ingress Protection: IP68 (up to 50m underwater)
- Operating Temperature: –30°C to +80°C (up to 150°C intermittent)
- Includes locknut for secure installation
- UV resistant for outdoor use
- Dimensions (H x L x W): 40mm x 40mm x 25mm
- Weight: 0.1 kg
Key Features
- Provides seal on multiple cable sheaths
- Halogen free material
- UV resistant for outdoor durability
- IP68 rated for water and dust ingress protection up to 50m
- Locknut supplied as standard
- Operating temperature range from –30°C to +80°C (up to 150°C intermittent)
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper sealing and compliance with electrical standards.
Applications
- Indoor and outdoor solar cable sealing
- Sealing multiple cable sheaths in solar installations
- Suitable for photovoltaic system cable management
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen free material reduces environmental impact during disposal
- UV resistance extends product life, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Wattmaster Solar Cable Gland Nylon M25 Cable Hole Seals 3x5mm IP68 is available for immediate purchase, ideal for solar and outdoor electrical cable sealing applications.
