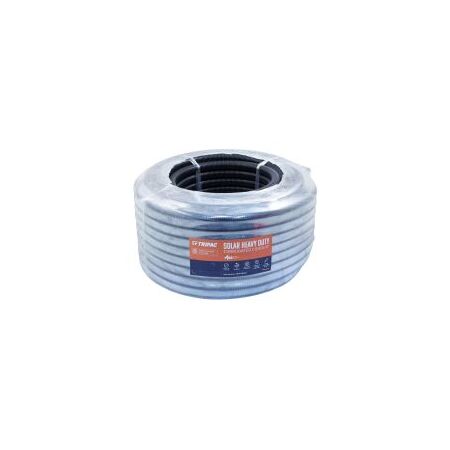

Solar Corrugated Conduit Heavy Duty 25mm Roll of 50m Black Tripac
Tripac solar corrugated conduit features 25mm diameter, 50m roll and heavy duty UV stable black construction. Ideal for protecting rooftop solar DC cabling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Solar Corro, Heavy Duty Solar Conduit, PVC Solar Corrugated Conduit, Flexible Solar Cable Conduit
Technical Specifications
- Product Code: CCS2550BK
- Conduit Type: Heavy Duty Solar Corrugated
- Nominal Conduit Size: 25 mm
- Roll Length: 50 m
- Colour: Black
- Material: Polyvinyl chloride (PVC)
- UV Stabilisation: 2% carbon black
- Temperature Range: -5°C to 60°C
- Compression Strength: Greater than 1250 N
- Flame Behaviour: Non-flame propagating
- Environmental Compliance: BEP certified
- Cable Markings: Conduit marked at 1 m intervals
- Dimensions (H x L x W): 470mm x 470mm x 240mm
- Weight: 8.2 kg
Key Features
- Heavy duty flexible conduit for solar photovoltaic cable protection
- UV stabilised black PVC construction for outdoor and rooftop applications
- Protects cabling against impact, water, weather, chemicals and corrosive environments
- Suitable for safeguarding and concealing PV DC cables
- Flexible design assists routing through complex installations
- Non-flame propagating construction
- Compatible with Tripac 25 mm conduit fittings
- Lead and mercury free
Professional Installation Requirements
- Installation should be completed by a licensed electrical contractor in accordance with manufacturer instructions, AS/NZS 3000 and AS/NZS 5033. Secure the conduit with suitable supports, use compatible fittings and seal or terminate the system as required for the installation environment.
Applications
- Rooftop solar photovoltaic DC cabling
- Residential solar PV installations
- Commercial solar PV installations
- Protection of electrical cables in exposed outdoor locations
- Cable routing through roof spaces and other areas requiring heavy duty mechanical protection
Standards & Compliance
- Manufactured in accordance with AS/NZS 61386.1:2015 including Amendment 1:2019 for general conduit requirements
- Manufactured in accordance with AS/NZS 61386.23:2022 for flexible conduit systems
- Use in photovoltaic array wiring systems should follow AS/NZS 5033:2021 installation and safety requirements
Environmental Benefits
- BEP certified for environmental compliance
- Lead and mercury free construction
- Tripac PVC conduit can be returned through the manufacturer's PVC take-back programme for recycling or reuse
- Durable UV-stabilised construction can extend service life and reduce replacement waste
Warranty Information
Cabac's general warranty policy provides a 12-month warranty from the date of purchase where no product-specific warranty is stated, subject to correct use and installation. Australian Consumer Law rights also apply.
Available Now
Available through Tripac, Cabac and authorised Australian electrical distributors; confirm current stock with the distributor.
