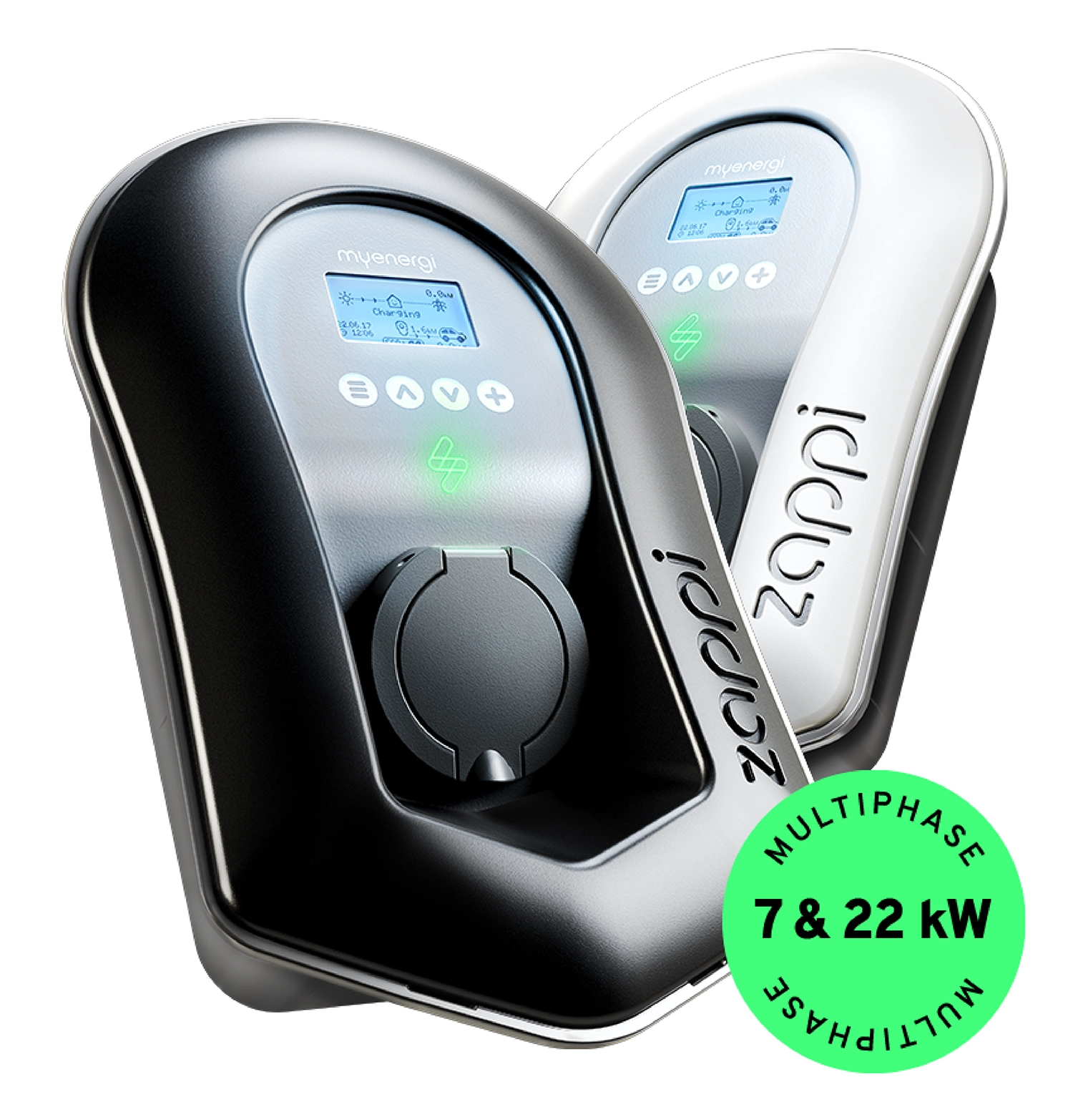

Solar EV Charger V2.1 zappi Multiphase | 7kW/22kW Power | IP65 Weatherproof | 6.5m Tethered Cable by My Energi
Charge your electric vehicle with the V2.1 zappi Multiphase solar EV charger, offering selectable power settings of 7kW single-phase or 22kW three-phase. Ideal for residential and commercial use, it features a 6.5-meter tethered cable and IP65 weatherproof design, ensuring reliable performance in any environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

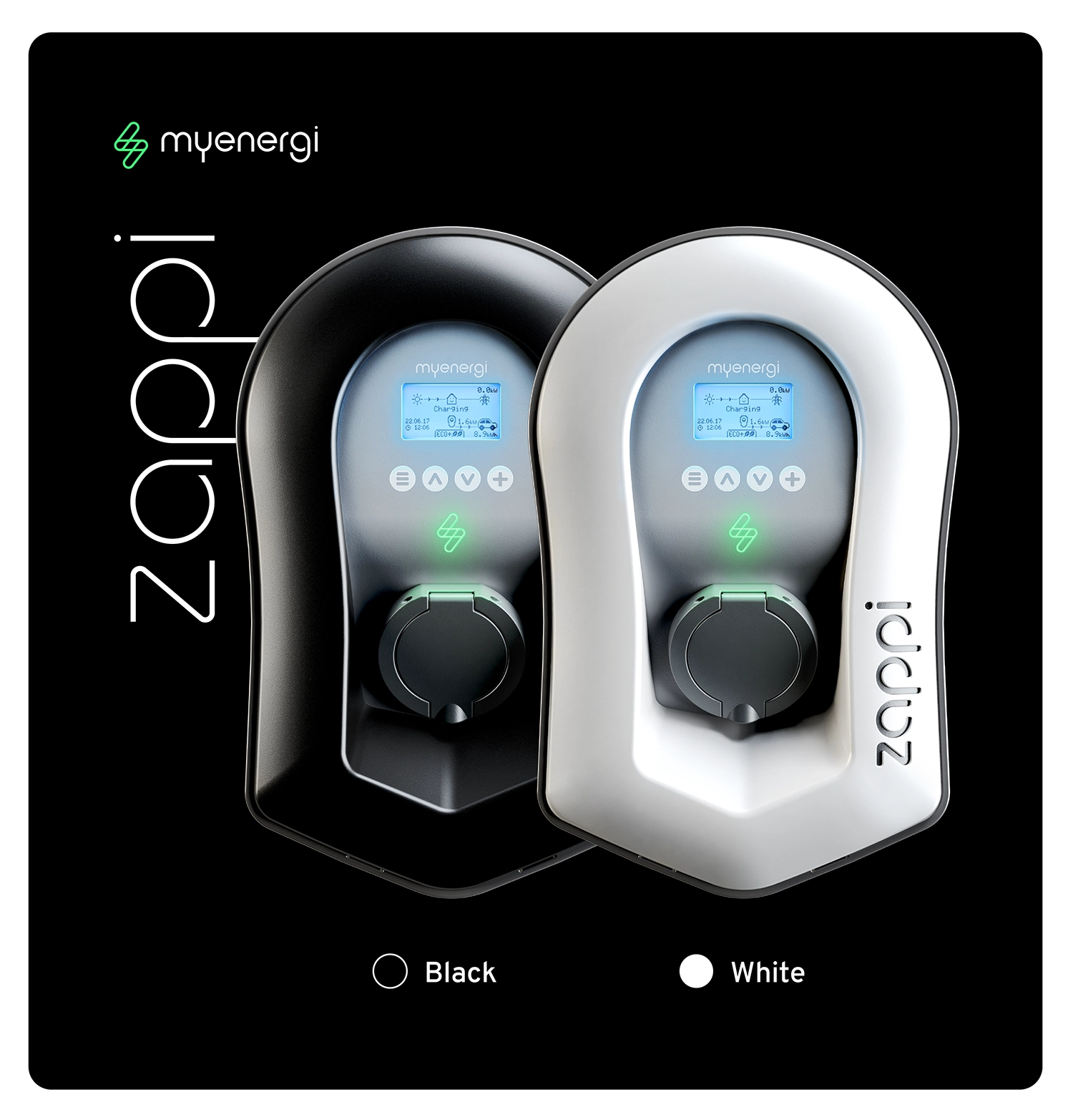

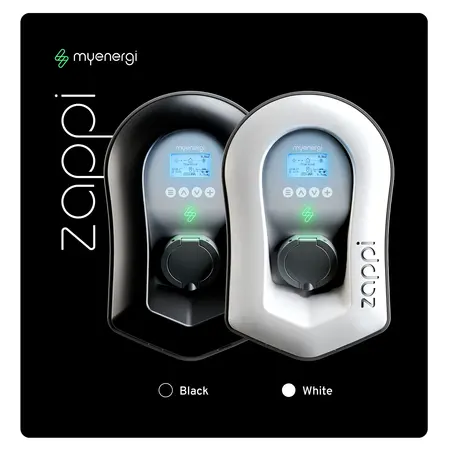

Product Name/Title: V2.1 zappi Multiphase (7kW/22kW) Tethered Black
Brand: My Energi
SKU: ZAPPI-2H22TB-T
Alternatively Known As: Solar EV Charger, Smart EV Charger, Multiphase EV Charger, Eco EV Charger, OCPP EV Charger
Technical Specifications
- Rated Power: 7kW single-phase or 22kW three-phase
- Rated Supply Voltage: 230V AC single-phase or 400V AC three-phase (+/- 10%)
- Supply Frequency: 50 Hz
- Rated Current: 32A max
- Standby Power Consumption: 3W
- Integral Earth Leakage Protection: 30mA Type A RCD + 6mA DC protection (EN 62955)
- Economy Tariff Sense: Input 230V AC sensing (4.0kV isolated)

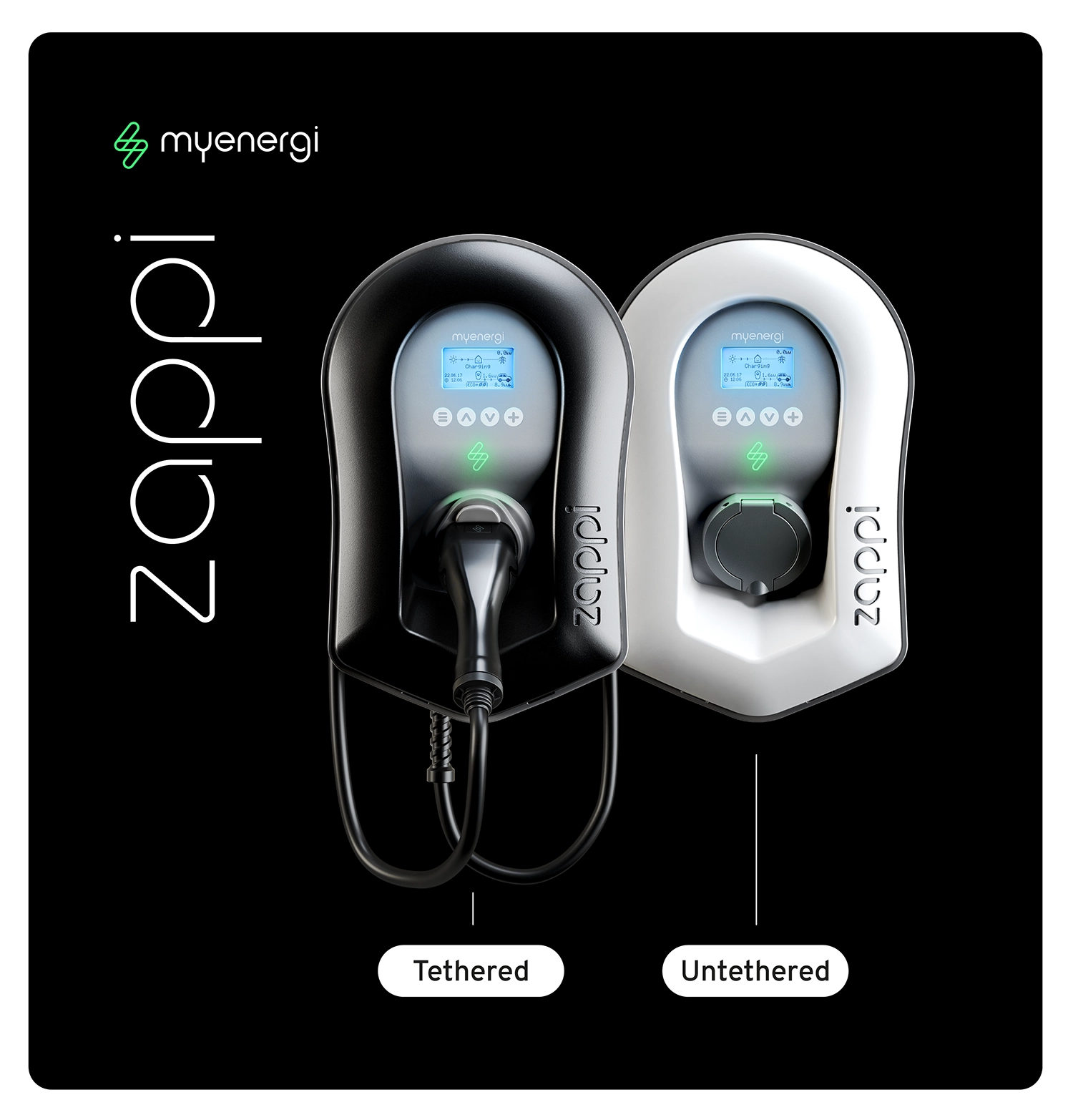

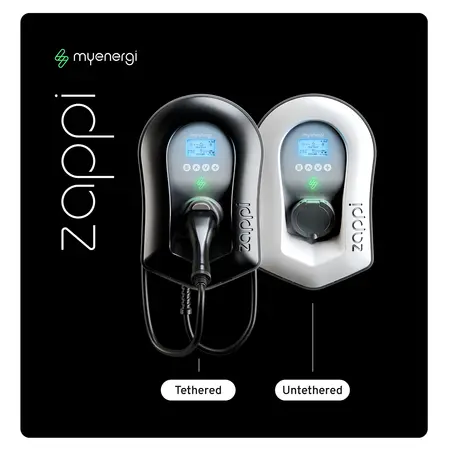

- Tethered Cable Length: 6.5 meters
- Enclosure Protection Degree: IP65 weatherproof
- Enclosure Material: ASA

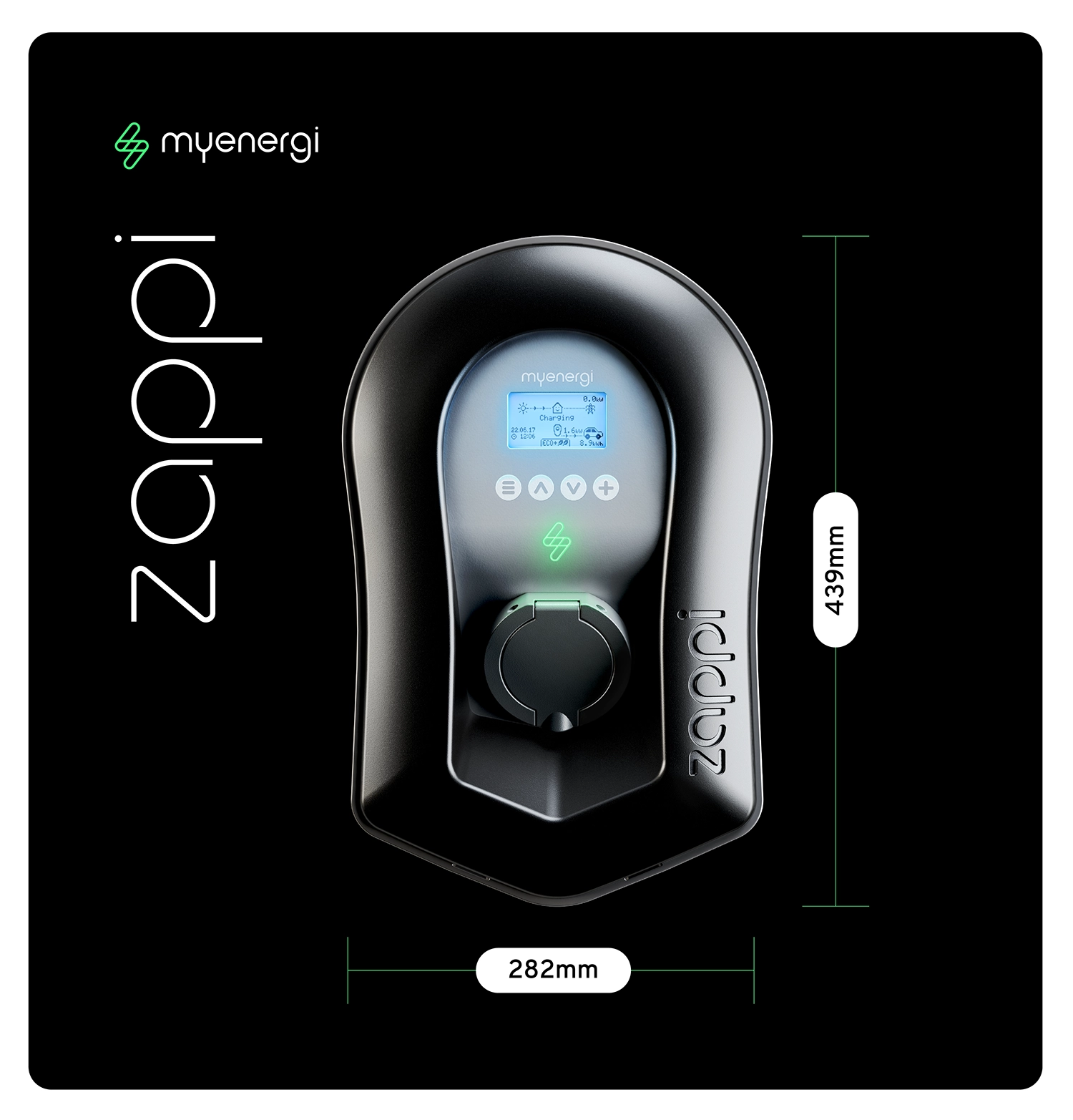

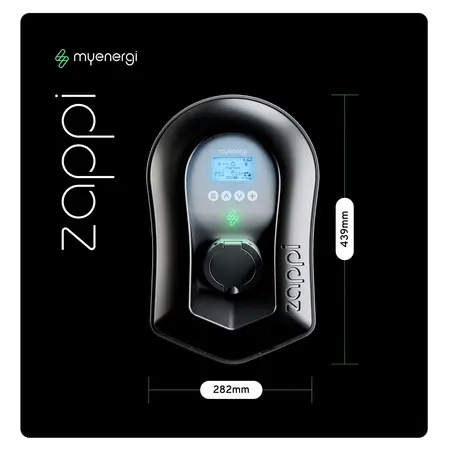

- Dimensions (H x L x W): 439mm x 122mm x 282mm
- Weight: 7 kg

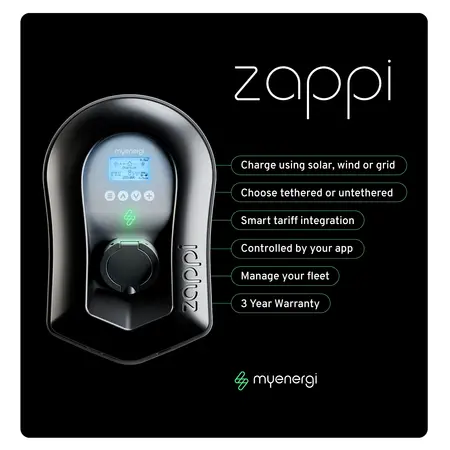

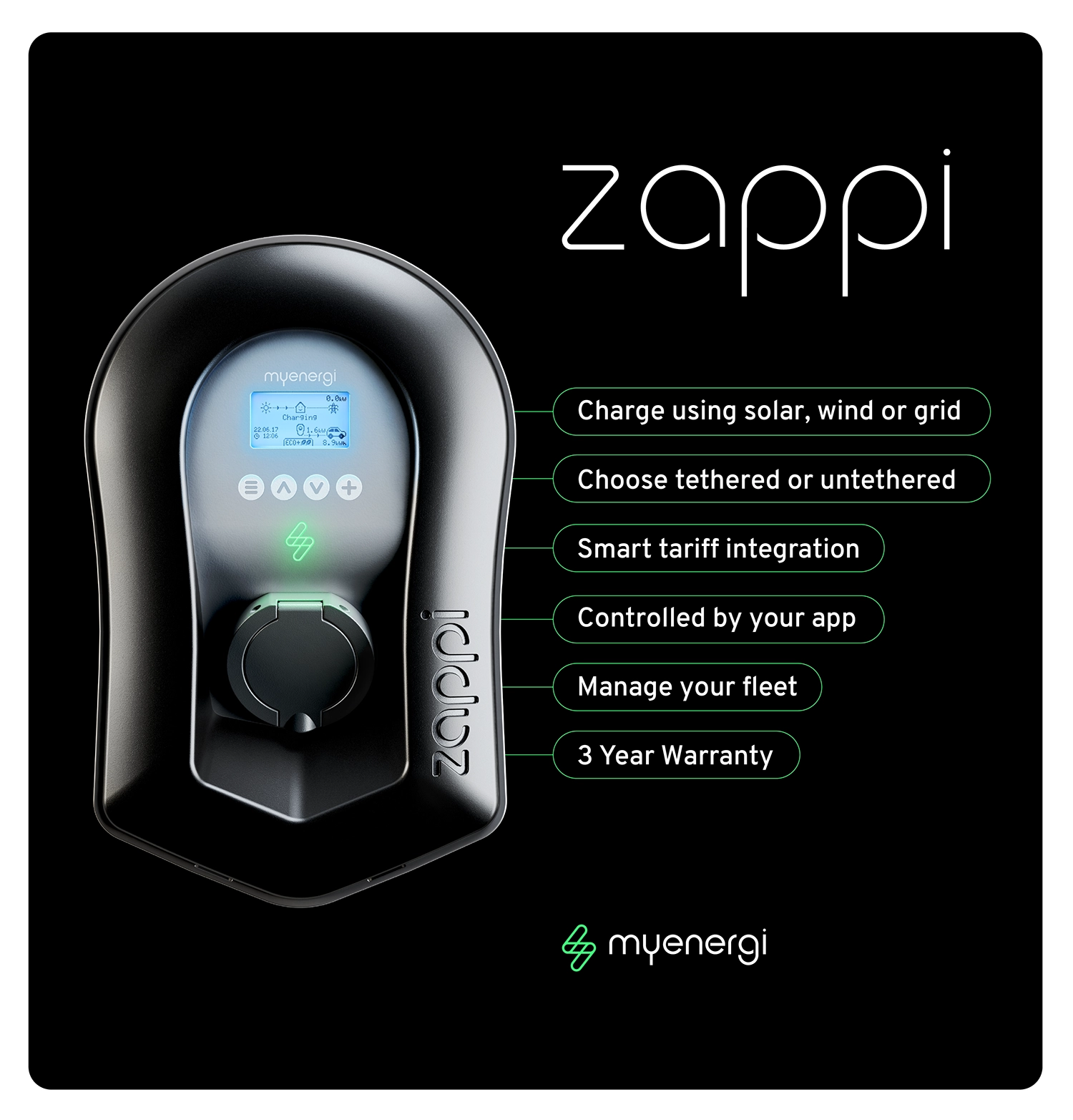

Key Features
- World’s first solar EV charger
- Selectable power settings: 7kW single-phase or 22kW three-phase
- Supports 100% green energy charging
- OCPP compliant for enhanced control and connectivity
- Integral earth leakage protection with 30mA Type A RCD and 6mA DC protection
- Weatherproof IP65 rated ASA enclosure
- 6.5 meter tethered cable

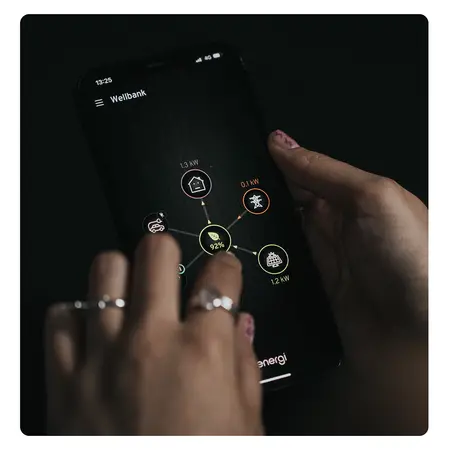

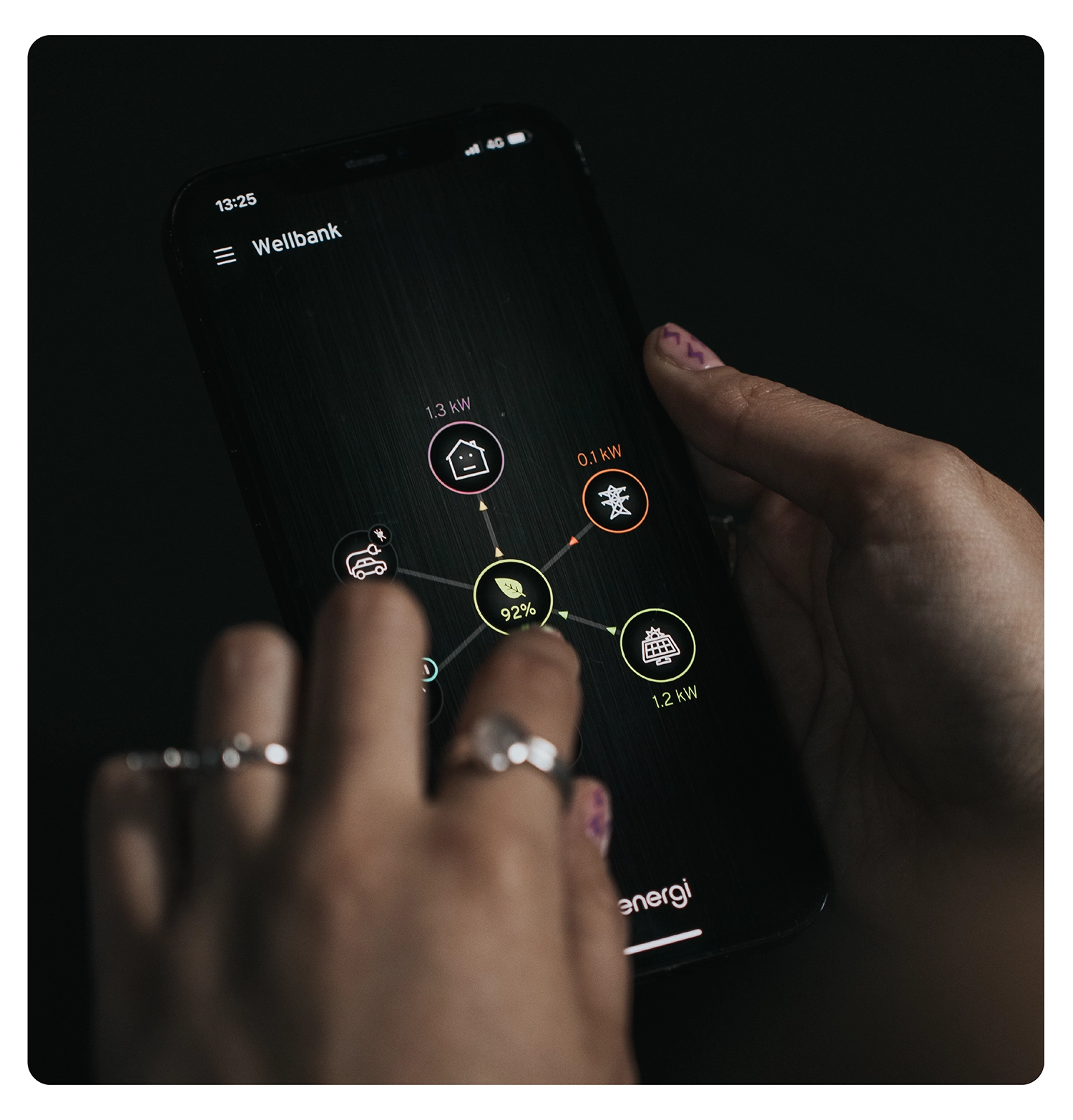

- Compatible with myenergi app for remote monitoring and control
Professional Installation Requirements
- Professional installation by a qualified electrician is required, ensuring compliance with local electrical standards and proper connection to single or three-phase supply with appropriate circuit breaker and earthing arrangements.
Applications
- Residential EV charging
- Commercial EV charging
- Eco-friendly electric vehicle charging solutions
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Enables charging using 100% renewable energy sources like solar and wind
- Reduces carbon footprint by maximizing use of green energy
- Supports off-peak charging to optimize grid energy use and reduce demand
Warranty Information
3 year warranty with registration and access to technical support.
Available Now
The My Energi V2.1 zappi Multiphase EV Charger is available for immediate purchase, ideal for residential and commercial eco-conscious electric vehicle charging.
