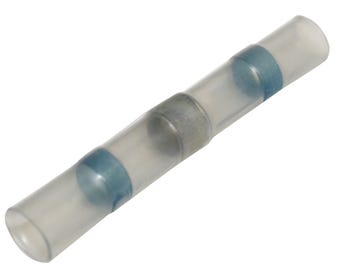

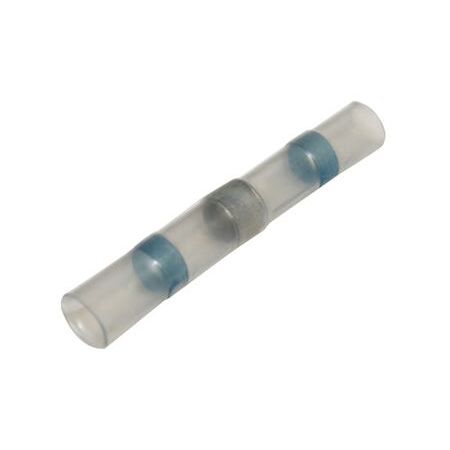

Soldersleeve Connector Blue 1.0-2.0mm² | Sealed Joint & Vibration Resistant | Heatshrink by Cabac

BRAND: CABAC
SKU: SSBL-X
$17.70 List price: $21.40
+
Cabac Soldersleeve Blue 1.0 - 2.0mm² is an adhesive lined heatshrink tube with low melt point fluxed solder, providing sealed, vibration-resistant electrical splices ideal for hostile or moist environments.

Product Name/Title: Soldersleeve Blue 1.0 - 2.0mm2

Brand: Cabac

SKU: SSBL-X

Alternatively Known As: Heatshrink Solder Splice, Solder Sleeve Connector, Heat Shrink Solder Sleeve, Electrical Solder Splice Tube

Technical Specifications
  • Melting temperature: 126 to 145°C
  • Temperature rating: -55 to +95°C
  • Dielectric strength: 15 kV/mm
  • Insulation resistance: 10^14 Meg Ohms
  • Mil Spec of Tubing: MIL-I-23053/4, Class 1 AMS-3634
  • Mil Spec of Solder: QQ5571E, MIL-S-14256
  • Dimensions (H x L x W): 5mm x 50mm x 20mm
  • Weight: 0.01 kg
Key Features
  • Completely sealed soldered joint created in one go
  • Heatshrink with internal glue liner melts and seals the joint
  • Provides good strain relief and high vibration resistance
  • Fast and efficient way of joining two conductors
  • Ideal for connections in hostile or moist environments
Professional Installation Requirements
  • Installation should be performed by a qualified electrician or trained professional using a heat gun set to approximately 250°C. Avoid open flames to prevent damage.
Applications
  • Electrical wiring connections requiring sealed and vibration-resistant joints
  • Connections in hostile or moist environments
  • Automotive, marine, and industrial electrical splicing
  • General electrical and power connectivity applications
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Reduces need for additional connectors and materials by providing a one-step splice
  • Durable sealed joint reduces risk of corrosion and electrical failure, extending product life
  • Minimizes waste by combining soldering and insulation in a single product
Warranty Information

Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.

Available Now

The Cabac Soldersleeve Blue 1.0 - 2.0mm² is available for immediate purchase. Ideal for electrical splicing in residential, commercial, and industrial applications.
