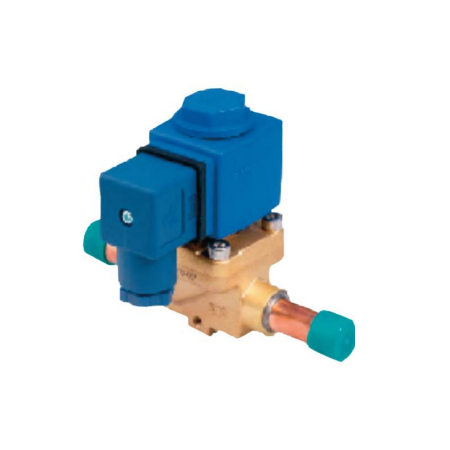

3/8" SOL Solenoid Valve | Wide Operating Temperature | High Maximum Pressure | Din Plug Connection | by Aspen Pumps
The 3/8" SOL Solenoid Valve is designed for efficient refrigeration and HVAC applications, featuring a wide operating temperature range from -40°C to 105°C and a high maximum operating pressure of 31 bar. Ideal for systems using HCFC, HFC, and A2L refrigerants, this valve ensures reliable control and compliance with safety standards, making it a perfect choice for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 3/8" SOL Solenoid Valve | Wide Operating Temperature | High Maximum Pressure | Din Plug Connection | by Aspen Pumps
Brand: Aspen Pumps
SKU: 705-06
Alternatively Known As: 3/8 inch Solenoid Valve, Refrigeration Solenoid Valve, HVAC Solenoid Valve, Aspen Solenoid Valve 3/8"
Technical Specifications
- Flow Coefficient (CV): 0.93
- Liquid Cooling Capacity (Kw) R-134A: 14.8
- Liquid Cooling Capacity (Kw) R-407c: 16.1
- Liquid Cooling Capacity (Kw) R-404a: 11.2
- Operating Temperature Range: -40°C to 105°C
- Maximum Operating Pressure: 31 bar
- Standard Working Pressure (SWP): 43 bar
- Electrical Connection: Din plug
- Dimensions (H x L x W): 88mm x 111mm x 40mm
- Weight: 0.5 kg
Key Features
- Suitable for HCFC, HFC, and A2L refrigerants
- Wide operating temperature range from -40°C to 105°C
- High maximum operating pressure up to 31 bar
- Din plug electrical connection
- Certified UL, VDE, and CQC for safety and quality
- Standard Working Pressure (SWP) of 43 bar
Professional Installation Requirements
- Installation should be performed by a qualified HVAC technician or licensed electrician to ensure compliance with safety standards and proper system integration.
Applications
- Refrigeration systems using HCFC, HFC, and A2L refrigerants
- Air conditioning units
- Industrial cooling applications
- HVAC systems requiring solenoid valve control
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Compatible with low global warming potential refrigerants (A2L)
- Supports efficient refrigeration system operation reducing energy consumption
Warranty Information
Warranty terms as per Aspen Pumps standard policy, typically 1-2 years against manufacturing defects.
Available Now
The Aspen 3/8" SOL Solenoid Valve is available for immediate purchase, ideal for refrigeration and HVAC system applications requiring reliable solenoid valve control.
