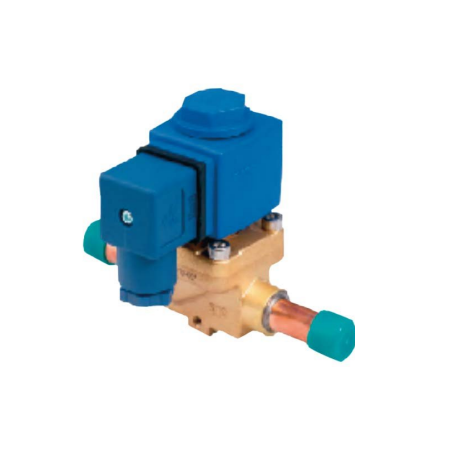

1/2" SOL Solenoid Valve | High Flow | -40°C to 105°C Operating Range | 31 Bar Max Pressure | by Aspen Pumps
The 1/2" SOL Solenoid Valve is designed for HVAC and refrigeration systems, offering a high flow coefficient of 2.2 and a wide operating temperature range from -40°C to 105°C. With a maximum operating pressure of 31 bar and compatibility with HCFC, HFC, and A2L refrigerants, this valve ensures precise flow control and reliable performance in industrial and commercial cooling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 1/2" SOL Solenoid Valve | High Flow | -40°C to 105°C Operating Range | 31 Bar Max Pressure | by Aspen Pumps
Brand: Aspen Pumps
SKU: 705-08
Alternatively Known As: Half Inch Solenoid Valve, 1/2" Refrigerant Solenoid Valve, HVAC Solenoid Valve, High Flow Solenoid Valve
Technical Specifications
- Flow Coefficient (CV): 2.2
- Liquid Kw R-134A: 35.3
- Liquid Kw R-407c: 38.2
- Liquid Kw R-404a: 26.7
- Operating Temperature Range: -40°C to 105°C
- Maximum Operating Pressure: 31 bar
- Safe Working Pressure (SWP): 43 bar
- Electrical Connection: Din plug
- Dimensions (H x L x W): 95mm x 127mm x 50mm
- Weight: 1.2 kg
Key Features
- Suitable for HCFC, HFC, and A2L refrigerants
- Wide operating temperature range from -40°C to 105°C
- High maximum operating pressure up to 31 bar
- Din plug electrical connection
- Certified UL, VDE, and CQC for safety and quality
- SWP (Safe Working Pressure) of 43 bar
Professional Installation Requirements
- Installation should be performed by a qualified HVAC technician or licensed plumber to ensure compliance with safety standards and proper system integration.
Applications
- HVAC systems using HCFC, HFC, and A2L refrigerants
- Refrigeration systems requiring precise flow control
- Industrial and commercial cooling applications
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Compatible with low global warming potential refrigerants (A2L)
- Supports energy-efficient HVAC and refrigeration system operation
Warranty Information
Standard manufacturer warranty applies, typically 12 months from date of purchase.
Available Now
The Aspen 1/2" SOL Solenoid Valve is available for immediate purchase, ideal for HVAC and refrigeration system applications requiring reliable refrigerant flow control.
