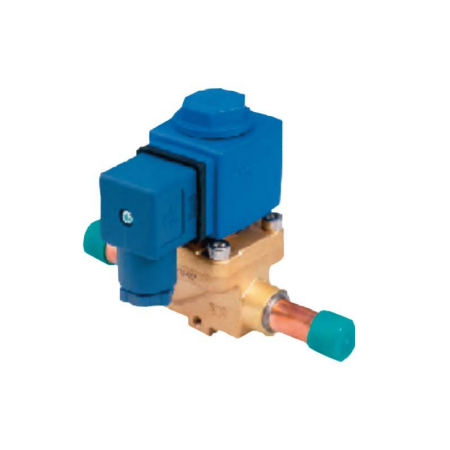

7/8" SOL Solenoid Valve | High Flow Refrigerant | Wide Operating Temperature | Certified Safety | by Aspen Pumps
The 7/8" SOL Solenoid Valve is designed for HVAC and refrigeration systems, offering high flow capabilities and a wide operating temperature range from -40°C to 105°C. This valve is suitable for HCFC, HFC, and A2L refrigerants, ensuring efficient operation and compliance with safety standards. With a maximum operating pressure of 31 bar and certified UL, VDE, and CQC, it’s the ideal choice for industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 7/8" SOL Solenoid Valve | High Flow Refrigerant | Wide Operating Temperature | Certified Safety | by Aspen Pumps
Brand: Aspen Pumps
SKU: 705-14
Alternatively Known As: 7/8 inch Solenoid Valve, High Flow Refrigerant Valve, HVAC Solenoid Valve, Refrigeration Solenoid Valve
Technical Specifications
- CV: 5.8
- Liquid Kw R-134A: 48.3
- Liquid Kw R-407c: 52.3
- Liquid Kw R-404a: 36.5
- Operating Temperature Range: -40°C to 105°C
- Maximum Operating Pressure: 31 bar
- Safe Working Pressure (SWP): 43 bar
- Electrical Connection: Din plug
- Dimensions (H x L x W): 117mm x 191mm x 70mm
- Weight: 1.5 kg
Key Features
- Suitable for HCFC, HFC, and A2L refrigerants
- Wide operating temperature range from -40°C to 105°C
- High maximum operating pressure up to 31 bar
- Din plug electrical connection
- Certified UL, VDE, and CQC for safety and quality
- SWP (Safe Working Pressure) of 43 bar
Professional Installation Requirements
- Installation by a qualified HVAC technician or licensed electrician is recommended to ensure compliance with safety standards and proper system integration.
Applications
- HVAC systems using HCFC, HFC, and A2L refrigerants
- Refrigeration systems requiring high flow solenoid valves
- Industrial and commercial refrigeration and air conditioning
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Compatible with low global warming potential refrigerants (A2L)
- Supports efficient refrigeration system operation reducing energy consumption
Warranty Information
Standard manufacturer warranty applies, typically 12 months against defects.
Available Now
The Aspen 7/8" SOL Solenoid Valve is available for immediate purchase, ideal for HVAC and refrigeration applications requiring reliable and certified solenoid valves.
