Solenoid Voltage/Continuity Tester | 5 to 600V AC/DC | CAT III 600V Rated | Vibrating Alert by Ideal Electrical
The Vol-Con® Solenoid Voltage/Continuity Tester is designed for electrical testing and troubleshooting, featuring a voltage range of 5 to 600V AC/DC and CAT III 600V rating for safety. Ideal for electricians and technicians, it vibrates to alert when AC voltage is detected and includes replaceable shielded probe tips for enhanced usability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

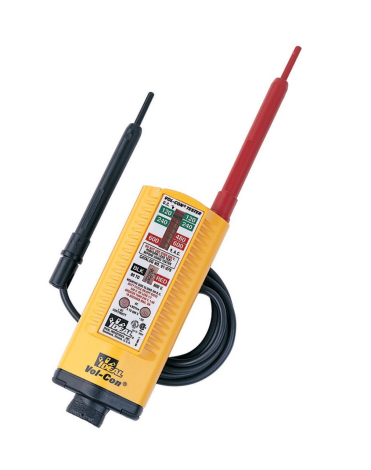

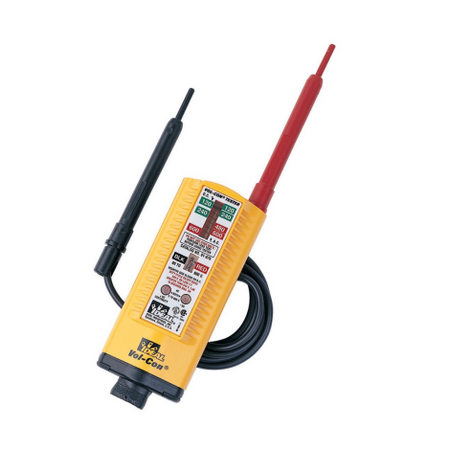

Product Name/Title: Vol-Con® Solenoid Voltage/Continuity Tester
Brand: Ideal Electrical
SKU: IDL61-076
Alternatively Known As: Voltage Tester, Continuity Tester, Solenoid Voltage Tester, Electrical Voltage Detector
Technical Specifications
- Voltage Range: 5 to 600V AC/DC
- CAT Rating: CAT III 600V
- Battery Type: (4) 1.5V LR44
- Indicator: Vibrating alert for AC voltage, bright LEDs, neon lamp
- Probe Tips: Replaceable, shielded, IEC61010-031 compliant
- Low Impedance: Yes, to eliminate ghost voltages
- Dual Voltage Indication: Yes
- Auto Power Off: No
- Auto Ranging: No
- Data Hold: No
- Audible Continuity: No
- Drop Protection: No
- IP Rating: None
- Dimensions (H x L x W): 180mm x 30mm x 50mm
- Weight: 0.2 kg
Key Features
- Rated CAT III 600V for safety in electrical environments
- Vibrates to alert when AC voltage is detected
- Indicates both AC and DC voltage levels from 5 to 600V
- DC polarity indication included
- Replaceable leads with shielded probe tips compliant with IEC61010-031
- Bright, long-life LEDs and neon indicator lamp for clear visibility
- Low impedance design eliminates ghost voltages
- Dual voltage indication for backup safety
Professional Installation Requirements
- No professional installation required; designed for use by qualified electricians and technicians.
Applications
- Electrical testing and troubleshooting for electricians and technicians
- Voltage detection in residential, commercial, and industrial electrical systems
- Continuity testing in wiring and electrical components
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces waste by extending product lifespan
- Low power consumption with battery-efficient operation
Warranty Information
Limited 2 Year warranty.
Available Now
The Ideal Electrical Vol-Con® Solenoid Voltage/Continuity Tester is available now for immediate purchase. Ideal for electrical testing and troubleshooting in various environments.
