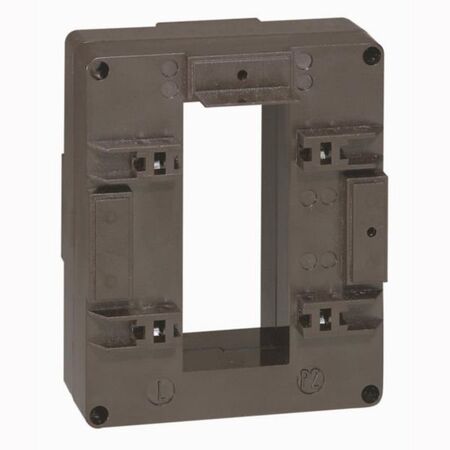

Solid Core Current Transformer 1250 5A Class 0.5 12VA Legrand
Legrand Solid Core current transformer, 1250 5A, Class 0.5, 12VA for accurate switchboard current measurement.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Model: Single-phase current converter
- Rated primary current: 1250 A
- Rated secondary current: 5 A
- Rated secondary apparent power: 12 VA
- Power consumption: 12 W
- Accuracy class: 0.5
- Overcurrent limiting factor: FS 5
- Calibrated: Yes
- Contact protection: Yes
- Secondary connection: Screw connection
- Number of primary inputs: 1
- Dimensions (H x L x W): 34mm x 100mm x 84mm
- Weight: 1.2 kg
Key Features
- Single-phase solid core current transformer
- Transformation ratio 1250/5
- Rated primary current: 1250 A
- Rated secondary current: 5 A
- Rated secondary apparent power: 12 VA
- Accuracy class 0.5
- Overcurrent limiting factor FS 5
- Calibrated for precise measurement
- Secondary connection via screw terminals
- Can be fixed on plate, EN 60715 rail, or bars
- Contact protection included
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper calibration.
Applications
- Residential and small commercial electrical panels
- Measurement and metering with ammeters, electricity meters, and multifunction measuring units
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables accurate energy measurement to optimize power usage and reduce waste
- Supports efficient electrical system monitoring for energy conservation
Warranty Information
Standard manufacturer warranty applies, typically 1 year against manufacturing defects.
Available Now
Legrand Single Phase Current Transformer CT 1250/5 is available for immediate purchase, ideal for residential and small commercial panel metering applications.
