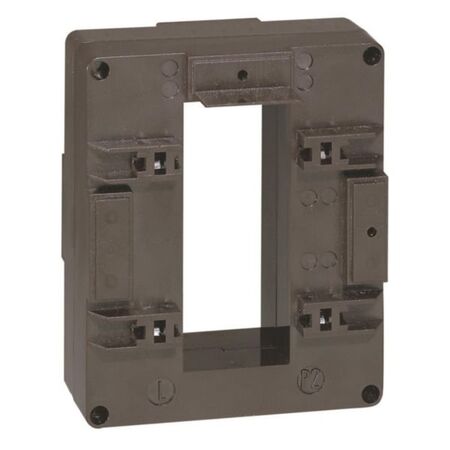

Solid Core Current Transformer 2000 5A Class 0.5 15VA Legrand

BRAND: Legrand
SKU: 412147
$370.60 List price: $461.90
1 EA ($370.60 per EA)
+ −
30 Days Return Electricians Unlock Trade Access
Legrand Solid Core current transformer, 2000 5A, Class 0.5, 15VA for accurate switchboard current measurement.
Technical Specifications
  • Model: Single-phase current converter
  • Rated primary current: 2000 A
  • Rated secondary current: 5 A
  • Rated secondary apparent power: 15 VA
  • Power consumption: 15 W
  • Accuracy class: 0.5%
  • Overcurrent limiting factor: FS 5
  • Calibrated: Yes
  • Contact protection: Yes
  • Secondary connection: Screw connection
  • Number of primary inputs: 1
  • Dimensions (H x L x W): 50mm x 150mm x 130mm
  • Weight: 1.2 kg
Key Features
  • Single-phase solid core current transformer
  • Transformation ratio 2000/5
  • Rated primary current: 2000 A
  • Rated secondary current: 5 A
  • Rated secondary apparent power: 15 VA
  • Accuracy class 0.5%
  • Overcurrent limiting factor FS 5
  • Calibrated for precise measurement
  • Secondary connection via screw terminals
  • Can be fixed on plate, EN 60715 rail, or bars
  • Contact protection included
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper calibration.
Applications
  • Residential and small commercial electrical panels
  • Used with ammeters, electricity meters, and multi-function measuring units
  • Measurement and metering of electrical current in single-phase systems
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Enables accurate energy measurement contributing to efficient energy management
  • Supports monitoring systems that help reduce energy waste
Warranty Information

Standard manufacturer warranty applies, typically 1 year against manufacturing defects.

Available Now

The Legrand Single Phase Current Transformer CT 2000/5 is available for immediate purchase, ideal for residential and small commercial panel metering applications.

F01960FR-03 (F01960FR-03.pdf, 753 Kb) [Download]

Guide Technique : EMDX³ transformateurs de courant (EXB20059_GT_EMDX3_Transformateurs_courant_FR.pdf, 2,895 Kb) [Download]

F01960EN-02 (F01960EN-02.pdf, 783 Kb) [Download]

Technical Guide: EMDX³ current transformers (EXB20060_TG_EMDX3_Current_transformers_EN.pdf, 2,912 Kb) [Download]

ex223001_0127 (ex223001_0127.pdf, 65 Kb) [Download]

ex223001_0128 (ex223001_0128.pdf, 67 Kb) [Download]
