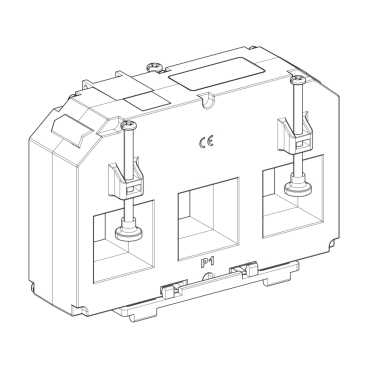

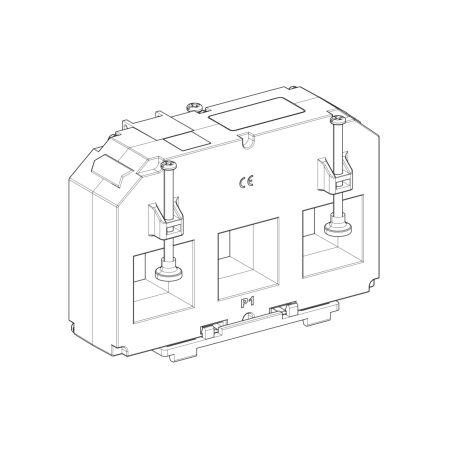

Solid Core Current Transformer 3-in-1 | 25mm Aperture | 160A/0.33V | Class 1 Accuracy | @Pack of 1 | by Clipsal
The Solid Core Current Transformer 3-in-1 is designed for reliable current measurement with a 25mm aperture, making it suitable for various cable sizes. With a current ratio of 160A/0.33V and Class 1 accuracy, it's perfect for energy metering in electrical switchboards and industrial automation panels. Built for compliance with Australian standards, this transformer supports energy efficiency initiatives by enabling precise monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Solid Core Current Transformer 3-in-1 | 25mm Aperture | 160A/0.33V | Class 1 Accuracy | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHMETSECTV25016
Alternatively Known As: Clipsal Current Transformer, LVCT 160A 0.33V, Solid Core CT, 3-in-1 Current Sensor, Clipsal SCHMETSECTV25016
Technical Specifications
- Type: Solid Core Current Transformer
- Configuration: 3-in-1
- Aperture: 25mm
- Current Ratio: 160A/0.33V
- Output: 0.33V
- Accuracy: Class 1
- Insulation: 600V
- Operating Temperature: -10°C to +55°C
- Dimensions (H x L x W): 80mm x 35mm x 60mm
- Weight: 0.6 kg
Key Features
- Solid core design for reliable current measurement
- 3-in-1 configuration for versatile installation
- 25mm aperture suitable for various cable sizes
- Current transformer ratio: 160A/0.33V
- High accuracy for energy monitoring applications
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with Australian electrical standards and safe operation.
Applications
- Electrical switchboards
- Energy metering systems
- Industrial automation panels
- Commercial and residential power monitoring
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise energy monitoring, supporting energy efficiency initiatives
- Assists in reducing unnecessary power consumption through accurate measurement
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal LVCT Solid Core 3in1 25mm CTR 160A 0.33V Current Transformer is available for immediate purchase. Ideal for energy metering and monitoring in commercial, industrial, and residential switchboards.
