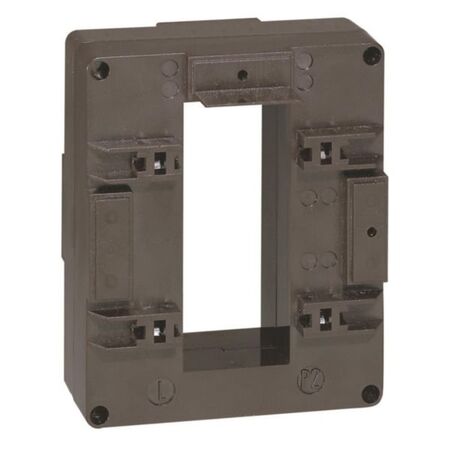

Solid Core Current Transformer 4000 5A Class 0.5 30VA Legrand

BRAND: Legrand
SKU: 412154
$556.90 List price: $694.00
1 EA ($556.90 per EA)
+ −
30 Days Return Electricians Unlock Trade Access
Legrand Solid Core current transformer, 4000 5A, Class 0.5, 30VA for accurate switchboard current measurement.
Technical Specifications
  • Model: Single-phase current converter
  • Rated primary current: 4000 A
  • Rated secondary current: 5 A
  • Rated secondary apparent power: 30 VA
  • Power consumption: 30 W
  • Accuracy class: 0.5
  • Overcurrent limiting factor: FS 5
  • Calibrated: Yes
  • Contact protection: Yes
  • Secondary connection: Screw connection
  • Number of primary inputs: 1
  • Dimensions (H x L x W): 54mm x 80mm x 127mm
  • Weight: 1.2 kg
Key Features
  • Single-phase solid core current transformer
  • Transformation ratio: 4000/5
  • Rated primary current: 4000 A
  • Rated secondary current: 5 A
  • Rated secondary apparent power: 30 VA
  • Accuracy class: 0.5
  • Overcurrent limiting factor: FS 5
  • Calibrated for precise measurement
  • Secondary connection via screw terminals
  • Contact protection included
  • Can be fixed on plate, EN 60715 rail, or bars
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper calibration.
Applications
  • Residential and small commercial electrical panels
  • Measurement and metering of electrical current
  • Use with ammeters, electricity meters, and multi-function measuring units
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Enables accurate energy measurement contributing to efficient energy management
  • Supports monitoring systems that help reduce energy waste
Warranty Information

Standard manufacturer warranty applies. Please refer to Legrand for specific warranty terms.

Available Now

The Legrand Single Phase Current Transformer CT 4000/5 is available for immediate purchase, ideal for residential and small commercial panel metering applications.

F01960FR-03 (F01960FR-03.pdf, 753 Kb) [Download]

F01960EN-02 (F01960EN-02.pdf, 783 Kb) [Download]

ex223001_0127 (ex223001_0127.pdf, 65 Kb) [Download]

ex223001_0128 (ex223001_0128.pdf, 67 Kb) [Download]
