Solid State Interface Relay 6A 1CO SPDT | 24V AC/DC | LED Indication by NHP
Solid state interface relay with 6A current and 1CO SPDT contact—ideal for industrial automation and control panels. Built for high reliability, with LED indication and compatibility with both AC and DC control voltages.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

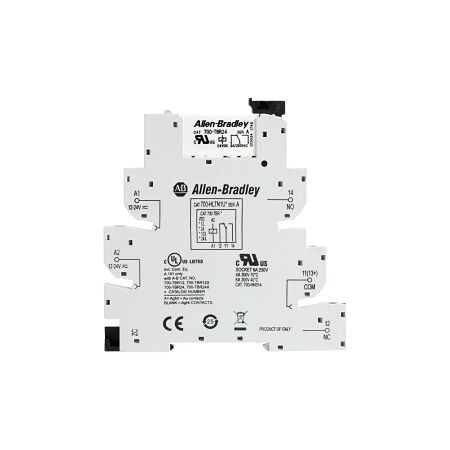

Product Name/Title: Allen-Bradley 700-HL Solid State Interface Relay 6A 1CO SPDT 24V AC DC Coil Standard Silver Contacts
Brand: NHP
SKU: 700HLT1U24
Alternatively Known As: Solid State Relay, Interface Relay, 700-HL Relay
Technical Specifications
- Nominal Current: 6 A
- Nominal Voltage AC: 250 V
- Number of Contacts: 1 CO SPDT
- Rated Switching Power at AC 1: 1500 VA
- Rated Switching Power at AC 15 230 V: 300 VA
- Breaking Capacity at DC 1 30 V: 6 A
- Voltage Type for Actuating: AC/DC
- Control Supply Voltage at AC 50 Hz: 24 V
- Control Supply Voltage at DC: 24 V
- Control Supply Voltage at AC 60 Hz: 24 V
- Type of Electric Connection: Screw connection
- Degree of Protection: IP20
- Operating Temperature: -40 to 55 °C
- Electrical Life: 100,000 cycles
- Mechanical Life: 10,000,000 cycles
- Dimensions (H x L x W): 88mm x 76mm x 62mm
- Weight: 0.5 kg
Key Features
- Solid state design for high reliability and longevity.
- LED indication for operational status.
- Suitable for both AC and DC control supply voltages.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Long operational life reduces waste and resource consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 700-HL Solid State Interface Relay is available now for immediate purchase, ideal for industrial and commercial applications.
