Solid State Interface Relay 6A | 220V to 24V DC | Gold Contacts by NHP
Solid state interface relay with 6A current and 220V to 24V DC coil—ideal for industrial automation systems. Built for high reliability with gold contacts and LED status indication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

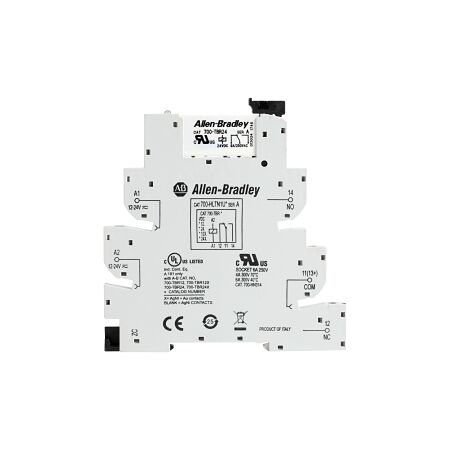

Product Name/Title: Allen-Bradley 700-HL Solid State Interface Relay 6A 1 CO SPDT 220V to 24V DC Coil Gold Contacts
Brand: NHP
SKU: 700HLT1Z24X
Alternatively Known As: Solid State Relay, Interface Relay, SPDT Relay
Technical Specifications
- Nominal Current: 6 A
- Nominal Voltage AC: 250 V
- Number of Contacts: 1 CO SPDT
- Rated Switching Power at AC 1: 1500 VA
- Rated Switching Power at AC 15 (230 V): 300 VA
- Breaking Capacity at DC 1 (30 V): 6 A
- Voltage Type for Actuating: DC
- Control Supply Voltage (AC 50 Hz): 24 V
- Control Supply Voltage (DC): 24 V
- Control Supply Voltage (AC 60 Hz): 24 V
- Electrical Life at Un in Service: 100,000 cycles
- Mechanical Life: 10,000,000 cycles
- Degree of Protection: IP20
- Material of Contact Surface: Gold
- Dimensions (H x L x W): 88mm x 76mm x 62mm
- Weight: 0.5 kg
Key Features
- Solid state design for high reliability and longevity.
- LED indication for operational status.
- Gold contacts for enhanced conductivity and reduced wear.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial automation systems
- Control circuits
- Signal switching
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Long operational life reduces waste and resource consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 700-HL Solid State Interface Relay is available now for immediate purchase, ideal for industrial automation and control applications.
