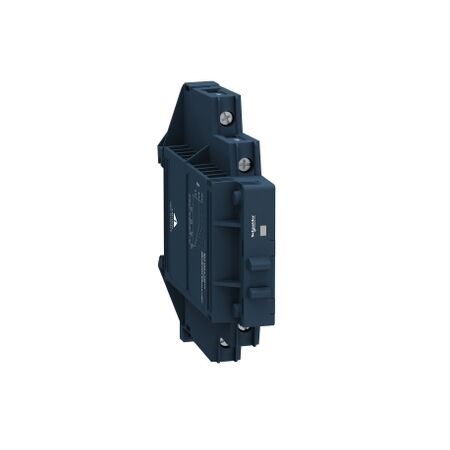

Solid State Modular Relay 12A | DIN Rail Mount | Random Switching by Clipsal
Solid state modular relay with 12A capacity and random switching—ideal for industrial automation and commercial HVAC systems. Built for reliable control, with DIN rail mount and wide input/output voltage range.
Sign in
Please login to continue to your account.
Product Name/Title: Harmony Solid State Relays, Solid state modular relay, 12A, DIN rail mount, random switching, input 4...32V DC, output 24...280V AC
Brand: Clipsal
SKU: SSM1A112BDR
Alternatively Known As: Solid State Relay, Modular Relay, DIN Rail Relay
- Rated current: 12A
- Insulation resistance: 1000 MOhm at 500 V DC
- Control circuit voltage: 4...32 V DC
- Surge current: 715 A for 16.6 ms
- Maximum voltage drop: <1.3 V on-state
- Dielectric strength: 4 kV AC for input/output
- Pollution degree: 2
- Flame retardance: V0 conforming to UL 94
- Dimensions (H x L x W): 90.3mm x 83.7mm x 18mm
- Weight: 0.09 kg
- Modular DIN rail relay with random voltage switching.
- Input voltage range of 4...32V DC and output voltage range of 24...280V AC.
- LED indicator for input status.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Automation systems, machinery control
- Commercial: HVAC systems, lighting control
- Complies with IEC 60950-1, IEC 61000, IEC 62314
- Green Premium product with sustainable packaging.
1 year warranty against manufacturing defects.
The Clipsal Harmony Solid State Relay is available now for immediate purchase. Ideal for industrial automation and control applications.
