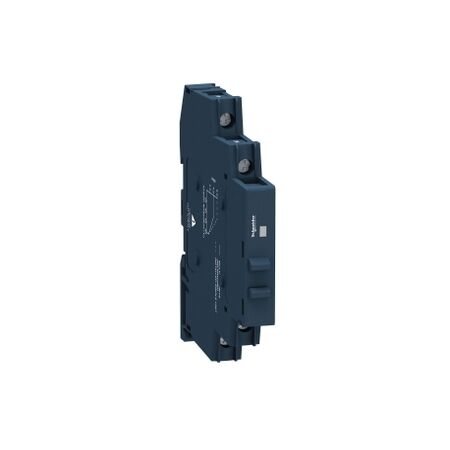

Solid State Modular Relay 6A | DC Switching | DIN Rail Mount by Clipsal

BRAND: Clipsal
SKU: SSM1D36BD
$85.20 List price: $127.80
+
Solid state modular relay with 6A current and DC switching—ideal for industrial automation and commercial HVAC systems. Built for easy installation with DIN rail mount and LED input status indicator.

Product Name/Title: Harmony Solid State Relays, Solid state modular relay, 6A, DIN rail mount, DC switching, input 4...32V DC, output 1…100V DC

Brand: Clipsal

SKU: SSM1D36BD

Alternatively Known As: Solid State Relay, Modular Relay, DC Relay

Technical Specifications
  • Rated current: 6A
  • Control circuit voltage: 4...32V DC
  • Output voltage: 1...100V DC
  • Insulation resistance: 1000 MOhm at 500V DC
  • Response time: 0.6 ms (turn-on), 0.3 ms (turn-off)
  • Surge current: 60A for 10 ms
  • Flame retardance: V0 conforming to UL 94
  • Dielectric strength: 4kV DC for input/output
  • Dimensions (H x L x W): 90.3mm x 83.7mm x 11mm
  • Weight: 0.05 kg
Key Features
  • Modular DIN rail relay design for easy installation.
  • DC switching capability for versatile applications.
  • LED indicator for input status.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Automation systems, machinery control
  • Commercial: HVAC systems, lighting control
Standards & Compliance
  • Complies with IEC 62314, IEC 61000, IEC 60950-1
Environmental Benefits
  • Green Premium product with environmentally friendly packaging.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Clipsal Harmony Solid State Relay is available now for immediate purchase. Ideal for industrial and commercial applications.

SSM1D36BD (SSM1D36BD, 391 Kb) [Download]
