Solid State Modular Relay 6A | DIN Rail Mount | Random Switching by Clipsal
Solid state modular relay with 6A current and random switching—ideal for industrial automation and control. Built for easy installation on DIN rails, with wide input voltage range and robust performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

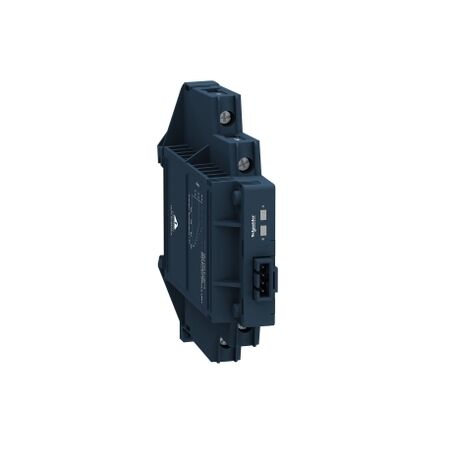

Product Name/Title: Harmony Solid State Relays, Solid state modular relay, 6A, DIN rail mount, random switching, input 4...32V DC, output 24…280V AC
Brand: Clipsal
SKU: SSM2A16BDR
Alternatively Known As: Solid State Relay, Modular Relay, DIN Rail Relay
Technical Specifications
- Rated current: 6A
- Control circuit voltage: 4...32V DC
- Output voltage: 24...280V AC
- Insulation resistance: 1000 MOhm at 500V DC
- LED local signaling for input status
- Surge current: 715A for 16.6ms
- Response time: 0.5 cycle (turn-off), 0.1ms (turn-on)
- Flame retardance: V0 conforming to UL 94
- Dimensions (H x L x W): 90mm x 84mm x 18mm
- Weight: 0.1 kg
Key Features
- Modular DIN rail relay design for easy installation.
- Random voltage switching capability.
- Wide input voltage range of 4...32V DC.
- Output voltage range of 24...280V AC.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal performance.
Applications
- Industrial: Automation systems, machinery control
- Commercial: HVAC systems, lighting control
Standards & Compliance
- Complies with IEC 62314, IEC 60950-1, IEC 61000 standards.
Environmental Benefits
- Complies with environmental regulations and standards.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Clipsal Harmony Solid State Relay is available now for immediate purchase. Ideal for industrial automation and control applications.
