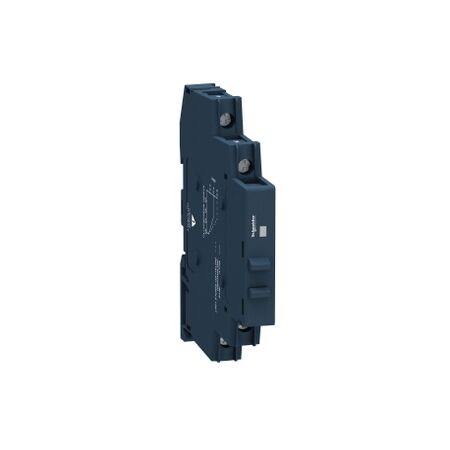

Solid State Modular Relay 6A | DIN Rail Mount | Zero Voltage Switching by Clipsal

BRAND: Clipsal
SKU: SSM1A36BD
$99.30 List price: $148.90
+
Solid state modular relay with 6A current and zero voltage switching—ideal for industrial automation and control. Built for efficient operation, with easy DIN rail installation and LED input status indicator.

Product Name/Title: Harmony Solid State Relays, Solid state modular relay, 6A, DIN rail mount, zero voltage switching, input 4...32V DC, output 48…600V AC

Brand: Clipsal

SKU: SSM1A36BD

Alternatively Known As: Solid State Relay, Modular Relay, DIN Rail Relay

Technical Specifications
  • Rated current: 6A
  • Control circuit voltage: 4...32V DC
  • Output voltage: 48...600V AC
  • Insulation resistance: 1000 MOhm at 500 V DC
  • Surge current: 285A for 16.6 ms
  • Response time: 0.5 cycle (turn-on and turn-off)
  • Flame retardance: V0 conforming to UL 94
  • Pollution degree: 2
  • Dimensions (H x L x W): 90.3mm x 83.7mm x 11mm
  • Weight: 0.05 kg
Key Features
  • Zero voltage switching for efficient operation.
  • DIN rail mount for easy installation.
  • LED indicator for input status.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Automation systems, machinery control
  • Commercial: HVAC systems, lighting control
Standards & Compliance
  • Complies with IEC 62314, IEC 61000, IEC 60950-1
Environmental Benefits
  • Green Premium product with sustainable packaging.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Clipsal Harmony Solid State Relay is available now for immediate purchase. Ideal for industrial automation and control applications.

SSM1A36BD (SSM1A36BD, 347 Kb) [Download]
