Solid State Modular Relay 6A | Zero Voltage Switching | DIN Rail Mount by Clipsal
Solid state modular relay with 6A current and zero voltage switching—ideal for industrial automation and control. Built for reliability, with easy DIN rail mounting and LED input status indicator.
Sign in
Please login to continue to your account.

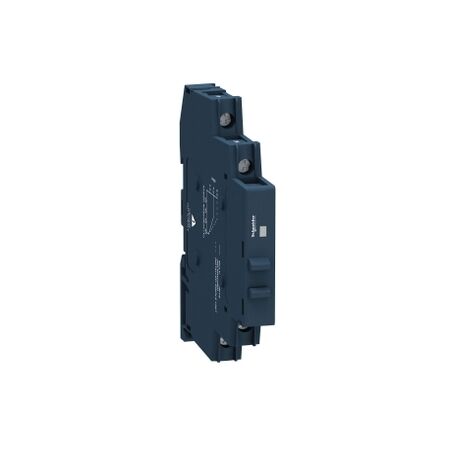

Product Name/Title: Harmony Solid State Relays, Solid state modular relay, 6A, DIN rail mount, zero voltage switching, input 18…36V AC, output 24...280V AC
Brand: Clipsal
SKU: SSM1A16B7
Alternatively Known As: Solid State Relay, Modular Relay, DIN Rail Relay
- Rated current: 6A
- Input voltage: 18...36V AC
- Output voltage: 24...280V AC
- Insulation resistance: 1000 MOhm at 500 V DC
- Control circuit voltage: 18...36V AC
- Surge current: 285A for 16.6 ms
- Response time: 0.5 cycle (turn-on), 30 ms (turn-off)
- Overvoltage category: III
- Flame retardance: V0 conforming to UL 94
- Dimensions (H x L x W): 90.3mm x 83.7mm x 11mm
- Weight: 0.05 kg
- Zero voltage switching for enhanced reliability.
- DIN rail mount for easy installation.
- LED indicator for input status.
- Professional installation by a qualified technician is recommended for optimal performance.
- Industrial: Automation systems, machinery control
- Commercial: HVAC systems, lighting control
- Complies with IEC 60950-1, IEC 61000, IEC 62314.
- Green Premium product with packaging made from recycled materials.
1 year warranty against manufacturing defects.
The Clipsal Harmony Solid State Relay is available now for immediate purchase. Ideal for industrial automation and control applications.
