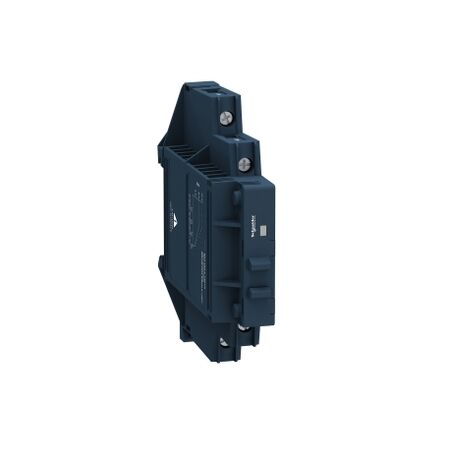

Solid State Relay 12A | DIN Rail Mount | Zero Voltage Switching by Clipsal

BRAND: Clipsal
SKU: SSM1A112BD
$113.60 List price: $170.40
+
Solid state relay with 12A capacity and zero voltage switching—ideal for industrial automation and control. Built for efficient operation, with easy DIN rail mounting and LED input status indicator.

Product Name/Title: Harmony Solid State Relays, Solid state modular relay, 12A, DIN rail mount, zero voltage switching, input 4...32V DC, output 24...280V AC

Brand: Clipsal

SKU: SSM1A112BD

Alternatively Known As: Solid State Relay, Modular Relay, DIN Rail Relay

Technical Specifications
  • Rated current: 12A
  • Control circuit voltage: 4...32V DC
  • Output voltage: 24...280V AC
  • Insulation resistance: 1000 MOhm at 500 V DC
  • Surge current: 715A for 16.6 ms
  • Maximum leakage current: 0.1 mA off-state
  • Response time: 0.5 cycle (turn-on), 0.5 cycle (turn-off)
  • Flame retardance: V0 conforming to UL 94
  • Dimensions (H x L x W): 90.3mm x 83.7mm x 18mm
  • Weight: 0.09 kg
Key Features
  • Zero voltage switching for efficient operation.
  • DIN rail mount for easy installation.
  • LED indicator for input status.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Automation systems, machinery control
  • Commercial: HVAC systems, lighting control
Standards & Compliance
  • Complies with IEC 60950-1, IEC 61000, IEC 62314
Environmental Benefits
  • Energy-efficient design reduces power consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Clipsal Harmony Solid State Relay is available now for immediate purchase. Ideal for industrial automation and control applications.

SSM1A112BD (SSM1A112BD, 361 Kb) [Download]
