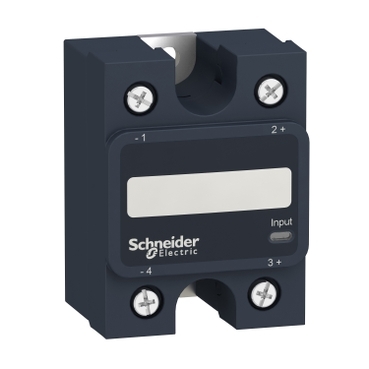

Solid State Relay 240VAC | 50A Load Current | Zero-Crossing Switching | Compact Design | @Pack of 1 | by Clipsal
The Solid State Relay 240VAC is designed for silent and reliable switching, rated for a 50A load current. Ideal for industrial automation, HVAC control panels, and lighting control, it features zero-crossing switching for enhanced performance and longevity. With no moving parts, this relay ensures a long operational life and minimal heat generation, making it a perfect choice for efficient process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Solid State Relay 240VAC | 50A Load Current | Zero-Crossing Switching | Compact Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHSSP1A150M7T
Alternatively Known As: Solid State Relay 50A, SSR 240VAC 50A, Clipsal SSR, SCHSSP1A150M7T Relay, Industrial Solid State Relay
Technical Specifications
- Type: Solid State Relay
- Coil Voltage: 240VAC
- Load Current: 50A
- Switching Type: Zero-crossing
- Input Control: AC
- Output: AC
- Mounting: Panel mount
- Isolation: Optical isolation between input and output
- Operating Temperature: -30°C to +80°C
- Dimensions (H x L x W): 60mm x 110mm x 45mm
- Weight: 0.25 kg
Key Features
- Solid state relay for silent, reliable switching
- Rated for 50A load current
- 240VAC coil voltage
- Long operational life with no moving parts
- Fast switching response
- Compact design for easy panel integration
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with Australian electrical safety standards.
Applications
- Industrial automation systems
- HVAC control panels
- Lighting control
- Motor switching
- Process control equipment
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- No mechanical contacts, reducing wear and electronic waste
- Energy-efficient operation with minimal heat generation
- Longer lifespan reduces replacement frequency
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SCHSSP1A150M7T Solid State Relay 240VAC Coil 50A is available for immediate purchase. Ideal for industrial automation, HVAC, and process control applications.
