Trade Discount 33%

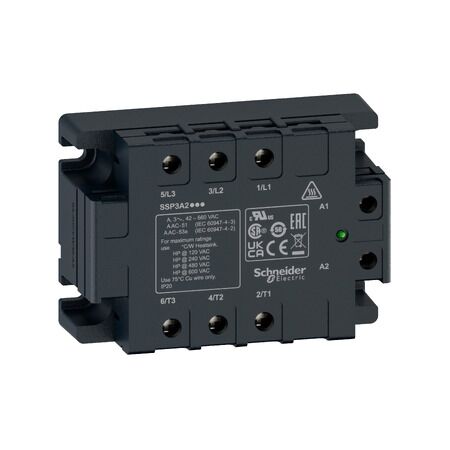

Solid State Relay 50A | Zero Voltage Switching | Panel Mount | Thermal Pad by Clipsal
Solid state relay with 50A capacity and zero voltage switching—ideal for industrial automation and commercial HVAC systems. Built for reliability, with panel mount design and thermal pad for efficient heat dissipation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Harmony Solid State Relays, Solid state relay, 50A, panel mount, zero voltage switching, thermal pad, input 180…280V AC, output 48…530V AC
Brand: Clipsal
SKU: SSP3A250P7T
Alternatively Known As: Solid State Relay, SSR, Panel Mount Relay, 50A Relay
Technical Specifications
- Rated current: 50A
- Input voltage: 180...280V AC
- Output voltage: 48...530V AC
- Insulation resistance: >= 1000 MOhm at 500 V DC
- IP rating: IP20
- Response time: 20 ms (turn-on), 30 ms (turn-off)
- Maximum leakage current: 3 mA off-state
- Surge current: 715 A for 20 ms
- Dielectric strength: 4 kV AC for input/output
- Dimensions (H x L x W): 74.6mm x 41mm x 104mm
- Weight: 0.37 kg
Key Features
- Zero voltage switching for enhanced reliability.
- Panel mount design for easy installation.
- Thermal pad included for efficient heat dissipation.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Automation systems, machinery control
- Commercial: HVAC systems, lighting control
Standards & Compliance
- Complies with IEC/EN 62314 and IEC/EN 60947 standards.
Environmental Benefits
- Packaging made with recycled cardboard.
- Packaging without single use plastic.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Clipsal Harmony Solid State Relay 50A is available now for immediate purchase. Ideal for industrial automation and control applications.
