Solid State Relay 6A | DIN Rail Mount | DC Switching | 4-32V Input by Clipsal
Solid state relay with 6A current and DC switching—ideal for industrial automation and control. Built for easy installation on DIN rails, with LED input status indicator and 4-32V DC control voltage.
Sign in
Please login to continue to your account.

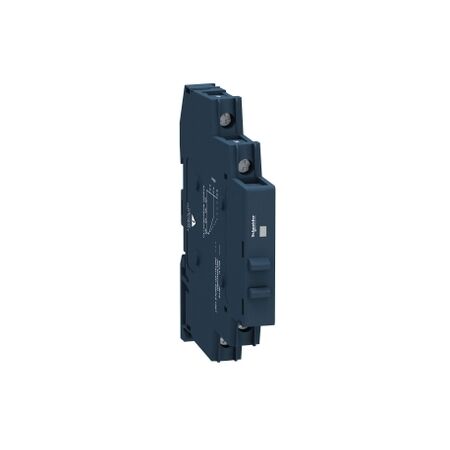

Product Name/Title: Harmony Solid State Relays, Solid state modular relay, 6A, DIN rail mount, DC switching, input 4...32V DC, output 1…60V DC
Brand: Clipsal
SKU: SSM1D26BD
Alternatively Known As: Solid State Relay, Modular Relay, DC Relay
- Rated current: 6A
- Control circuit voltage: 4...32V DC
- Output voltage: 1...60V DC
- Insulation resistance: 1000 MOhm at 500V DC
- Response time: 0.6 ms (turn-on), 0.3 ms (turn-off)
- Surge current: 60A for 10 ms
- Dielectric strength: 4kV DC for input/output
- Pollution degree: 2
- Dimensions (H x L x W): 90.3mm x 83.7mm x 11mm
- Weight: 0.05 kg
- Modular DIN rail relay design for easy installation.
- DC switching capability with a control voltage of 4...32V DC.
- LED indicator for input status.
- Professional installation by a qualified technician is recommended for optimal performance.
- Industrial: Automation systems, machinery control
- Commercial: HVAC systems, lighting control
- Complies with IEC 61000, IEC 62314, IEC 60950-1
- Green Premium product status indicating environmentally friendly design.
1 year warranty against manufacturing defects.
The Clipsal Harmony Solid State Relay is available now for immediate purchase. Ideal for industrial automation and control applications.
