Solid State Relay 6A | DIN Rail Mount | Zero Voltage Switching | 4-32V DC Input by Clipsal
Solid state relay with 6A current and zero voltage switching—ideal for industrial automation and control. Built for reliability, with DIN rail mount and easy screw terminal installation.
Sign in
Please login to continue to your account.

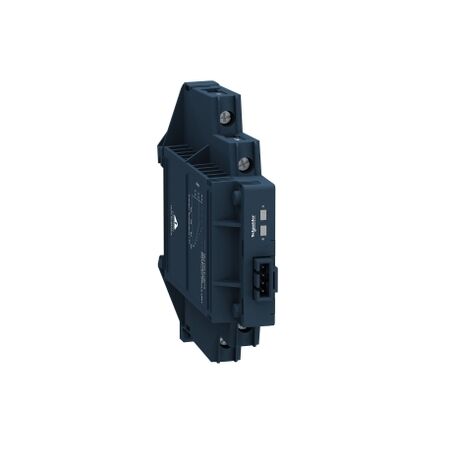

Product Name/Title: Harmony Solid State Relays, Solid state modular relay, 6A, DIN rail mount, zero voltage switching, input 4...32V DC, output 24…280V AC
Brand: Clipsal
SKU: SSM2A16BD
Alternatively Known As: Solid State Relay, Modular Relay, DIN Rail Relay
- Rated current: 6A
- Control circuit voltage: 4...32V DC
- Output voltage: 24...280V AC
- Insulation resistance: 1000 MOhm at 500V DC
- Surge current: 715A for 16.6ms
- Response time: 0.5 cycle (turn-on and turn-off)
- Flame retardance: V0 conforming to UL 94
- Pollution degree: 2
- Dimensions (H x L x W): 90.3mm x 84.4mm x 18mm
- Weight: 0.09 kg
- Zero voltage switching for enhanced reliability.
- Screw terminal connections for easy installation.
- LED indicator for input status.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Automation systems, machinery control
- Commercial: HVAC systems, lighting control
- Complies with IEC 61000, IEC 60950-1, IEC 62314
- Green Premium product status indicating environmentally friendly design.
1 year warranty against manufacturing defects.
The Clipsal Harmony Solid State Relay is available now for immediate purchase. Ideal for industrial automation and control applications.
