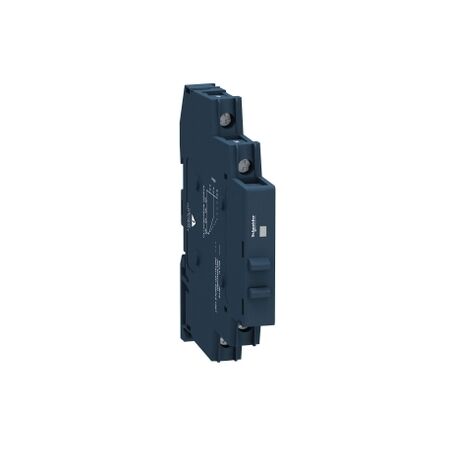

Solid State Relay 6A | DIN Rail Mount | Zero Voltage Switching by Clipsal
Solid state relay with 6A current and zero voltage switching—ideal for industrial automation and control. Built for reliable operation, with easy DIN rail installation and LED input status indicator.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Harmony Solid State Relays, Solid state modular relay, 6A, DIN rail mount, zero voltage switching, input 90…140V AC, output 24...280V AC
Brand: Clipsal
SKU: SSM1A16F7
Alternatively Known As: Solid State Relay, Modular Relay, DIN Rail Relay
Technical Specifications
- Rated current: 6A
- Input voltage: 90...140V AC
- Output voltage: 24...280V AC
- Insulation resistance: 1000 MOhm at 500 V DC
- Control type: without test button
- Surge current: 285 A for 16.6 ms
- Maximum voltage drop: <1.3 V on-state
- Response time: 0.5 cycle (turn-on), 30 ms (turn-off)
- Overvoltage category: III
- Flame retardance: V0 conforming to UL 94
- Dimensions (H x L x W): 90.3mm x 83.7mm x 11mm
- Weight: 0.05 kg
Key Features
- Zero voltage switching for reliable operation.
- DIN rail mount for easy installation.
- LED indicator for input status.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Automation systems, machinery control
- Commercial: HVAC systems, lighting control
Standards & Compliance
- Complies with IEC 61000, IEC 62314, IEC 60950-1
Environmental Benefits
- Green Premium product with sustainable packaging.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Clipsal Harmony Solid State Relay is available now for immediate purchase. Ideal for industrial automation and control applications.
